8
WARNING
IMPROPER CLUTCH COVER ASSEMBLY CAN RE-
SULT IN SERIOUS INJURY, AND WILL CAUSE SE-
VERE SAW DAMAGE IF UNIT IS STARTED. NEVER
START OR OPERATE SAW IF BRAKE BAND IS NOT
IN PLACE ON CLUTCH DRUM. ALWAYS CHECK
CHAIN BRAKE OPERATION AFTER REPLACING
COVER. DO NOT USE SAW IF CHAIN BRAKE DOES
NOT FUNCTION PROPERLY.
p
RepaRation foR
u
se
H
I
J
7. Turn saw over and check brake band for correct
position around clutch drum. If brake band is not
in place around drum, remove clutch cover, make
sure brake is released, and reinstall.
CAUTION!
• When starting, idling adjustment speed should be adjusted not to rotate the saw chain.
• When there is trouble with the carburetor, refer to your distributor or dealer.
kiCk guaRD
®
to baR instRuCtions

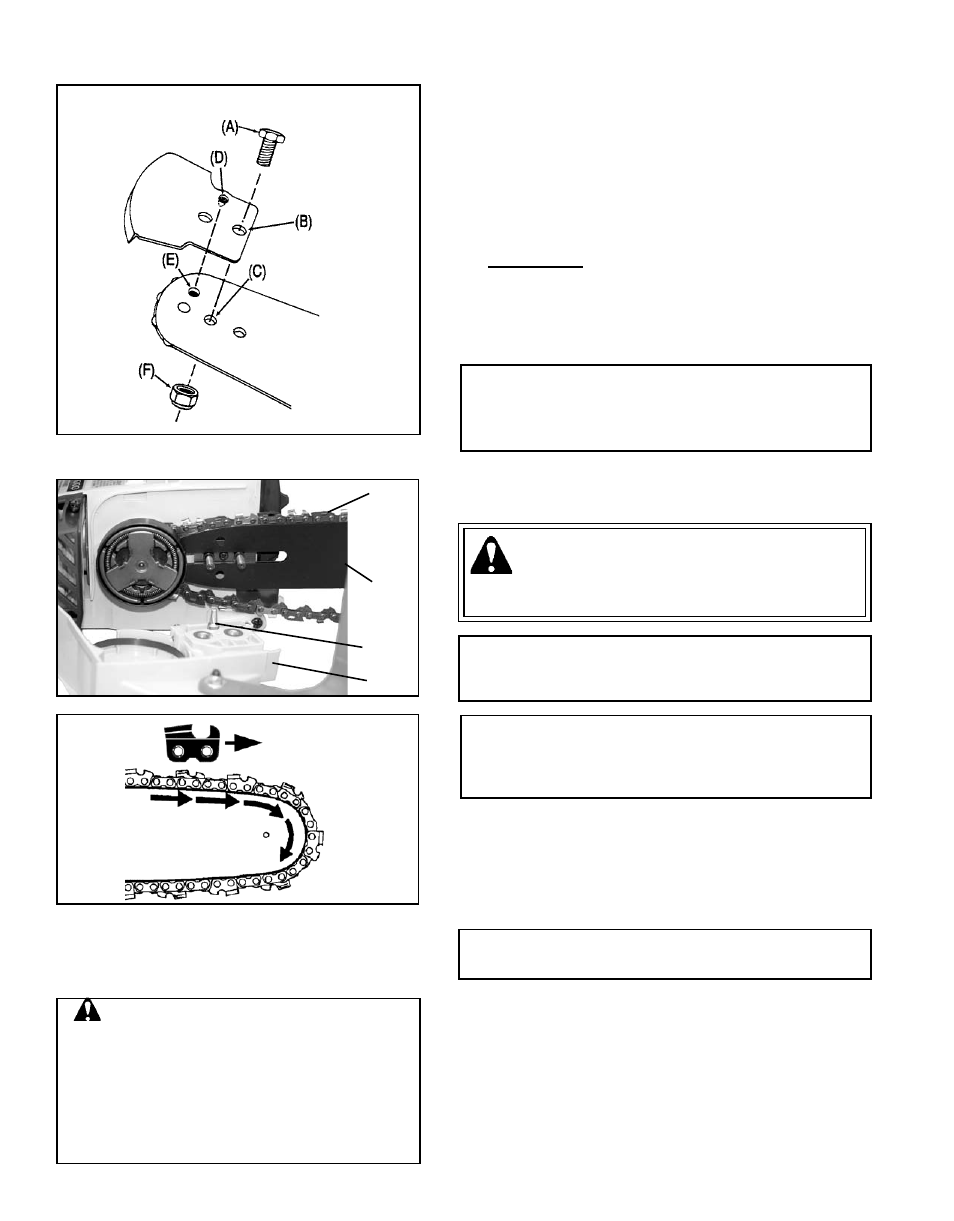

For saws with Kick Guard ® P/N 2894901 and symmetri-
cal or asymmetrical low-kick type guide bars.
1. Install bolt (A) in rear hole (B) of Kick Guard ® and
through front hole (C) in guide bar.
2. IMPORTANT: Dimple in Kick Guard ® (D) must engage
recess in guide bar (E).
3. Tighten nut (F) and bolt (A) until snug. Make certain
Kick Guard ® is flush against guide bar.
NOTE
The machine may be delivered with guide bar, tip
guard, and saw chain separated. Install guide bar, tip
guard, and saw chain as follows.
guiDe baR anD saw Chain
-
install
/
Remove
WARNING
Saw Chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
NOTE
Move chain brake lever fully rearward to remove or install
clutch cover to saw.
IMPORTANT
Always loosen guide bar nuts before turning chain
tension adjuster, otherwise clutch cover and tensioner
will be damaged.
1. Remove spark plug lead.
2. Remove two guide bar nuts and remove guide bar cover.
Turn tension adjustment screw counterclockwise 2 to 3
turns if bar and chain are installed.
3. Remove guide bar and saw chain if necessary.
NOTE: See “MAINTENANCE AND CARE” instructions
for guide bar, sprocket, and saw chain maintenance.
4. Mount guide bar (G) on studs, and slide toward sprocket
to make saw chain installation easier.
5. Install saw chain (H) as shown, with cutters on top of
guide bar facing forward.
6. Align holes of clutch cover (J) with guide bar studs,
and tensioner pin (I) with lower guide bar adjuster hole.
G
