18" Wall-Mount 48" Canopy Vent Hood Specifications
•
Product Weight – 103 Lbs.
•
Wall-Mount Installation – can be ducted vertically or horizontally.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.4 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 12 Amps
•
Always consult local and /or national electric codes. Check local
building codes for installation requirements, as they may vary per locale.
•
Vent unit outside of building only.
•
Vertical Exhaust Duct Required – 10" round
•
Horizontal Exhaust Ducts Required – Dual 3-1/4" x 10"
•
Thermal breaks such as short section of nonmetallic duct,
should be used in areas of extreme cold.
•
For most efficient airflow exhaust, use a straight run or as
few elbows as possible.
•
Use metallic flex ducting only to connect rigid duct directly to
transitions (if allowed by code).
•
Cold weather installations should have additional backdraft
damper installed.
•
For most efficient operation, position hood low to cooktop.
Recommended installation is 30" - 36" above countertop.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
18"- High Vent Duct Cover – (PN # ACCVC18-48).
•
12"- High Vent Duct Cover – (PN # ACCVC12-48).
•
6"- High Vent Duct Cover – (PN # ACCVC06-48).
Wall-Mount Canopy Vent Hood
E488WV120S
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway
•
Augusta, GA 30907
•
1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
electroluxicon.ca
E488WV120S 01/09
© 2009 Electrolux Home Products, Inc.
Printed in the U.S.A.
Electrical Location
Top
14
7
/
16
"
1
1
/
2
"
2 -
7
/
8
"
holes
1
1
/
2
"
4"
Rear
2 - 3
1
/
4
" x 10" Ducts
Equal
Equal
6"
6"
Horizontal
Vertical
Top
6
1
/
8
"
Equal
Equal
1 - 10" Round Duct Collar
48"
30" min. from
cooktop surface to
bottom of hood
13"
max.
cabinet
depth

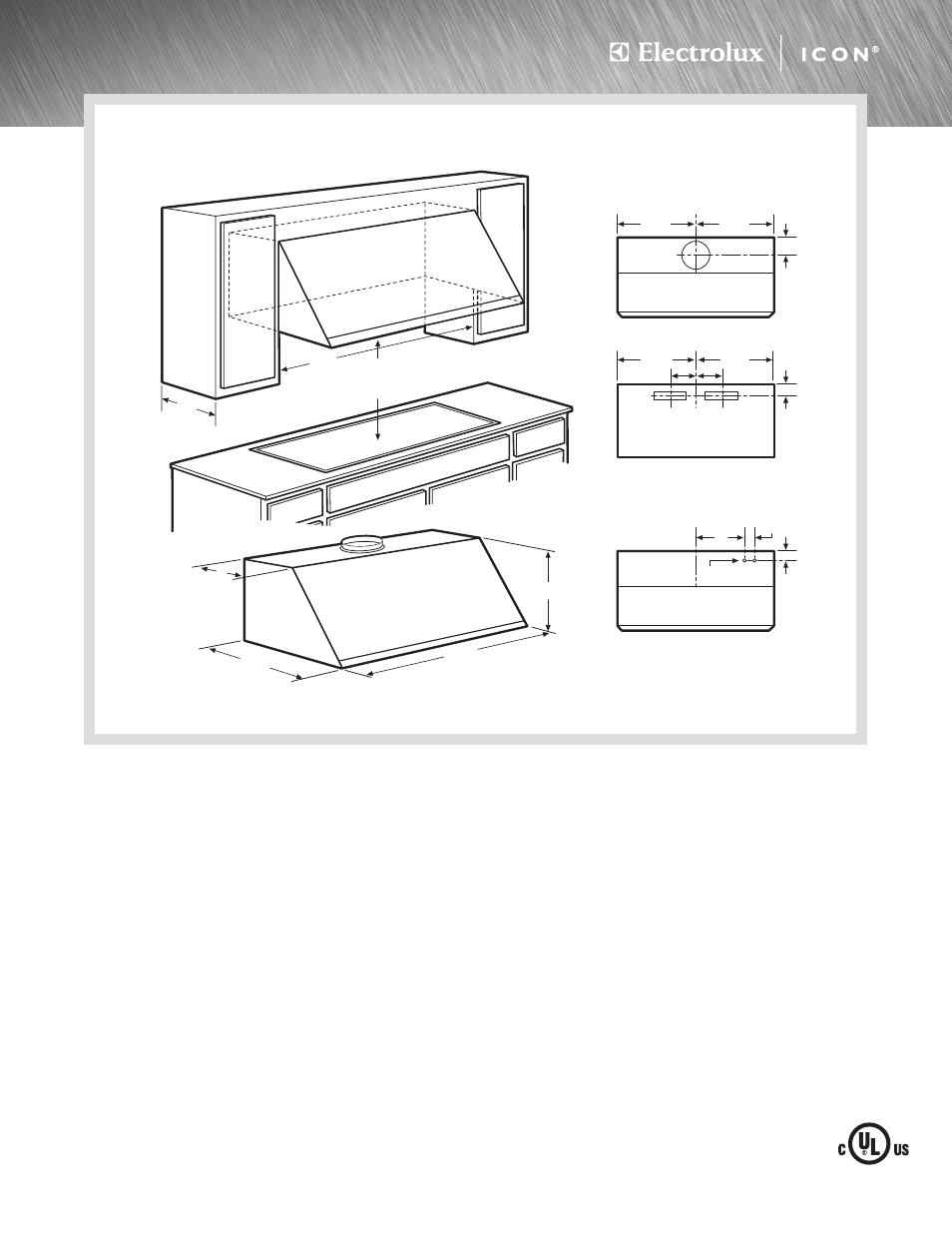

Vertical & Horizontal
Exhaust Duct Location
18"
11
7
/
8
"
47
7
/
8
"
26
7
/
8
"
