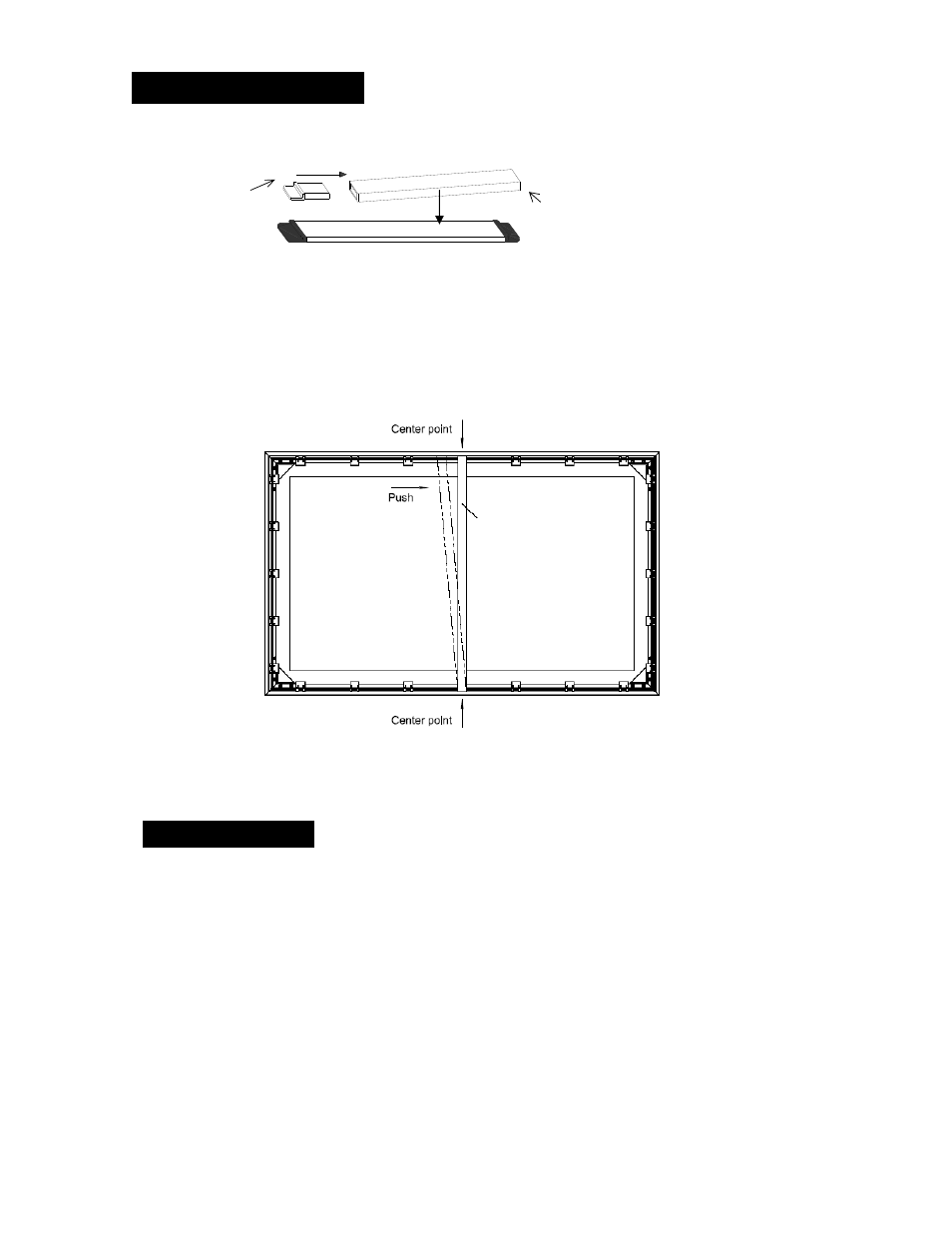

Center Support Bar d
1.
Insert the support joiner into each side of the center support bar to complete assembly.
support joiner
Center support bar
2. Insert the Center Support Bar into the groove on the back of the frame with the bottom
end near the approximate center point of the frame and place it in at an angle so that both ends
of the bar are in alignment with the groove as show below.
3.
Slide the top end of the bar into the top center point location to complete center support
bar installation. This will provide added stability to your frame and added tension to the
material.
INSTALLATION
1. Locate your desired installation location with a stud finder (recommended) and mark the
drill‐hole area of where the screen is to be installed.
2. Drill a hole with the proper bit size according to the wood screws included.
3. Line up the small wall brackets with the drilled holes on the installation location and
screw them in using a Philips screwdriver.
4. Position the fixed frame screen onto the top wall brackets as shown in fig. 1 and push
down at the center of the bottom frame rail to hook into the lower wall bracket.
Center Support Bar
