R-5010 5

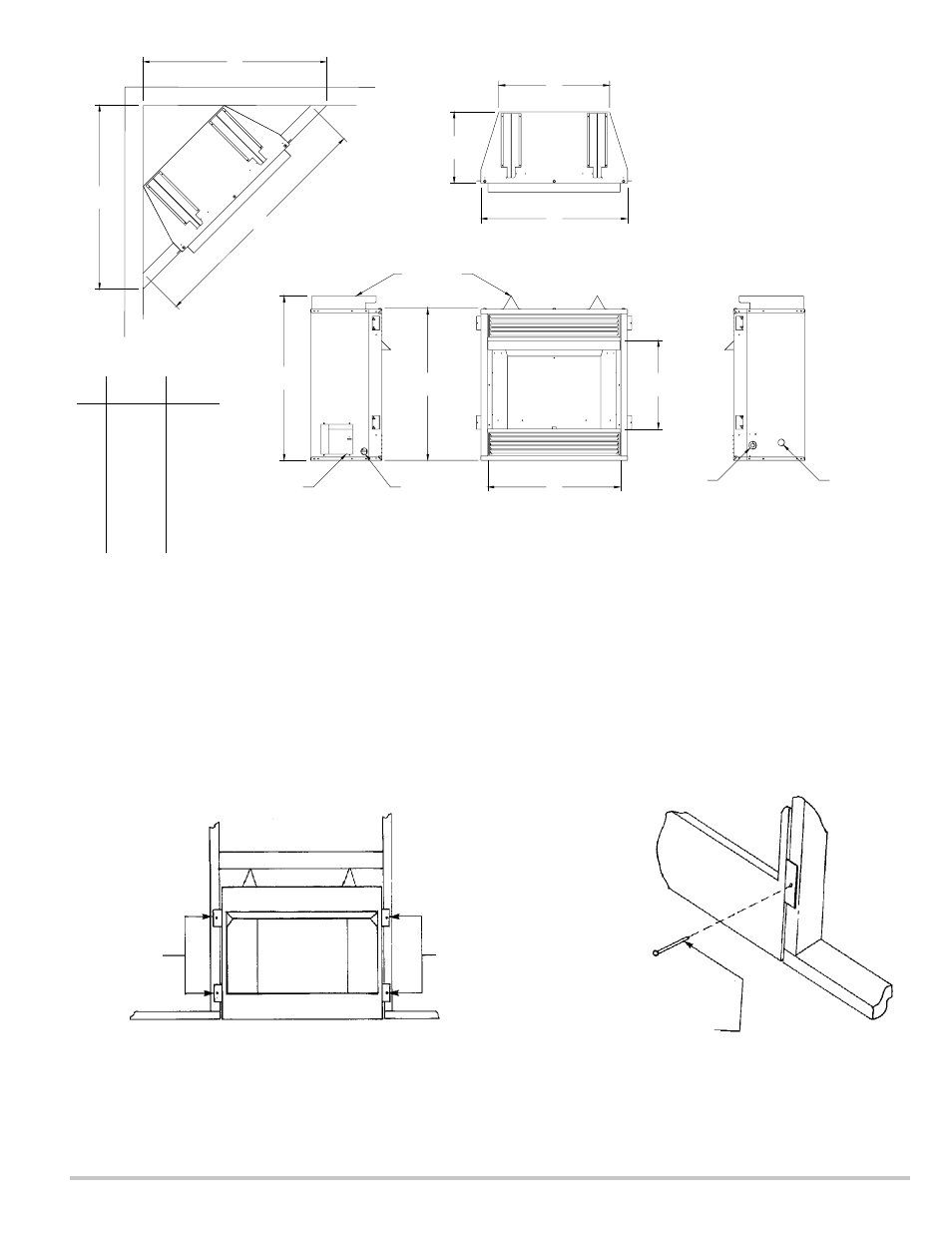

Fig. 3. Fireplace dimensions.
C-2. LOCATING FIREPLACE.
Place fireplace in framing opening.
Using the four (4) nailing tabs provided on the fireplace, attach two (2) tabs on each side. Attach tabs through prepunched
holes. Additional hole locations will be used for different finishing material with thicknesses of 1/2”, 5/8” and 3/4”. Attach
these materials with screws provided, two (2) per nailing tab.
Nailing tabs should fit directly against framing material. Use at least one (1) nail per tab to secure in place.
Fig. 4. Fasten fireplace in place with tabs.
NAIL OR OTHER
SUITABLE
FASTENER
NAIL SIDE
THROUGH
FASTENING
TABS NAIL SIDE
THROUGH
FASTENING
TABS
GAS LINE
OPENING
ELECTRICAL
CONNECTION
OPENING
STANDOFF
GAS LINE
OPENING
45"
42
D
36
39"
41"
38"
24"
42"
24"
56 3/4"
80 3/8"
56 3/4"
J
H
I
G
F
M
L
K
39"
70 1/4"
49 3/4"
49 3/4"
22"
36"
36"
21"
32" 27 3/4" E
FRESH AIR
SYSTEM INTAKE
E
H
L
J
I
M
K
D
G
F
