1.) DBBS (Bass Boost) ON/OFF Switch - Switch On to increase bass response.

2.) VOLUME (+ / – ) Buttons – Raises or lowers the volume.

3.) PHONES (Headphone) Jack – Connect stereo headphones, included, to this

jack.

4.) LINE OUT Jack – To connect this CD player to an external amplifier or recording

device. Connection cable not included.

5.) STOP Button – To stop playback, and to turn the power ‘Off’.

6.) ASP (Anti-Skip Protection) Button – Turns Anti-Skip system ‘On’ or ‘Off’.

7.) PROG (Program) Button – To program tracks in the CD memory.

8.) LCD Display – Shows Track number, Playing time, Joggable status, Battery

Status, Program, Repeat, Random, and Intro modes.

9.) DC IN 4.5V Input Jack – Connect an AC adapter (not included) to this jack to

use 120V 60 Hz house current.

10.) Battery Compartment (on bottom cabinet).

11.) MODE Button – Selects the playback mode: Repeat 1/All, Random, or Intro.

12.) PLAY/PAUSE

Button – To begin playback, and to pause during playback.

13.) SKIP

Button – To skip tracks or search forward.

14.) SKIP

Button – To skip tracks or search backward.

15.) CD Door.

16.) OPEN Switch – Slide to the right to unlock and open the CD door.

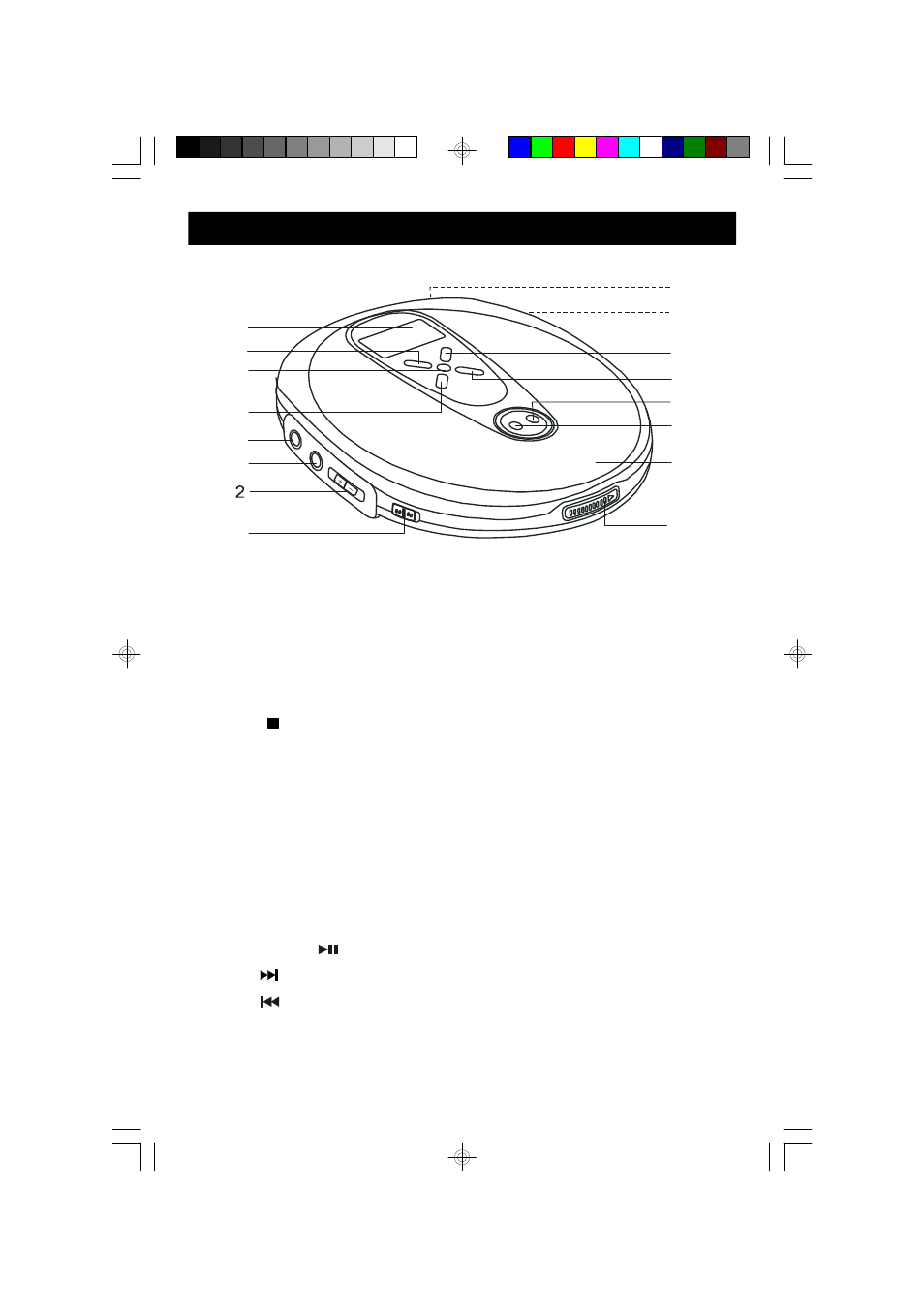

LOCATION OF CONTROLS AND INDICATORS

1

3

4

5

6

7

8

9

10

11

12

15

16

13

14
