Tigris Specifications
16.3”/415mm
44.3”/1
125mm
19.2”/487mm
2.1”
54mm
51.25”/1302mm
46.4”/1
179mm
10.8”/275mm
6.3”/160mm
8.4”/214mm
9.5”/241mm
19.2”/487mm
Tigris Specifications
25Hz-40KHz
87dB+/-3dB
4 Ohms
350Hz, 3.2KHz, 10KHz
100WRMS and up to 500WRMS
51.25in/1302mm
10.8in/275mm
19.2in/487mm
89.3lbs/40.5kgs
Fine high gloss 3mm black lacquer paint
Frequency:
Sensitivity:
Nominal Impedance:
Crossover frequency:
Recommended amplifier power:
Dimensions
Height:
Width:
Depth:
Net weight:
Available finish:

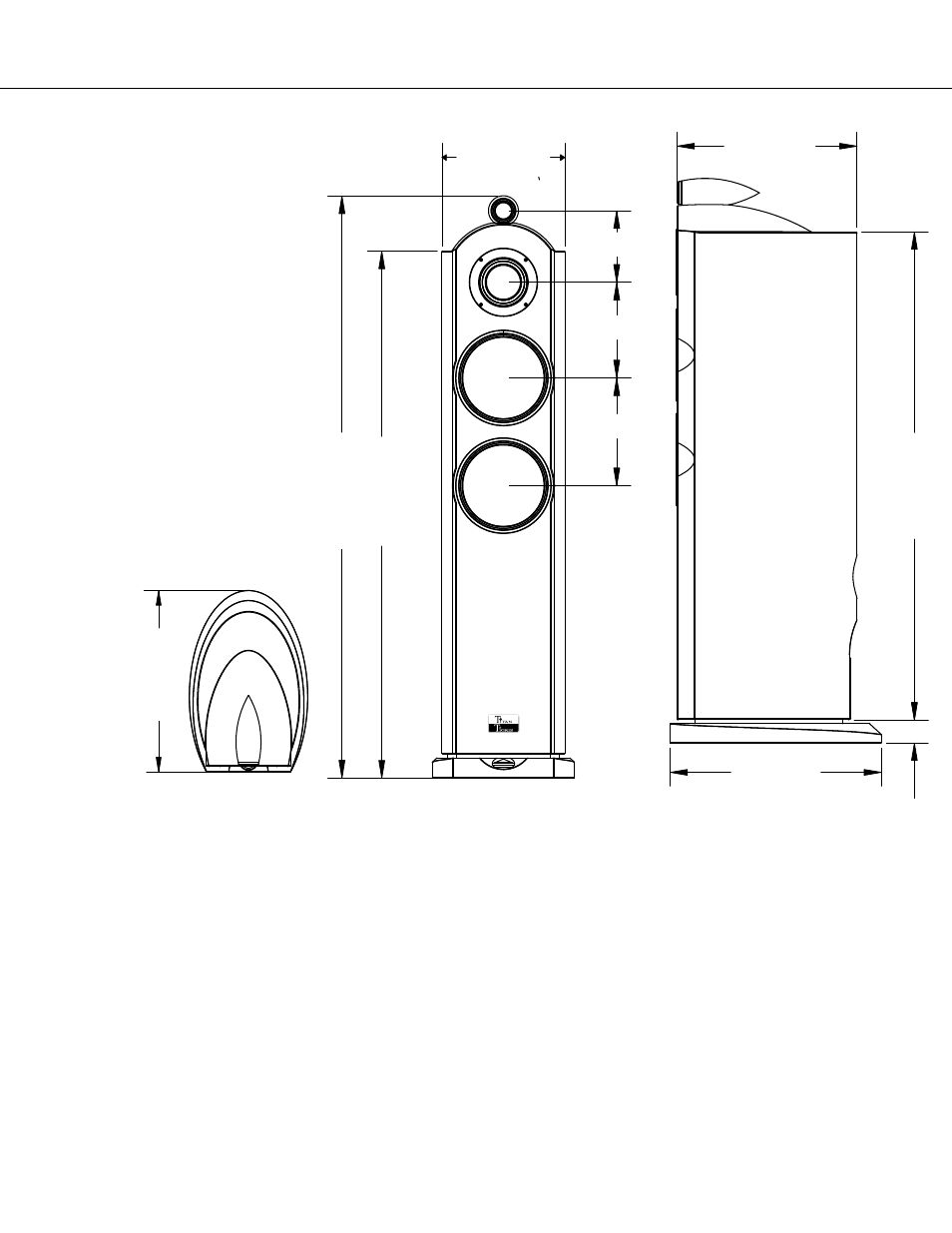

side view front view
top view
Tigris Manual 7 Earthquake Sound Corp. | (800) 576-7944 | www.earthquakesound.com
back view
Power: 600W
4 Ohm Impedance:
25Hz-40kHz Frequency Response:
87dB/1m/2.83V Sensitivity:
S/N:
EARTHQUAKE SOUND U.S.A
www.earthquakesound.com
LO
HI
Power: 600W
4 Ohm Impedance:
25Hz-40kHz Frequency Response:
87dB/1m/2.83V Sensitivity:
S/N:
EARTHQUAKE SOUND U.S.A
www.earthquakesound.com
LO
HI
Amplifier Set-up Options
Single Amp. Option
Bi-Amp. Option
The Tigris is designed to accept two
separate Amplifier/Power Sources.
For a Bi-Amplifier option, take off
t h e g o l d b r i d g i n g b a r s b y
unscrewing terminals. Connect the
terminals to Amplifiers as shown
right. Be sure to tighten terminals
after bridging bars are off.
Amplifier/
Power Source
Amplifier/
Power Source
For one Amplifier/Power Source per
system or per tower, leave the gold
bridging bars on. Connect to the
Amplifier/Power Source from either
the high or the low terminals.
