EarthQuake T-693X - Manual

TNT - T693 Specifications and Installation
! Low mass poly injection cone
body that delivers precision
sound quality
! High flow ventilation stamped
steel basket design
! Large butyl rubber surround
for more accurate bass
! NOMEX / ROMEX spider
assembly for linear cone
travel and durability
! Shallow mount design for
American or foreign cars and
trucks
! 2” (66mm) mylar mid-range
and over 1” (30mm) mylar
super tweeter both of which
deliver an exceptionally high
frequency for all ranges of
music.
FEATURES
Diameter (inches)
Diameter (mm)
Description
Impedance
Frequency Response
Sensitivity
Power Handling
SPECIFICATIONS
Model T693
6" x 9”
152.4mm x 228.6mm
3-Way
4-Ohm
20Hz - 22kHz
90dB
600 Watts
Grilles
Mounting Diameter (inches)
Mounting Diameter (mm)
Mounting Depth (inches)
Mounting Depth (mm)
INSTALLATION
Yes
5-19/20" x 8-7/10"
151mm x 220mm
3-6/16"
86mm
220mm x 151mm - 5-19/20" x 8-7/10"
236mm - 9-3/10”
95mm - 3-3/4”
86mm - 3-6/16”
108mm - 4-1/4”

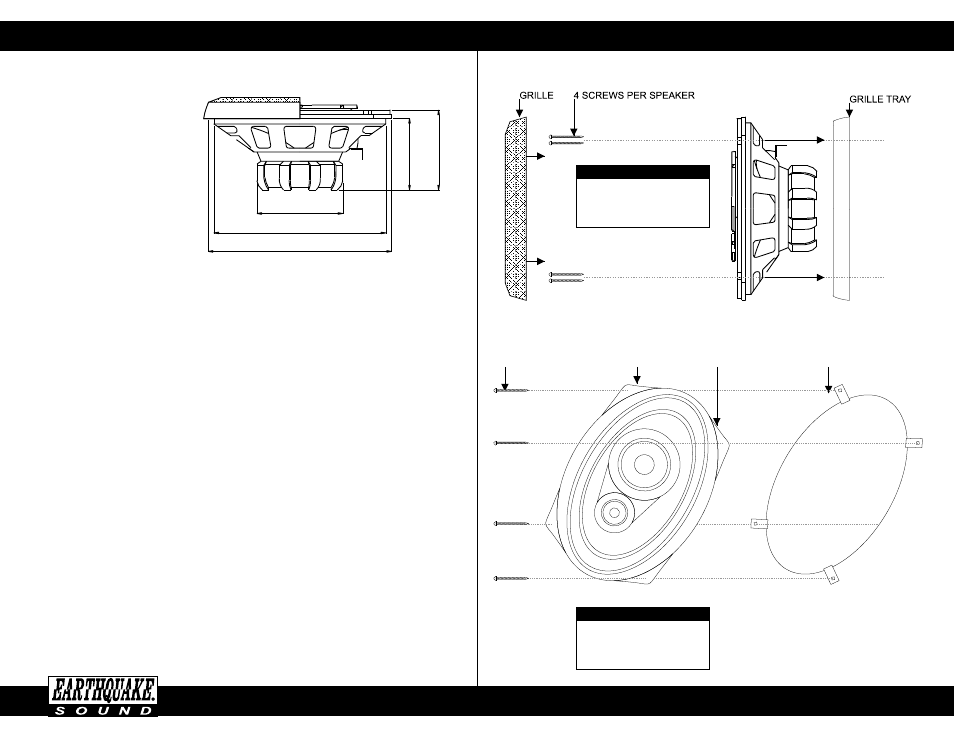

FACTORY REPLACEMENT INSTALLATION
NOTE:
Hand tighten the screws
in a crisscross pattern to
avoid bending the speaker
basket or stripping screws.
NOTE:
Hand tighten the screws
in a crisscross pattern to
avoid bending the speaker
basket or stripping screws.
CUSTOM SPEAKER INSTALLATION
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. www.earthquakesound.com
Sound That Will Move You
4 SCREWS PER SPEAKER SPEAKER MOUNTING CLIPS FACTORY CUTOUT
