Installation
8

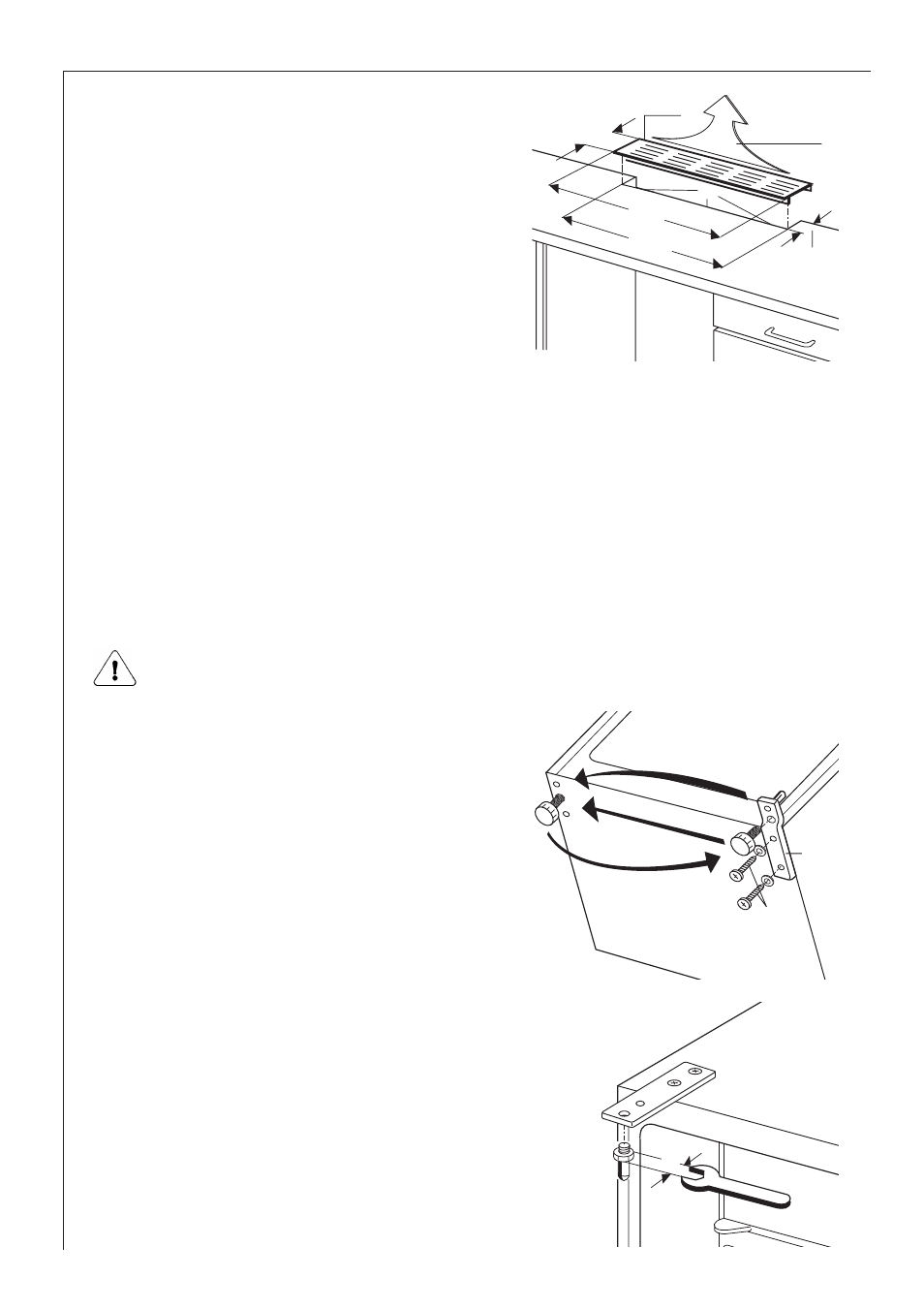

If your refrigerator is installed under
a continuous worktop, an air outlet
opening of at least 200 cm
2 and a
ventilation grille (A/B) matching the
worktop design should be installed at
the rear of the worktop.
The cut surfaces of the worktop (C)
should be varnished to avoid swelling
due to penetration of moisture.
The appliance wall distance must be
at least 30 mm and should be
checked before the ventilation grille is inserted.
Special accessories:
A Ventilation grille, brown
B Ventilation grille, white
AEG36
A/B
200 cm
2 105
C
570
550
93-103
Reversing the door
The side at which the door opens can be changed from the right side
(as supplied) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appli-
ance must not be connected to the mains. Remove plug from the
mains beforehand.
☞
1. Tilt the appliance slightly towards the
rear and prop it securely.
2. Unscrew the door hinge screws (K)
and remove the hinge pin bracket (1).
3. Open the door a little way and take it
out downwards.
4. Unscrew the upper pin (A) and screw
it into place on the opposite side.
5. Fit the door into the upper pin (A) and
close it.
6. Screw the hinge pin bracket (1)
securely into place on the opposite
side using the screws (K).
AEG97
K
1
AEG98
A
12
