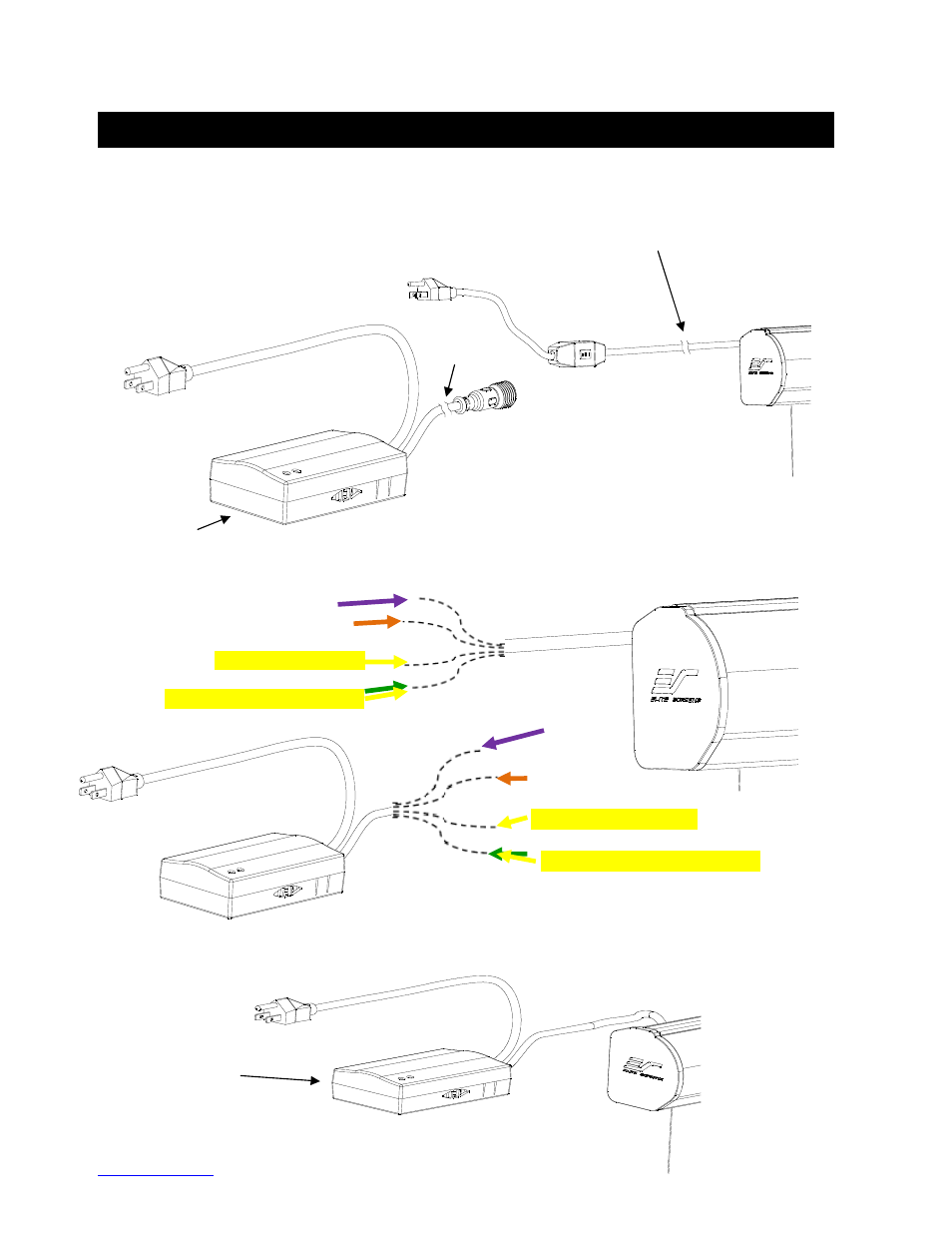

ZPM-RT Installation & Control Instructions 2
1
Please consult a professonial installer for this procedure. Elite Screens is not responsible for faulty installations.
1.
Cut the cable of both the Wall Box (G) and the attached Control Switch to expose the wires.
Cut Cable
Cut Cable
Wall Box (G)
2.
Connect the wires from the screen to the Wall box (G) according to their specific color.
Purple Wire = Up
Orange Wire = Down
Yellow Wire = Common
Yellow & Green Wire = Ground
Purple Wire = Up
Orange Wire = Down
Yellow Wire = Common
Yellow & Green Wire = Ground
3.
The Wall Box (G) should be connected to your screen as shown below.
Wall Box (G)
