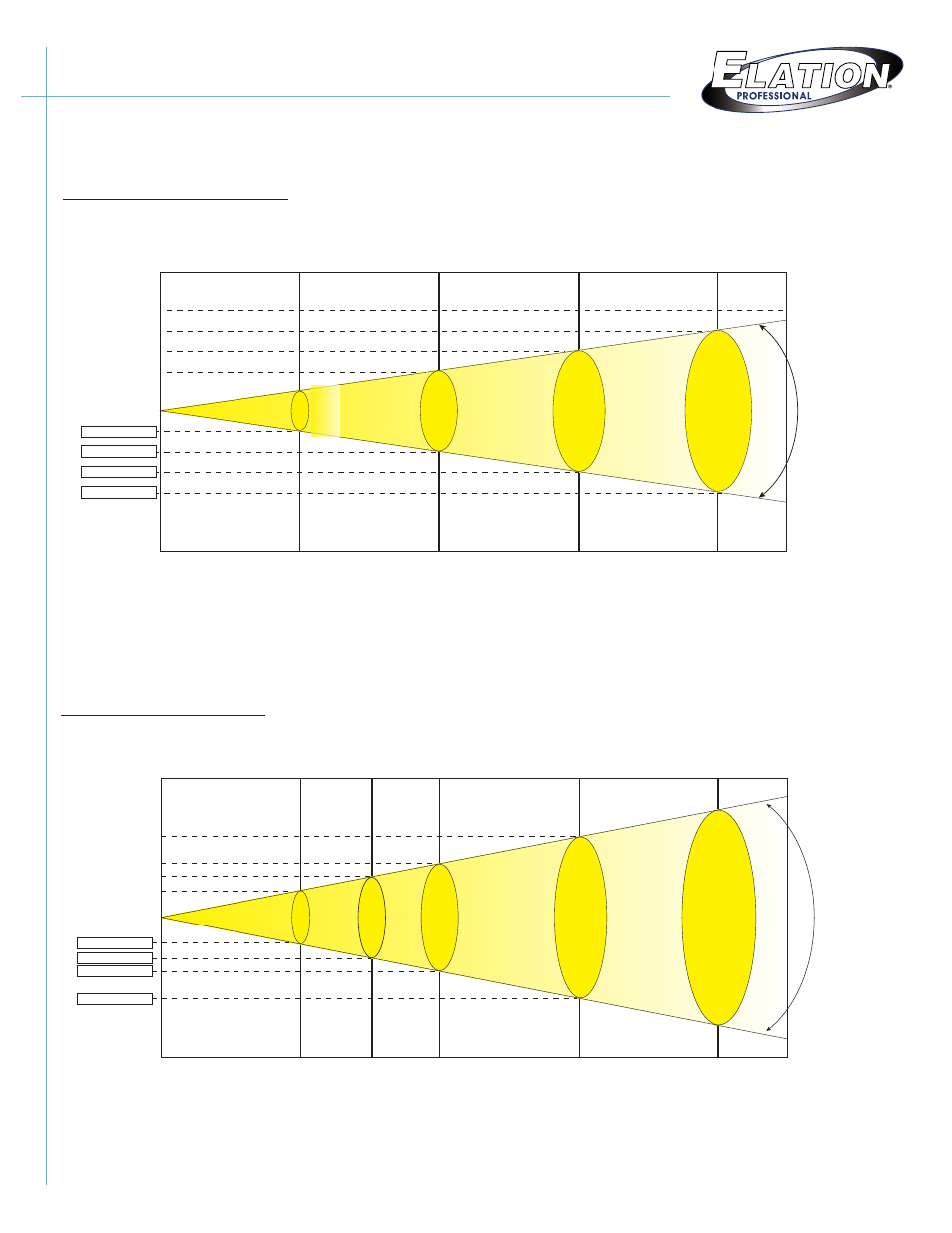

PHOTOMETRICS
Design Spot 1400E
Photometric Beam Angle Data
Minimum Beam Angle 12°
LUX x 0.0929 = FC
Design Spot 1400E
Photometric Beam Angle Data
Minimum Beam Angle With Frost 16°
LUX x 0.0929 = FC
12°
Beam Angle
1,615 FC
17,384 LUX
710 FC
7,645 LUX
412 FC
4,436 LUX
183 FC
1,974 LUX
0 m
0 ft
5 m
16.4 ft
7.5 m
26.6 ft
15 m
49.2 ft
10 m
32.8 ft
Ø 3.30 m Ø 10.82 ft
Beam Diameter
Ø 1.10 m Ø 3.61 ft Ø 1.65 m Ø 5.41 ft Ø 2.20 m Ø 7.22 ft
Ø 1.65m / Ø 5.41ft
Ø 2.2m / Ø 7.22ft
Ø 3.3m / Ø 10.82ft
Ø 1.1m / Ø 3.61ft
16°
Beam Angle
400 FC
4,302 LUX
119 FC
1,281 LUX
65 FC
698 LUX
37 FC
400 LUX
0 m
0 ft
5 m
16.4 ft
15 m
49.2 ft
20 m
65.6 ft
10 m
32.8 ft
Ø 5.60 m Ø 18.37 ft
Beam Diameter
Ø 1.40 m Ø 4.60 ft Ø 2.80 m Ø 9.19 ft Ø 4.20 m Ø 13.78 ft
Ø 2.8m / Ø 9.19ft
Ø 4.2m / Ø 13.78ft
Ø 5.6m / Ø 18.37ft
Ø 1.4m / Ø 4.6ft
Design Spot 1400E
Photometric Beam Angle Data
Maximum Beam Angle 32°
LUX x 0.0929 = FC
Design Spot 1400E
Photometric Beam Angle Data
Maximum Beam Angle With Frost 42°
LUX x 0.0929 = FC
42°
Beam Angle
77 FC
828 LUX
28 FC
297 LUX
16 FC
125 LUX
7 FC
73 LUX
Ø 3.8 m Ø 12.5 ft Ø 7.6 m Ø 25.0 ft Ø 11.4 m Ø 37.4 ft Ø 15.2 m Ø 50.0 ft
Beam Diameter
Ø 7.6m / Ø 25.0ft
Ø 15.2m / Ø 50.0ft
Ø 11.4m / Ø 37.4ft
Ø 3.8m / Ø 12.5ft
0 m
0 ft
5 m
16.4 ft
7.5 m
24.6 ft
15 m
49.2 ft
20 m
65.6 ft
10 m
32.8 ft
0 m
0 ft
5 m
16.4 ft
15 m
49.2 ft
20 m
65.6 ft
10 m
32.8 ft
32°
Beam Angle
Ø 2.88 m Ø 9.45 ft Ø 4.34 m Ø 14.2 ft Ø 5.76 m Ø 18.9 ft Ø 8.68 m Ø 28.5 ft
Beam Diameter
Ø 5.76m / Ø 18.9ft
Ø 8.68m / Ø 28.5ft
Ø 2.88m / Ø 9.45ft
Ø 4.34m / Ø 14.2ft
232 FC
2,493 LUX
112 FC
1,204 LUX
72 FC
776 LUX
39 FC
416 LUX
