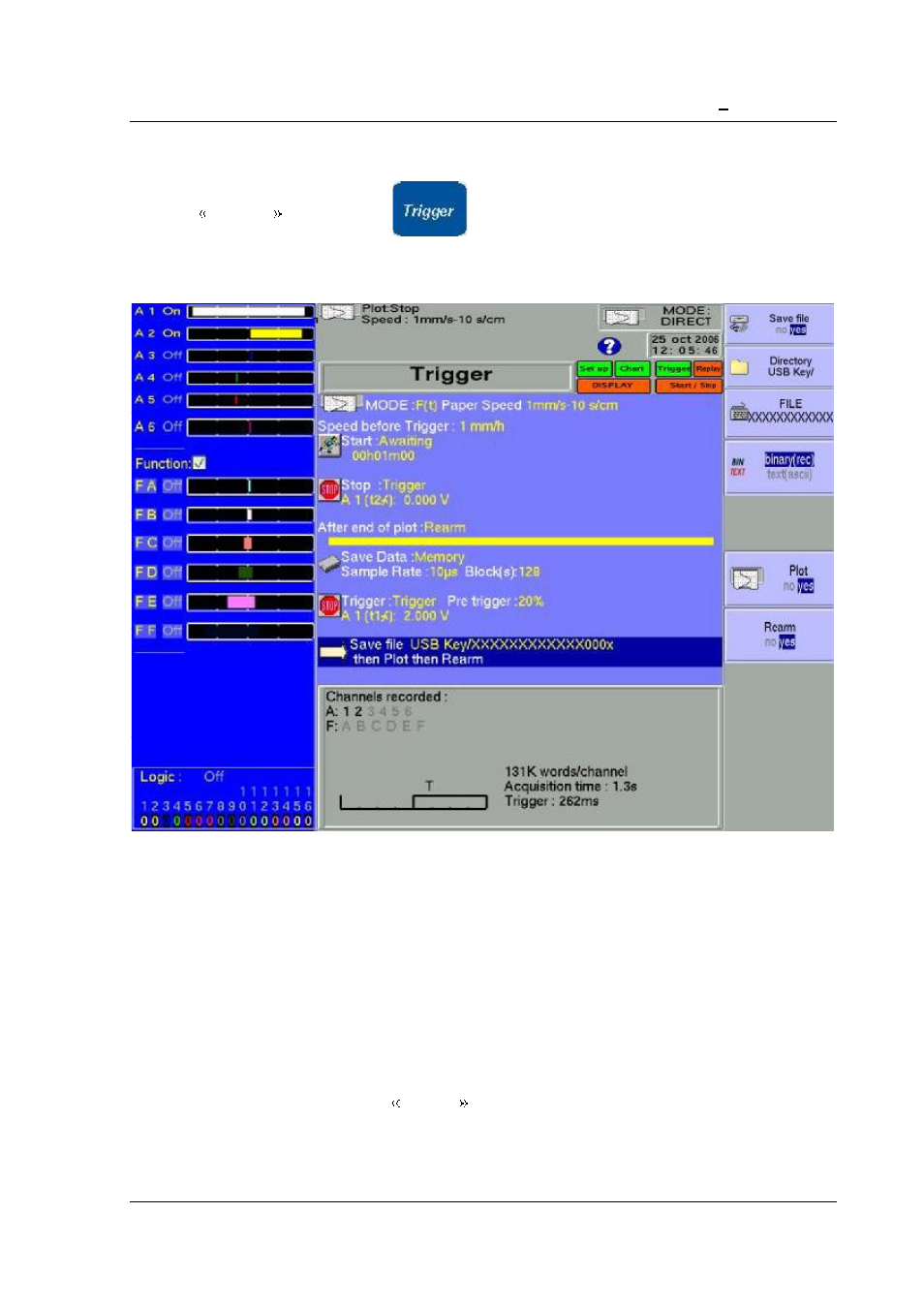

8.2. Triggering plotting
Press the Trigger key.
Programming the start and stop conditions of the plotting.
Selection of the actions after the plotting and validation of the saving in real time.
Mode: selection if the printing mode
-
F(t): printing a graph versus the time
-
Numeric: printing digital values of the measurements in a table
Paper speed: printing speed
-
internally rated feed from 1 mm/h up to 200 mm/s
-
externally rated feed through the logical channel 16
Speed before Trigger: printing speed before the start trigger; possible if the start trigger
is not Manual
Start: condition for starting the plotting
-
Manual: with the Record key
-
Trigger: with an association of the analogical or logical channels
see Chapter 6 Trigger
-
Wait for: after a delay or at a precise date and time
