Example Minimum (8,10,12 & 15" Models) Sealed Designs SWS-6.5 Recommended Applications
SWS-8/8Xi
SWS-8/8Xi
SWS-10X
SWS-10X
SWS-12X
SWS-12X
SWS-15X
SWS-15X
Maximum:
Minimum:
Minimum:
Maximum:
Minimum:
Maximum:
Minimum:
Maximum:
0.19cu.ft. (5.44Ltr)
0.60cu.ft. (16.99Ltr)
0.38cu.ft. (10.76Ltr)
0.75cu.ft. (21.23Ltr)
0.56cu.ft. (15.85Ltr)
1.25cu.ft. (35.39Ltr)
1.20cu.ft. (33.98Ltr)
2.5cu.ft. (70.79Ltr)
The SWS 6.5 woofer is designed to replace any stock / factory installed 6.5" driver. It
brings bass virtually anywhere in a car: in front doors, rear doors, dash board, center
console, under seats, rear decks, and in any space less than 2" deep.
Recommended Sealed Internal Volume (8,10,12 & 15" Models)
One Subwoofer
SWS subwoofers will handle crazy amounts of power in any of the recommended enclosures,
minimum or maximum. The compact enclosures are best for use in limited-space applications.
The larger recommended enclosures will deliver a bit more bass at the lowest
frequencies ranges.
Our Examples and Reccomendations Are Calculated Assuming That 3/4" MDF Is Being Used
In some cases when the enclosure will be placed with
the sub facing down or the sub butted up against the back
of seat. You will need to either add a grille or use 1" strips of
your MDF and place as shown above. This will create an
excursion cushion so that it doesn't rub or get damaged.
3/4"
MDF

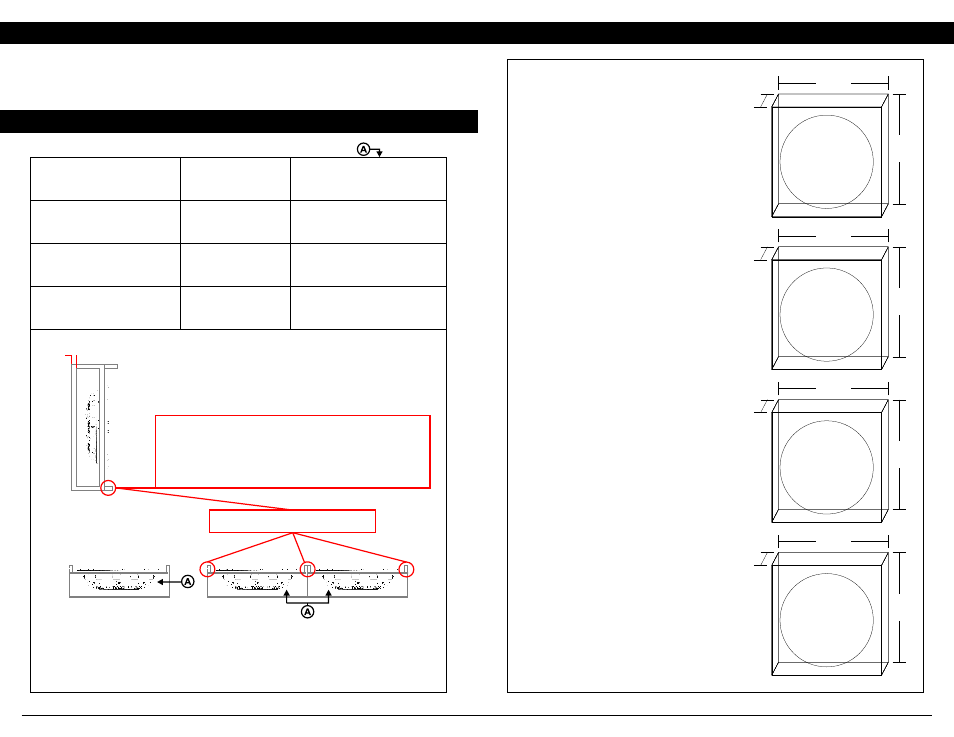

External Dimensions: x 11-1/2" x
Internal Dimensions: 10" x 9" x 3-1/2"
Internal Volume: 0.19cu.ft. (5.44Ltr.)
11" 5"
11-1/2"
5"
11"
SWS-8/8Xi Minimum Sealed Example
External Dimensions:
Internal Dimensions: 12" x 16" x 4"
Internal Volume: 0.38cu.ft. (10.76Ltr.) 12" x 17-1/2" x 5.5"
17-1/2"
5-1/2"
12"
SWS-10X Minimum Sealed Example
External Dimensions: x x
Internal Dimensions: 16" x 20" x 6-1/2"
Internal Volume: 1.20cu.ft. (33.98Ltr.)
17-1/2" 21-1/2" 8"
21-1/2"
8"
17-1/2"
SWS-15X Minimum Sealed Example
External Dimensions: x x
Internal Dimensions: 13-1/2" x 18" x 4"
Internal Volume: 0.56cu.ft. (15.85Ltr.)
15" 19-1/2" 5-1/2"
19-1/2"
5-1/2"
15"
SWS-12X Minimum Sealed Example
1" - 1.5" Depending On The Woofer
Two Subwoofers
