The Extron MTP T 15HD A Series transmitters send high resolution video and mono audio signals long distances to a compatible MTP receiver over a single CAT 5-type
twisted pair cable.
COMMON FEATURES:
• Compatible with high resolution video up to 1920x1200, including HDTV
• Pre-peaking circuit for optimizing video signal on long cable runs
• Buffered local monitor output
• LED power indicator on front panel

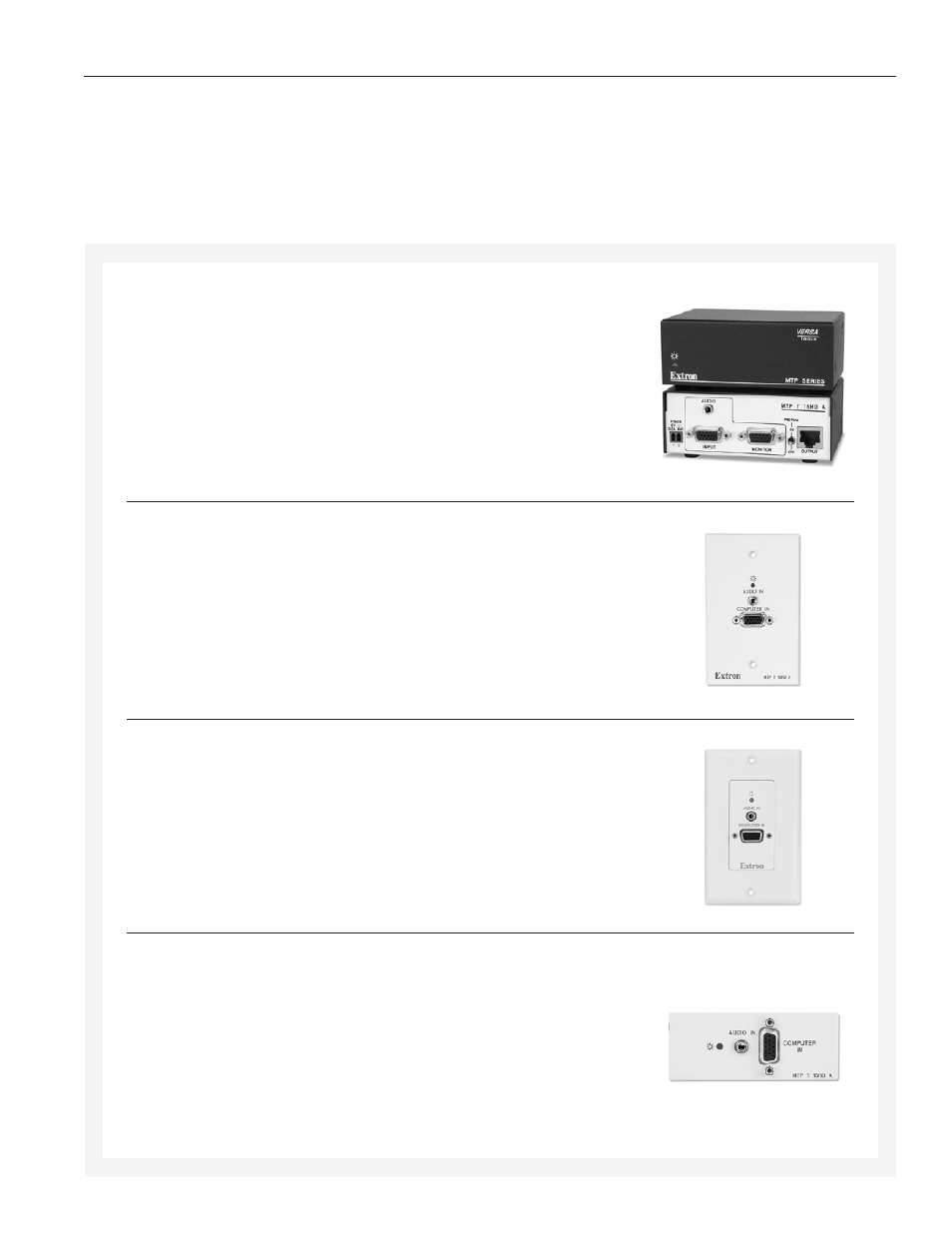

Mtp 15Hd a series transMitters
MTP T 15HD A
Mini Twisted Pair Transmitter for VGA and Audio
UNIQUE FEATURES
• Input: Female VGA connector for video and 3.5 mm stereo mini jack for audio
• Output: Female RJ-45 connector
• Rack-mountable, 1U, quarter-rack width, metal enclosure
• MTP C7 T 15HD A model is for use with CAT 7 cable only and requires C7 receiver
Model Version Description Part Number
MTP T 15HD A Transmitter 60-669-01
MTP C7 T 15HD A CAT 7 Transmitter 60-669-02
MTP T 15HD A WM
Mini Twisted Pair Transmitter for VGA and Audio - Wallplate Version
UNIQUE FEATURES
• Input: Female VGA connector for video and 3.5 mm stereo mini jack for audio
• Output: Female RJ-45 connector on 3” (8 cm) pigtail
• Mounts in an Extron MR 100 one-gang mud ring or standard one-gang electrical box
Model Version Description Part Number
MTP T 15HD A WM One-Gang Wallplate - Black 60-691-02
MTP T 15HD A WM One-Gang Wallplate - White 60-691-03
MTP T 15HD A D
Mini Twisted Pair Transmitter for VGA and Audio - Decora ® Wallplate
UNIQUE FEATURES
• Input: Female VGA connector for video and 3.5 mm stereo mini jack for audio
• Output: Female RJ-45 connector on 3” (8 cm) pigtail
• Mounts in an included Decora
® -style wallplate
Model Version Description Part Number
MTP T 15HD A D Decora Wallplate - White 60-798-03
MTP T 15HD A AAP
Mini Twisted Pair Transmitter for VGA and Audio - AAP Version
UNIQUE FEATURES
• Input: Female VGA connector for video and 3.5 mm stereo mini jack for audio
• Output: Female RJ-45 connector on 3” (8 cm) pigtail
• Mounts in Extron products that accept a double space AAP - Architectural Adapter Plate
Model Version Description Part Number
MTP T 15HD A AAP AAP Module - Black 70-558-02
MTP T 15HD A AAP AAP Module - White 70-558-03
