Suggested Enclosure Designs

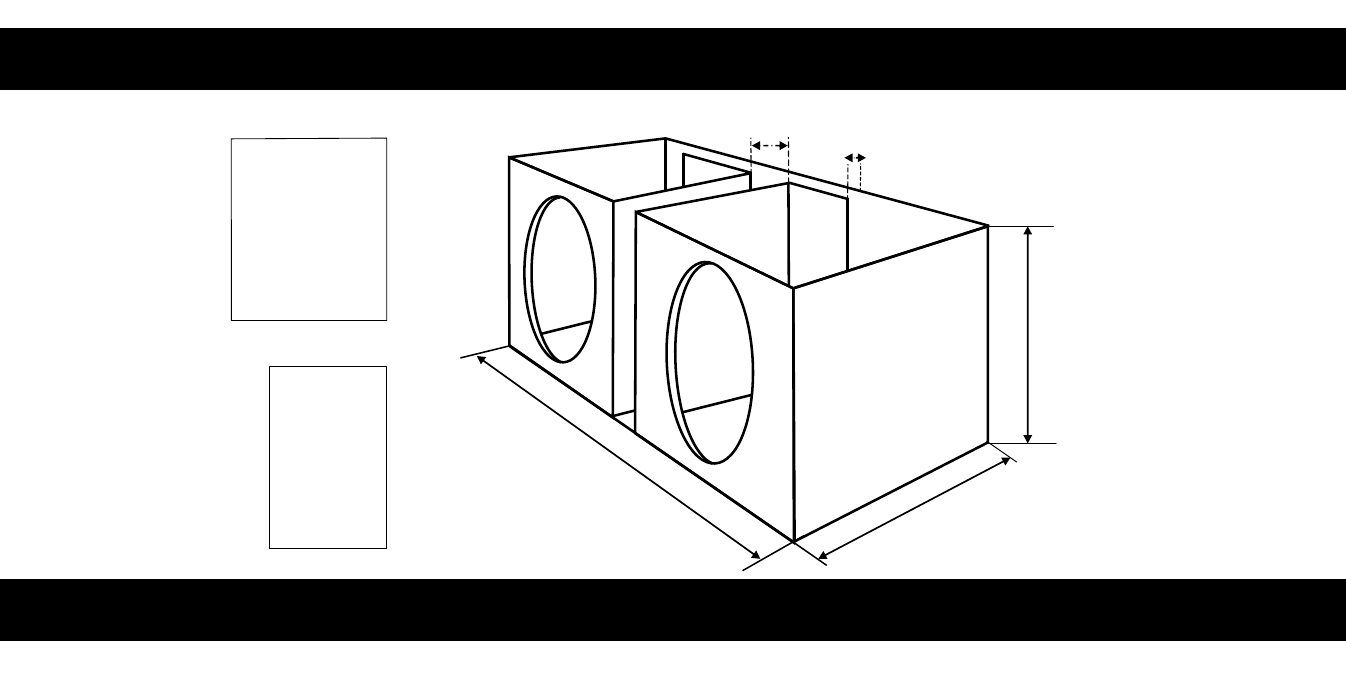

Ported/Vented Box
[designed using 3/4” thick wood]
Sealed Box
[designed using 3/4” thick wood]
www.earthquakesound.com 7
Suggested Enclosure Designs
Ported/Vented Box
[designed using 3/4” thick wood]
20”
508mm 609.6mm
24”
17” 17”
15.5”
15.5”
3”
76.2mm
9”
228.6mm
3”
20” long port
Box Volume = 2.8 ft³
Box Volume = 4.9 ft³
Box Volume = 2.8 ft³
393.7mm
393.7mm
15.5”
393.7mm 431.8mm 431.8mm
A
B
965.2mm
114.3mm
419.1mm
431.8mm
38”
4.5”
4.5”
16.5”
17”
A
B
15.5”
15.5”
6”
10.5”
266.7mm
152.4mm
393.7mm
393.7mm
