Installation Instructions
19
Knockouts
Parts”A”

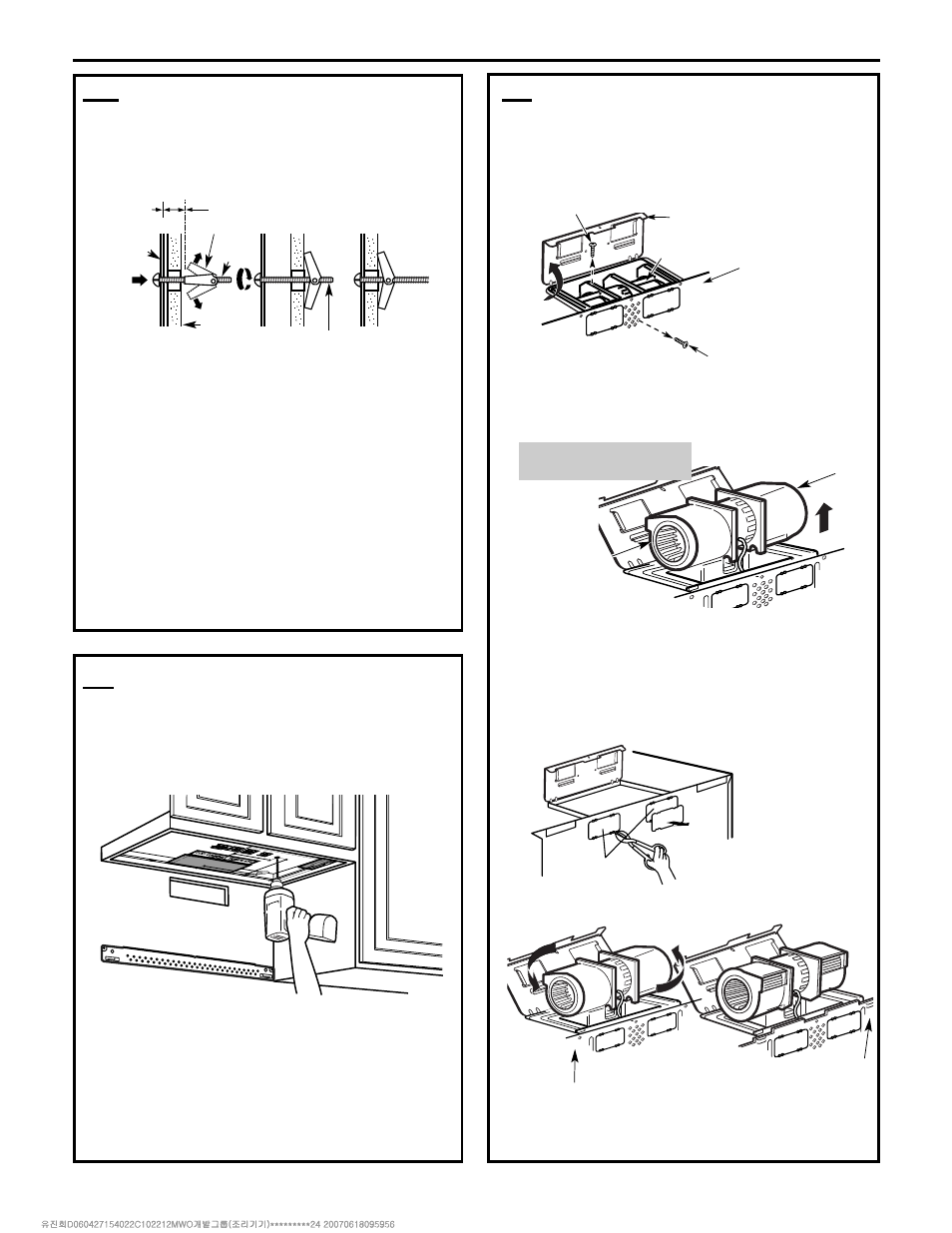

C2. ATTACH THE MOUNTING PLATE
TO THE WALL (cont.)
To use toggle bolts:
3.
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to coincide bottom line of the
Mounting plate with Horizontal line of “Rear wall
Template” and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
C3. USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in
the cabinet bottom.
C4. ADAPTING MICROWAVE BLOWER
FOR OUTSIDE BACK EXHAUST
1.
Remove and save screw that holds blower Plate
to microwave.
3.
Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
CAUTION: Do not touch blade of blower to prevent
cracking and breaking. Hold outer case when the
blower is removed and re-installed.
4.
Remove “Parts “A” with Nipper or Scissors
5.
Rotate blower unit counterclockwise 180°.
Wall
Bolt End
Toggle Wings
Toggle
Bolt
Spacing for Toggles More
Than Wall Thickness
Mounting
Plate
Back of
Microwave
Blower Motor
Screw
Blower Motor
Blower motor
screw.
2.
Lift up the Blower Plate.
End A
End B
BEFORE: Fan Blade
Openings Facing Forward
Before Rotation
Back of
Microwave
Back of
Microwave
After Rotation
