Installation Instructions
18

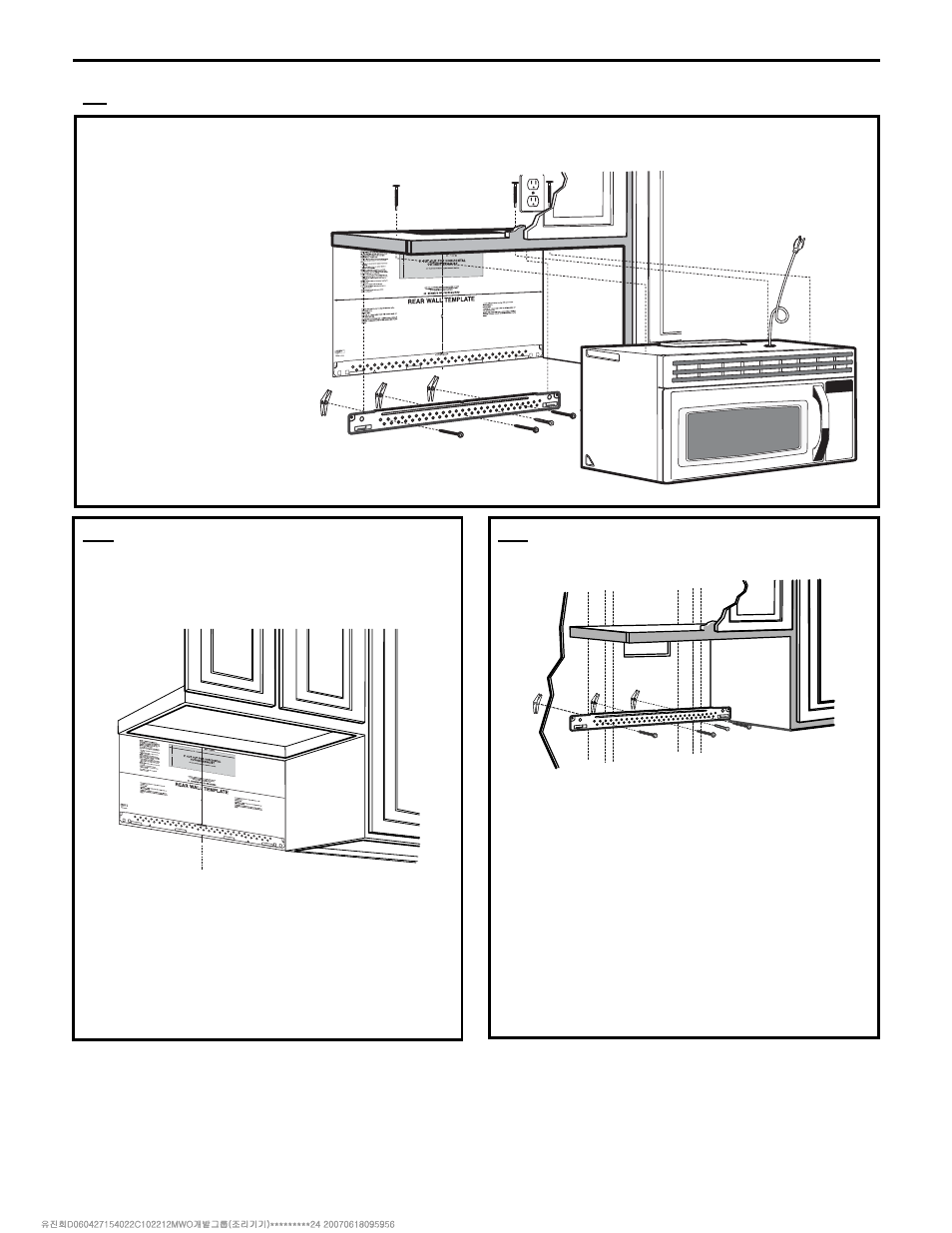

C. OUTSIDE BACK EXHAUST (Horizontal Duct)
C1. PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
C2. ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach
the plate to a wall stud.
1.
Remove the toggle wings from the bolts.
2.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to ¾ " onto each bolt.
INSTALLATION OVERVIEW
C1. Prepare Rear Wall
C2. Attach Mounting Plate to Wall
C3. Prepare Top Cabinet
C4. Adjust Blower
C5. Mount the Microwave Oven
