13117-9-0907

Page 17

OPTIONAL BLOWER DRB-1

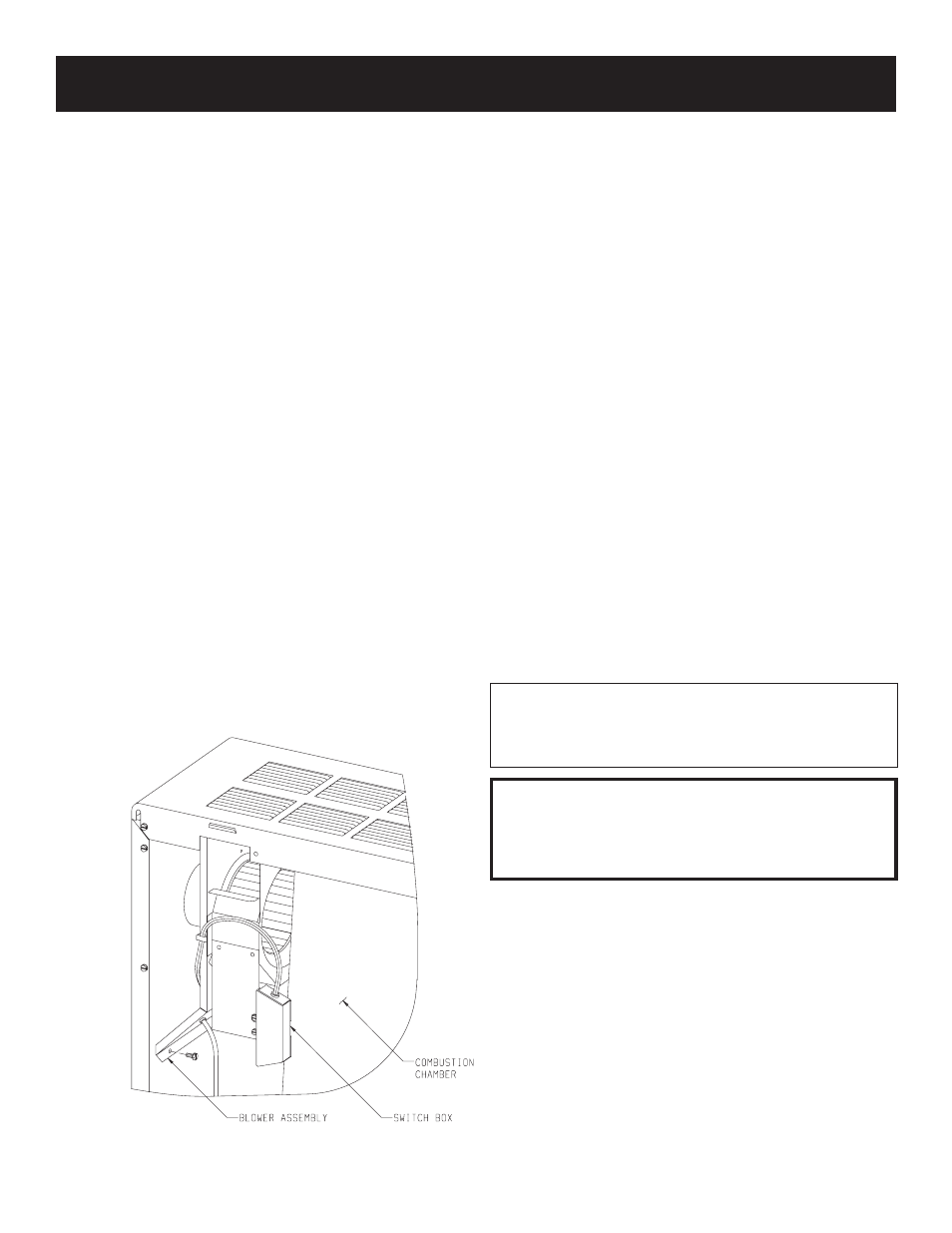

Installing Optional DRB-1 Blower

1. Remove casing from front and heat shield

2. When facing appliance, insert blower assembly into the left

section of the casing (adjacent to the combustion chamber).

3. Route cord set through opening in casing in bottom. The opening

in casing bottom is located beneath gas control.

4. Align the two (2) screw holes on the inner side panel and the

two (2) screw holes on casing back with the four (4) clearance

holes on the blower assembly. Attach blower assembly to the

casing back and inner side panel with four (4) 10 x 1/2" screws

provided. The blower assembly must be attached first to the

casing back and then to the casing side panel.

5. Replace heat shield and casing front.

Attention: Wiring harness on blower is factory assembled and

installed. If wiring harness becomes disassembled use the following

steps to reassemble the wiring harness.
1. Attach (1) pin terminal from black (hot) wire, smooth insulation

on cord set to (1) socket terminal on fan control assembly.

2. Attach (1) pin terminal from black (neutral) wire, ribbed

insulation on cord set to (1) socket terminal from white (neutral)

wire on motor.

3. Attach (1) pin terminal on fan control assembly to (1) socket

terminal from black (hot) wire on motor.

4. Attach green ground wire beneath one of the #10 x 1/2" (13mm)

screws on the blower housing.

Fan Control

The automatic fan control is located in the switch box. The switch

box is attached to the front of the blower assembly. The switch

box is adjacent to the combustion chamber. The fan control is a

non-adjustable automatic type. The fan control will require between

5 and 10 minutes of main burner operation before the fan control

"closes" and activates the blower. The blower will continue to run

between 5 and 10 minutes after the main burner shuts off, before

the fan control "opens" and deactivates the blower.
Wiring

The appliance, when installed, must be electrically grounded in

accordance with local codes or, in the absence of local codes, with

the National Electrical Code, ANSI/NFPA 70 or Canadian Electrical

Code, CSA C22.1, if an external electrical source is utilized. This

appliance is equipped with a three-prong [grounding] plug for

your protection against shock hazard and should be plugged

directly into a properly grounded three-prong receptacle. Do

not cut or remove the grounding prong from this plug. For an

ungrounded receptacle, an adapter, which has two prongs and a

wire for grounding, can be purchased, plugged into the ungrounded

receptacle and its wire connected to the receptacle mounting screws.

With this wire completing the ground, the appliance cord plug can

be plugged into the adapter and be electrically grounded.

CAUTION: Label all wires prior to disconnection when

servicing controls. Wiring errors can cause improper

and dangerous operation. Verify proper operation after

servicing.

WARNING:

Unplugging of blower accessory will not stop the heater

from cycling. To shut heater off: Turn temperature dial

or thermostat to lowest setting. Turn knob on gas control

to "OFF", depressing slightly. Do not force.

OPTIONAL BLOWER INSTALLATION INSTRUCTIONS
