Cm series controls, Controls – Lab.gruppen CM41 Commercial Mixer User Manual
Page 6
10
CM Series
Quick Start Guide
11

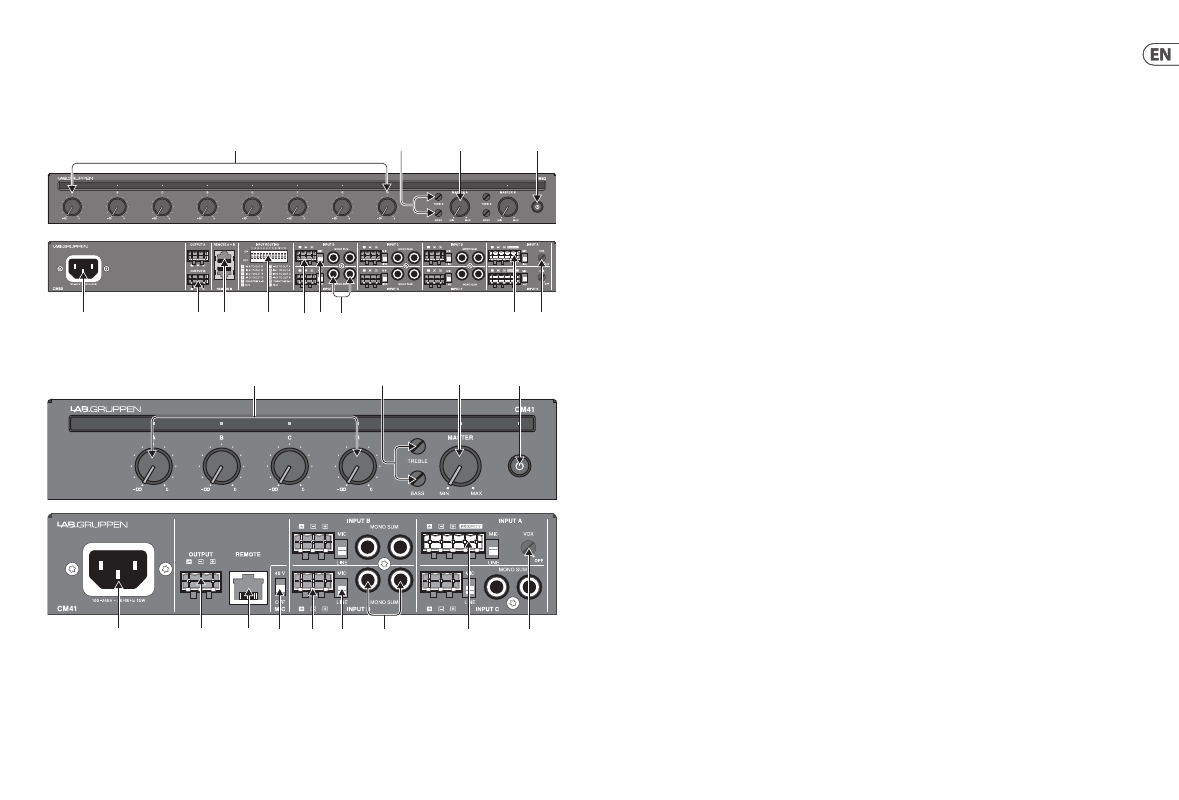

CM Series Controls
Controls
(1)
INPUT VOLUME
– Adjusts the volume of
the various audio sources. Each channel
has an associated LED that will light green
to indicate active signal, and light red to
indicate clipping.
(2)
EQ KNOBS
– Adjusts the bass and treble for
the master output(s).
(3)
MASTER VOLUME
– Controls the overall
output level. The associated LED(s) will light
green to indicate active signal, and light red to
indicate amplifier limiting/protection.
(4)
POWER BUTTON
– Turns the unit on and off.
The LED will indicate power status.
(5)
MAINS CONNECTOR
– Connect the IEC cable
to a mains outlet.
(6)
OUTPUT
– Send the mixed audio to a
power amplifier.
(7)
REMOTE
– Allows the connection of an
external volume control module per channel.
CRC-V series of wall controllers are available as
separate accessories.
(8)
INPUT ROUTING
– Controls the routing and
phantom power for each channel. (CM82 only)
(9)
48 V SWITCH
– Sends 48 V of phantom
power to any Euroblock inputs set to MIC.
(CM41 only)
(10)
EUROBLOCK INPUT
– Accepts 3-pin
Euroblock connectors for balanced mic or
line-level sources.
(11)
MIC/LINE SWITCH
– Optimizes the input gain
for mic or line-level sources.
(12)
RCA INPUTS
– Allows the connection of
stereo unbalanced sources, which will be
summed to mono.
(13)
PRIORITY
– Additional 2 pins that activate
the priority function when shorted together.
(14)
VOX KNOB
– Sets the input level that will
engage the priority ducking function.
(5)
(9)
(
10
)
(
11
)
(12)
(13)
(14)
(6)
(7)
(3)
(4)
(2)
(1)
(1)
(4)
(3)
(2)
(5)
(6)
(7)
(8)
(10) (11)
(12)
(13)
(14)
