Installation
PF2 Precision Panel Frame
The PF2 accommodates any two 1/2 frame Precision Panels.
The kit includes a full-size Precision Panel frame, an insert with pre-
drilled holes for the mounting of two 1/2 frame Precision Panels,
mounting screws, and a blank 1/2 frame plate to cover an unused
half of the frame. PBKT6P new-construction brackets are available,
or the PF2 can easily be retro-fitted using the four clamping legs
attached to the frame, which clamp the panel securely to drywall.
Note: The PF2 is required for the installation of all 1/2 frame
Precision Panels.
Mounting the PSP6 to the PF2
Each 1/2 frame Precision Panel mounts from the back of the PF2.

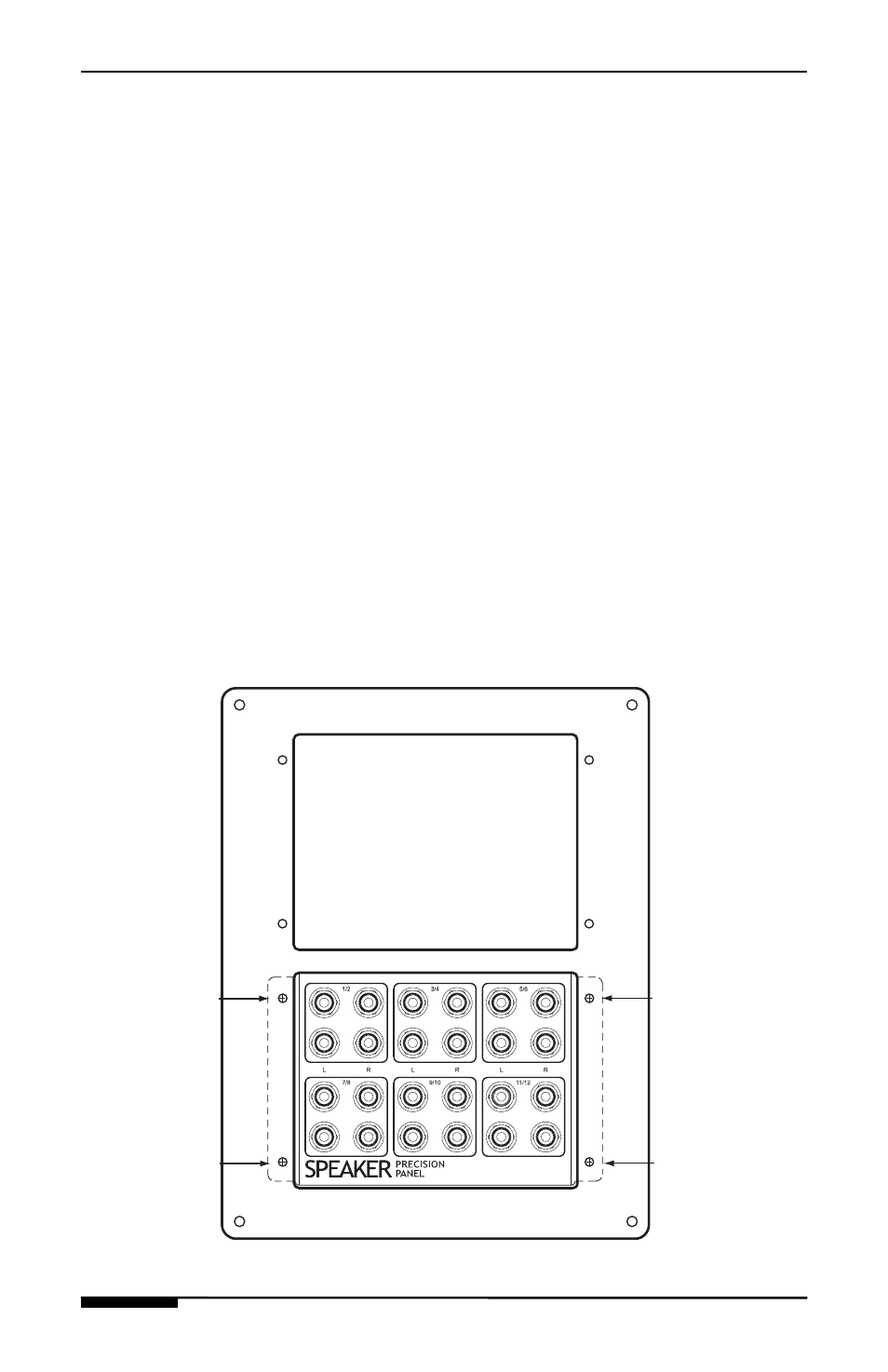

Use four included screws inserted from the front of the PF2 as
shown below.
