User Manual

IDS ET5503L

UM600482 Rev. B, page 7 of 37

Section 3: IDS Display Installation

Connector Panel and Interfaces

Remove the cable cover located on the back-right side of the IDS Display (when viewed in landscape

orientation) to access the connector panel.

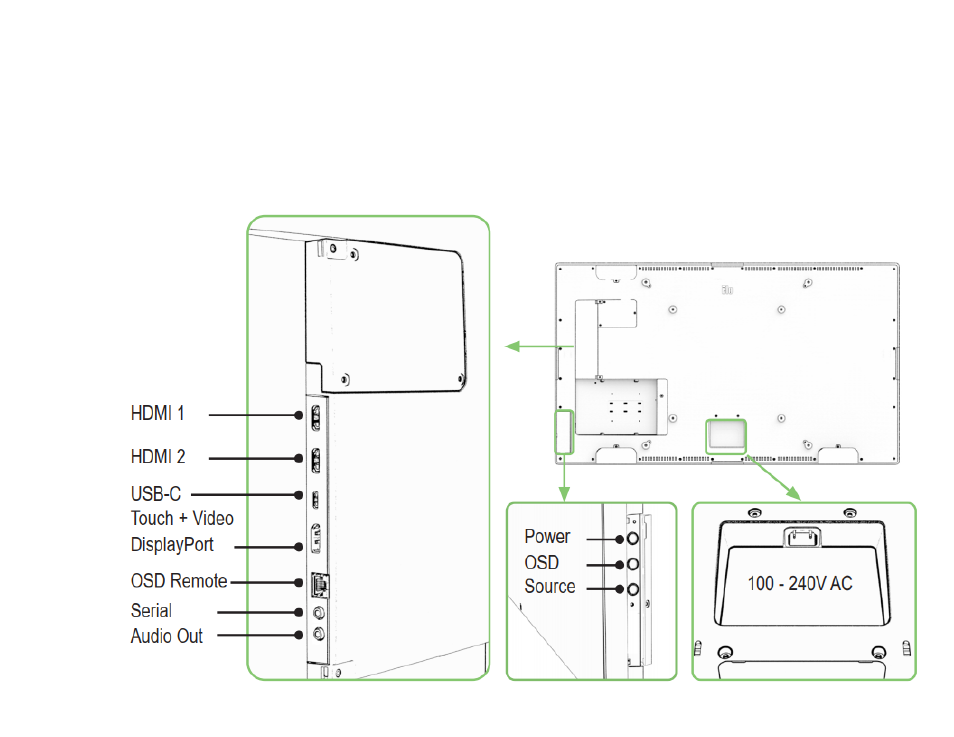

IDS Display I/O ports
