……………………………………………………………………………… INSTRUCTION MANUAL

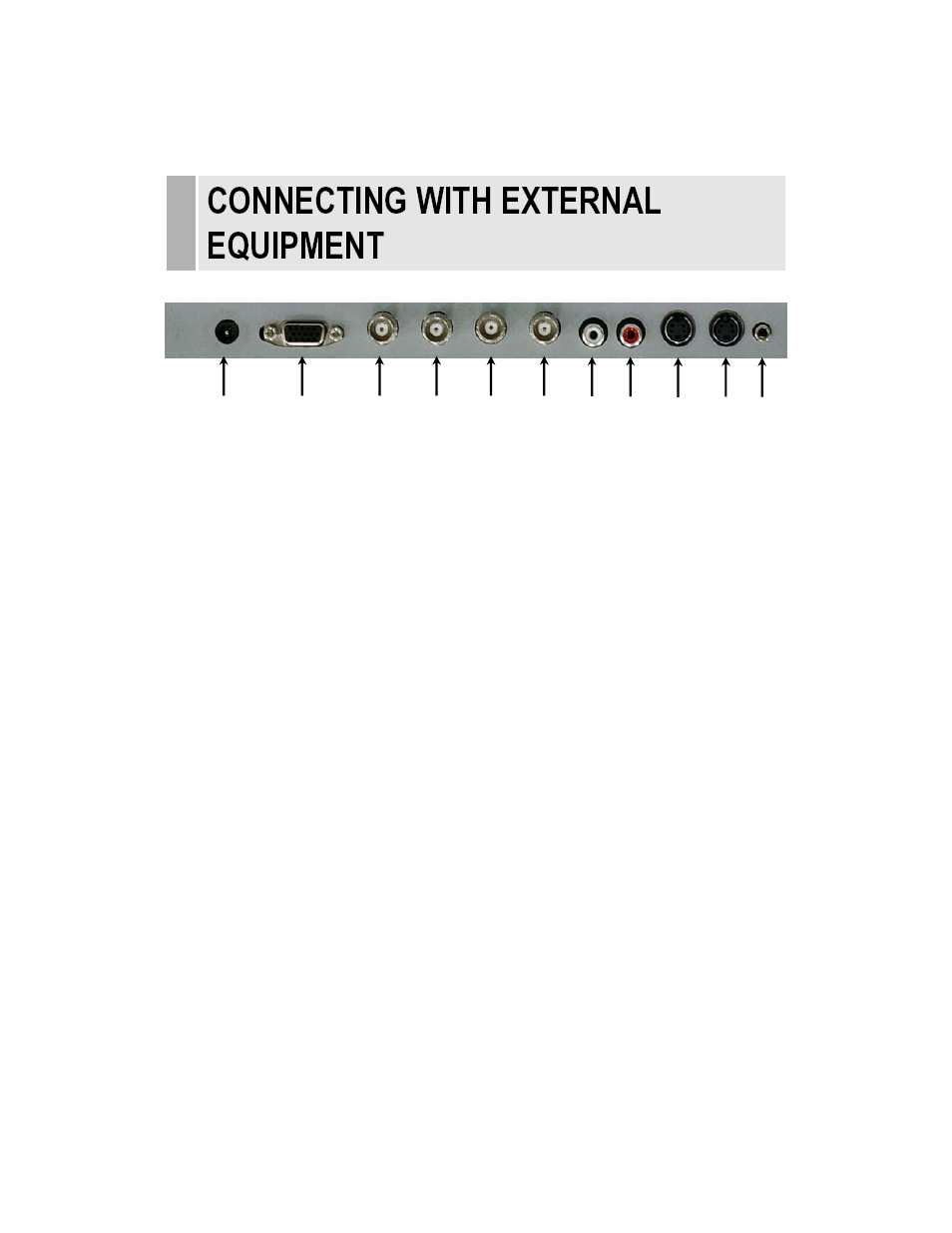

A. BOTTOM PANEL CONTROL
1. DC 12V IN
2. D-SUB IN
PC Signal Input
3. VIDEO 1(AV1) IN
Composite signal Input for AV1
4. VIDEO 1(AV1) OUT
Video looping output for AV1
5. VIDEO 2(AV2) IN
Composite signal Input for AV2
6. VIDEO 2(AV2) OUT
Video looping output for AV2
7. 8 AUDIO IN (L+R)
Stereo Audio Signal Input
9. S-VIDEO (Y/C) IN
Y/C separated signal input
10. S-VIDEO (Y/C) OUT
Y/C separated signal looping output
11. PC STEREO IN
1
2
3
4
5
6
7
8
9
10
11
