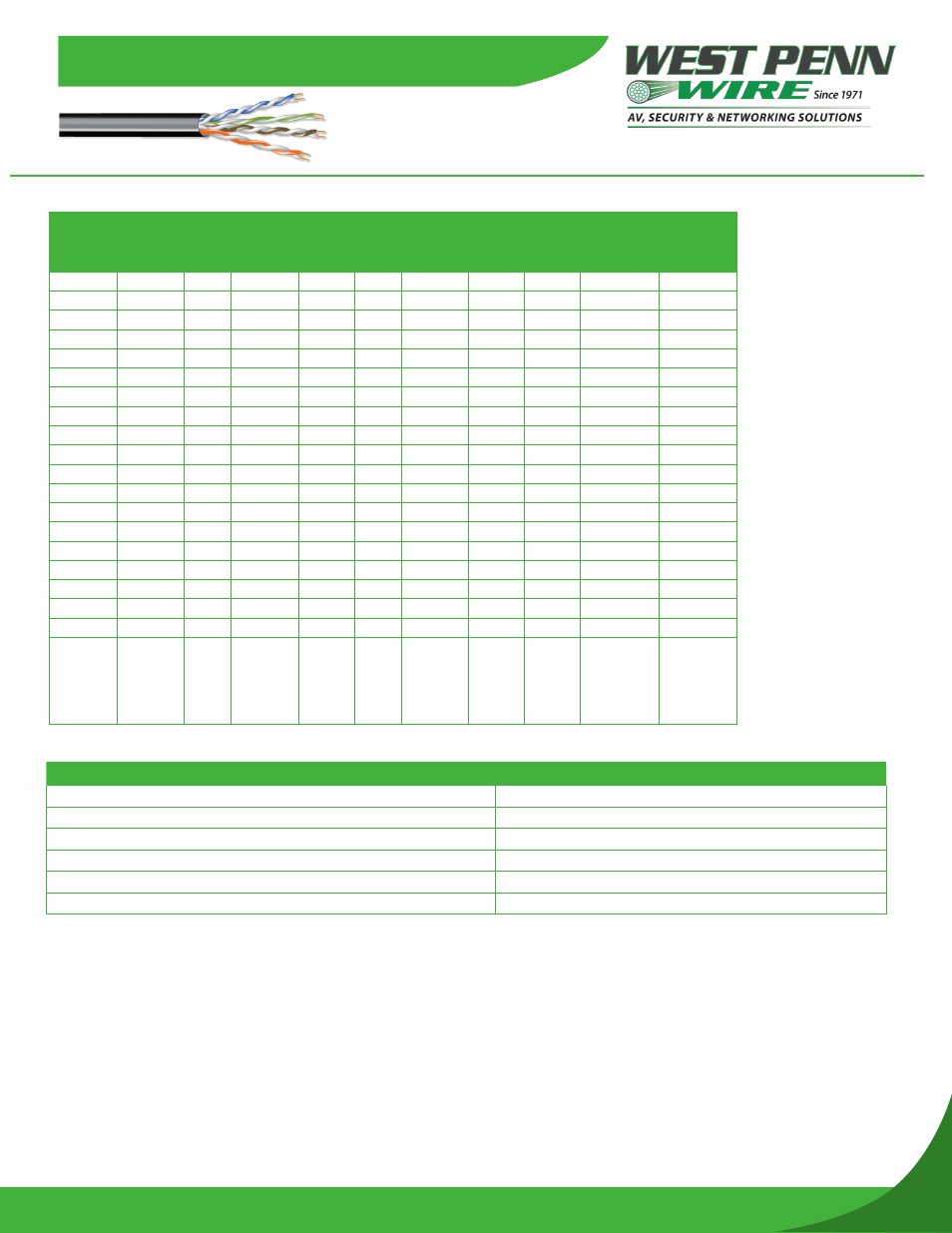

West Penn Plenum-Rated 254246 23 AWG 4-Pair Cat 6 Unshielded Cable (1000', Blue) - Manual (Page 2)

RELATED PRODUCTS -
Non Plenum Number 4246
Indoor/Outdoor Non Aquaseal 4246IO
Outdoor Direct Burial 1 4246OSP
Jack KJ458MT-C6C-XX
Modular Plug 32-6EZP
Modular Plug 2 32-6198UL
Related Products
Detailed Specification & Technical Data
254246
Electrical Performance
Frequency
(Mhz)
Max.
Insertion
Loss
Min.
NEXT
Min.
PSNEXT
Min.
PSACR
Min.
ACR
Min.
PSACRF
(PSELF-
EXT)
Min.
ACRF
(ELF-
EXT)
Min. RL
(Return
Loss)
Max/Min
Input
Imp.
Un fi t
Max/Min
Fitted
Imp.
1 MHz 2 db/100m 75.3 dB 73.3 dB 71.3 dB 73.3 dB 67.8 dB 70.8 dB 20 dB 100 ± 15 Ohm 100 ± 15 Ohm
4 MHz 3.7 db/100m 66.3 dB 64.3 dB 60.6 dB 62.6 dB 55.8 dB 58.8 dB 23 dB 100 ± 15 Ohm 100 ± 15 Ohm
8 MHz 5.2 db/100m 63.3 dB 61.3 dB 56.1 dB 58.1 dB 49.7 dB 52.7 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
10 MHz 5.8 db/100m 61.8 dB 59.8 dB 54 dB 56 dB 47.8 dB 50.8 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
16 MHz 7.4 db/100m 58.6 dB 56.6 dB 49.2 dB 51.2 dB 43.7 dB 46.7 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
20 MHz 8.3 db/100m 57.1 dB 55.1 dB 46.8 dB 46.8 dB 41.8 dB 44.8 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
25 MHz 9.3 db/100m 55.5 dB 53.5 dB 44.3 dB 46.3 dB 39.8 dB 42.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm
31.25 MHz 11.4 db/100m 54 dB 52 dB 41.6 dB 43.6 dB 37.9 dB 40.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 15 Ohm
62.5 MHz 15 db/100m 49.1 dB 47.1 dB 32.1 dB 34.1 dB 31.9 dB 34.9 dB 21.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
100 MHz 19.3 db/100m 45.8 dB 43.8 dB 24.5 dB 26.5 dB 27.8 dB 30.8 dB 20.8 dB 100 ± 15 Ohm 100 ± 15 Ohm
155 MHz 24.5 db/100m 42.7 dB 40.7 dB 16.2 dB 18.2 dB 24 dB 27 dB 19.8 dB 100 ± 15 Ohm 100 ± 15 Ohm
200 MHz 28.3 db/100m 40.9 dB 38.9 dB 10.6 dB 12.6 dB 21.8 dB 24.8 dB 18.7 dB 100 ± 22 Ohm 100 ± 15 Ohm
250 MHz 32.1 db/100m 39.3 dB 37.3 dB 5.2 dB 7.2 dB 19.8 dB 22.8 dB 18 dB 100 ± 32 Ohm 100 ± 15 Ohm
300 MHz 38 db/100m 38.1 dB 36.1 dB -0.5 dB 2.5 dB 18.3 dB 21.3 dB 17.5 dB 100 ± 32 Ohm 100 ± 15 Ohm
350 MHz 38.9 db/100m 37.1 dB 35.1 dB -3.7 dB -1.7 dB 16.9 dB 19.9 dB 17 dB 100 ± 32 Ohm 100 ± 15 Ohm
400 MHz 42 db/100m 36.3 dB 34.3 dB -7.7 dB -5.7 dB 15.8 dB 18.8 dB 16.6 dB 100 ± 32 Ohm 100 ± 15 Ohm
450 MHz 45 db/100m 35.5 dB 33.5 dB -11.5 dB -9.5 dB 14.7 dB 17.7 dB 16.2 dB 100 ± 32 Ohm 100 ± 15 Ohm
500 MHz 47.9 db/100m 34.8 dB 32.8 dB -15 dB -13 dB 13.8 dB 16.8 dB 15.9 dB 100 ± 32 Ohm 100 ± 15 Ohm
550 MHz 50.6 db/100m 34.2 dB 32.2 dB -18.4 dB -16.4 dB 13 dB 16 dB 15.6 dB 100 ± 32 Ohm 100 ± 15 Ohm
Tested to
550Mhz -
Values above
250Mhz are
for Engineer-
ing Purposes
Only
