Elkay LK411A - Manual

6-1/4"
(159mm)
5-1/2"
(140mm)
9-5/8
(245mm)
1"
(25mm)
2"
(51mm) COMPRESSION NUT,
CONE WASHER AND
FRICTION RING FOR
1/2" (13mm) O.D. TUBE
6-1/2"
(166mm)
4"
(102mm)
Lavatory Faucet
Models LK411A and LK411ABH4 ®
SPECIFICATIONS
Elkay warrants its faucet and water dispensers to be free of defects in work-
manship and material for a period of one year from the date of purchase.
Replacement parts are available from Elkay for a nominal charge. Upon return
of a defective part to Elkay during the warranty period with written notice of
the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER
WARRANTY CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment,
misuse, or damage due to handling or faulty installations. This warranty is
extended only to the original consumer purchaser of the product. This war-
ranty does not cover shipping costs, labor costs, or any other charges for
such items as installation or replacement of the sink, diagnosis or replacement
of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY
EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE
GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts,
so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay
Attention: Consumer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b.Description of nature of defect
c. Model number or description of model and/or component part if
possible.
ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY
Elkay 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2002 Elkay
(Rev. 9/02) 17-16A
www.elkay.com

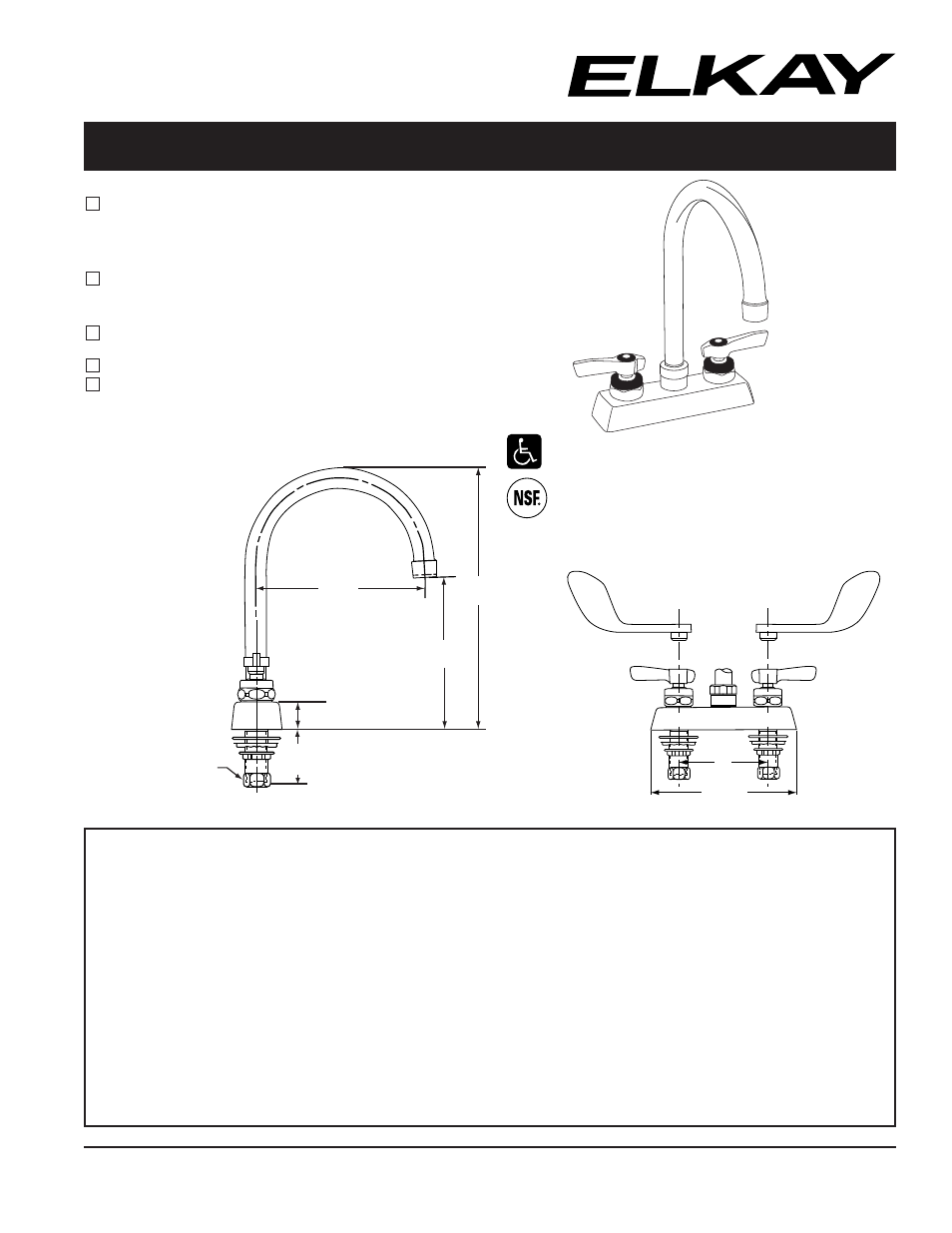

Model LK411A
GENERAL
LK411A Chrome plated 4" (102mm) centerset faucet, deck
mount with lever handles. 9-5/8" (244mm) high rigid goose-
neck spout (6-1/4" [159mm] from center of base to spout
outet) with AE13A aerator. 4" (102mm) center to center
flanged female 1/2" (13mm) coupling nuts. Ship. Wt. 5 lbs.
LK411ABH4 Same as the LK411A except with BH4A
4" (102mm) wrist blade handles. Ship. Wt. 5 lbs.
OPTIONAL ACCESSORIES
AE19A Vandal-resistant, anti-hose aerator. 2.2 GPM. Ship.
Wt. 1/2 lb.
BH6A 6" (152mm) wrist blade handles (pair). Ship. Wt. 2 lbs.
LKMK462 90° Mounting kit for backsplash mounting of
wall faucets. Ship. Wt. 1 lb.
These faucets are ADA compliant.
These faucets are certified to ANSI/NSF61, Section 9
for residential use.
MAXIMUM FLOW RATE
2.5 GPM/9.5 L/min at 80 P.S.I.G.
2.2 GPM/8.3 L/min at 60 P.S.I.G.
2.0 GPM/7.6 L/min at 40 P.S.I.G.
