2. NAMES AND FUNCTIONS OF PARTS

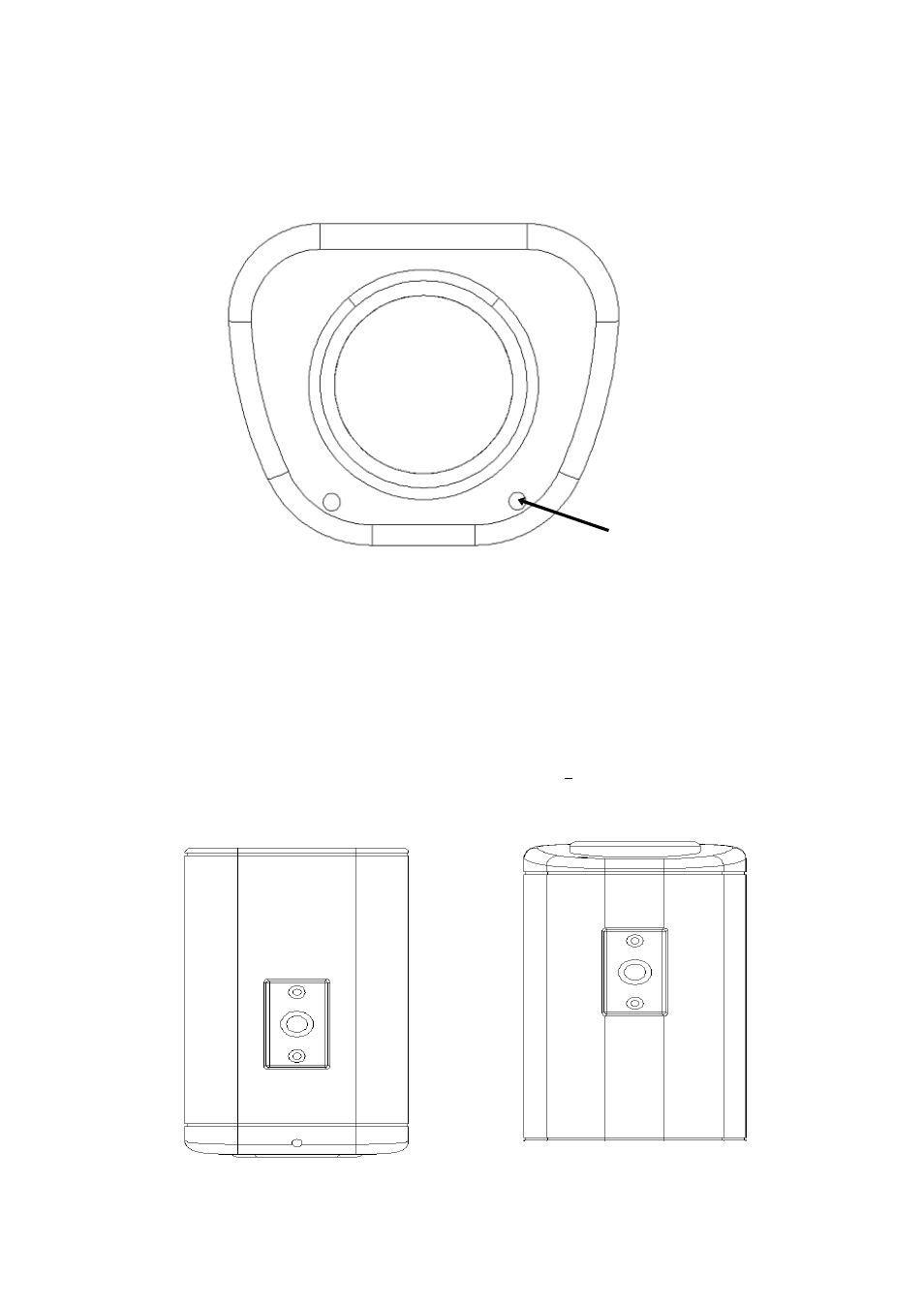

2.1 Front panel

The light sensor is for optional control of D/N switching levels in some applications. See section 5.6 for
details.

2.2 Top/Bottom Mounting

Using the two phillips head screws provided, the mounting bracket may be mounted to the top of
the camera body for suspending the camera; or, the brackets may be mounted to the bottom of the
camera body to support the camera.

Bottom Bracket

Top Bracket

Light Sensor

TAKE CARE NOT TO OBSTRCUT THIS OPENING

WITH THE BODY OF THE LENS!
