Elinchrom ELC Pro HD 500 Flash Head - Manual (Page 5)

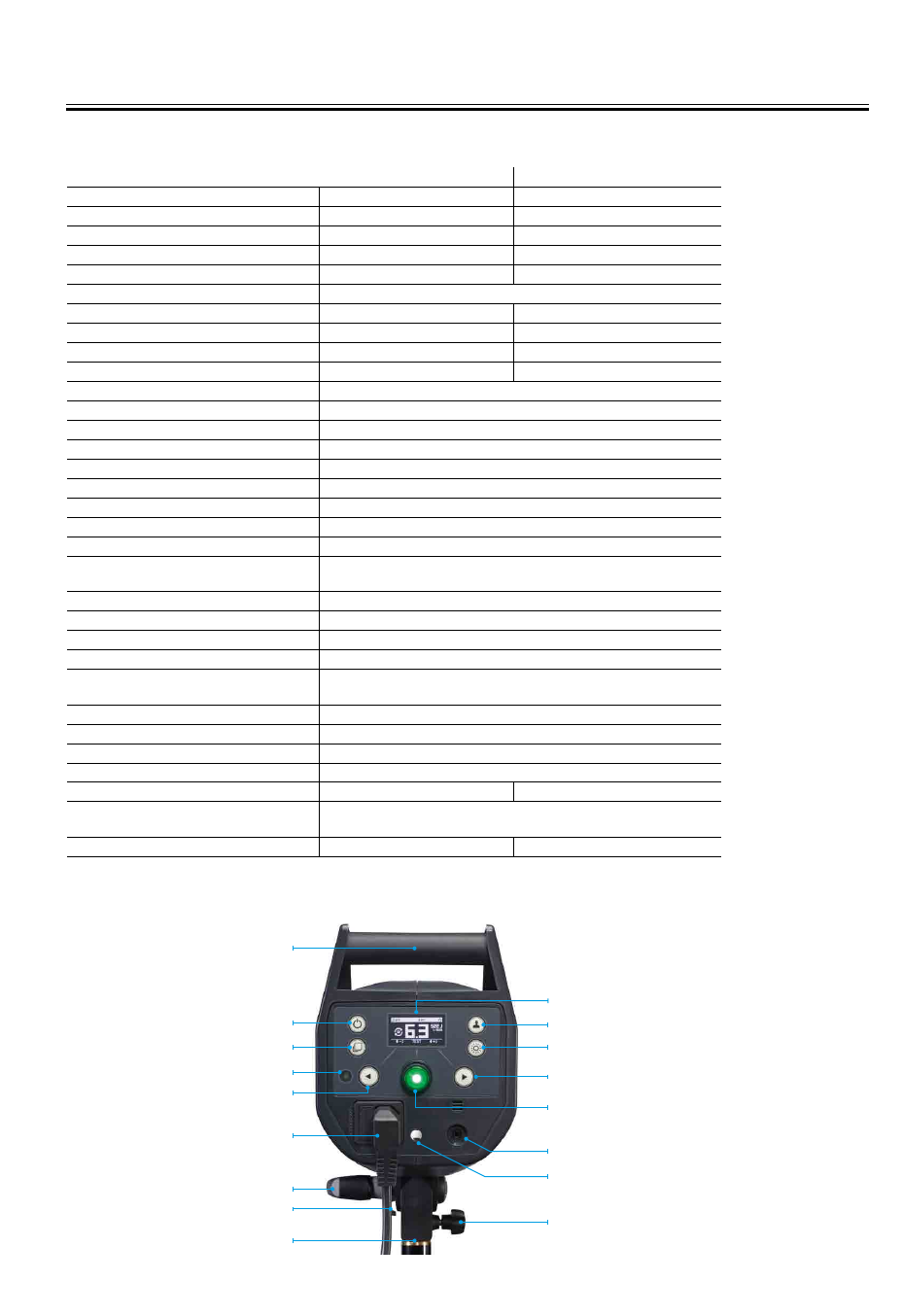

On/off button / Standby function
Access menu button
Left function button / Return function
Photocell
Precise control and test button / Enter menu function
Mains inlet socket includes the
main fuse (F10 AH 5x20mm)
Centred umbrella tube for EL Umbrellas – 7mm diameter
Tilt head
Extra umbrella fitting
Standard stand socket 5/8 inch
Rubberised handle
OLED display
User presets button
Modelling lamp button
Right function button / Exit function
3.5mm Sync socket (low 5V voltage)
Knurled clamp screw
SPECIFICATIONS
TECHNICAL DATA
Tolerances of specifications
and components conform
to IEC and CE standards.
The listed values can
di
ff er due to tolerances in
components, or measuring
instruments. Technical
data, subject to change. No
guarantee for misprints.
CONTROL PANEL
ELC PRO HD 500 ELC PRO HD 1000
Energy (Ws/J) 500 1000
F-Stop (1m, 100 ISO, reflector 48°) 64.8 90.8
Power range f-stop 7 8
Power range Ws 8-500 8-1000
Power range display 0.3 - 6.3 0.3 – 7.3
Power increments in f-stop Adjusted by precise multifunctional power knob in 1/10 steps
Flash duration t0.5 in s. Min. power: 1/2940 // Max. power: 1/2330 Min. power: 1/2780 // Max. power: 1/1430
Best flash duration at power: 3.1 (1/5000) 3.6 (1/5260)
Recycling 230 V in s. Slow: 2.0 / Default: 0.75 / Fast: 0.6 Slow: 4.0 / Default: 1.5 / Fast: 1.2
Recycling 115 V in s. Slow: 2.5 / Default: 0.9 / Fast: 0.7 Slow: 5.0 / Default: 1.8 / Fast: 1.4
Max. frames per s. at min. power 20
Colour temperature in °K at max. power 5500
Auto Power Dumping Adjusts power settings automatically
Power stability ± 0.1 %
Voltage Multivoltage 90 - 265 V
Modelling lamp mode O ff , free, proportional, VFC: -0.5 - -2.0 f-stop
Modelling lamp 230 V 300 W / GX 6.35 - 23022
Modelling lamp 115 V 300 W / GX 6.35 - 23030
Flashtube S-Type, Omega Plug-in, user replaceable - 24084
EL-Skyport (Built-in)
Integrated transceiver, 20 Frequency Channels and
4 Groups with full RX features
Sync voltage 5 V (compatible with all cameras)
Sync socket 3.5 mm Jack
Fan Cooled Electronically intelligent temperature controlled fan
Glass Dome Frosted, optional 24917
Umbrella fitting
Centred tube for EL-umbrellas ø 7 mm.
Stand bracket with extra umbrella fitting for larger umbrella shafts
Max. power consumption (230 V / 50 Hz) Slow: during charge: 350W // Default: during charge: 700W // Fast: during charge: 875W
Max. power consumption (115 V / 60 Hz) Slow: during charge: 250W // Default: during charge: 500W //Fast: during charge: 625W
Pure sine battery converter DC/AC: Slow charge 600W with Halogen
Dimensions (with protective cap) 31.5 x 14 x 21 cm
Weight 2.35 kg (5.2 lb.) 2.9 kg (6.4 lb.)
Supplied with
Mains cable, sync cable, flashtube, modelling lamp,
glass dome, protective cap and reflector 16 cm 90°
Code N° 20613.1 20616.1
