53

KVM

The KVM function allows the user to control two computers connected to the same

monitor from a single keyboard and mouse.

NOTE: 

Only applicable in PBP (Picture-by-Picture) mode.

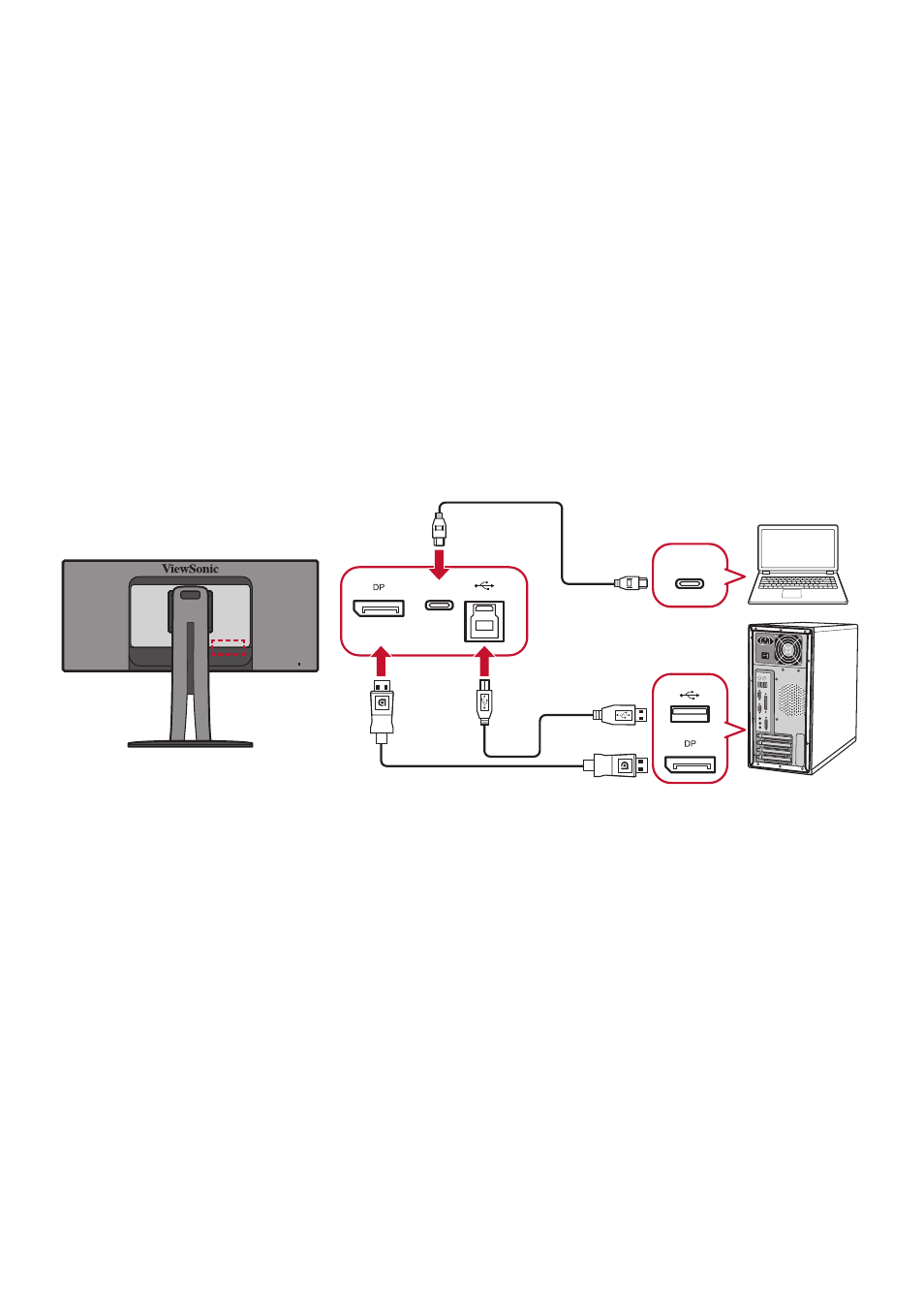

To connect the two computers to the monitor:

1.

Connect one end of the USB Type C cable to the USB Type C port of the monitor.

Then connect the other end of the cable to the USB Type C port of the notebook.

2.

Connect one end of a DisplayPort cable to the DisplayPort of the monitor. Then

connect the other end of the cable to the DisplayPort or mini DP of the computer.

3.

Connect the USB Type B male cable (square with 2 cut corners) to the USB Type B

port of the monitor. Then connect the other end of the cable to the USB port of

the computer.

Type-C

Type-C
