Important
This well-designed DVD receiver provides
optimum sound quality when the speakers used
are within the range of their rated impedance.
The minimum impedance of the five speaker
terminals is 4 ohm; for the subwoofer, it is
8 ohm.

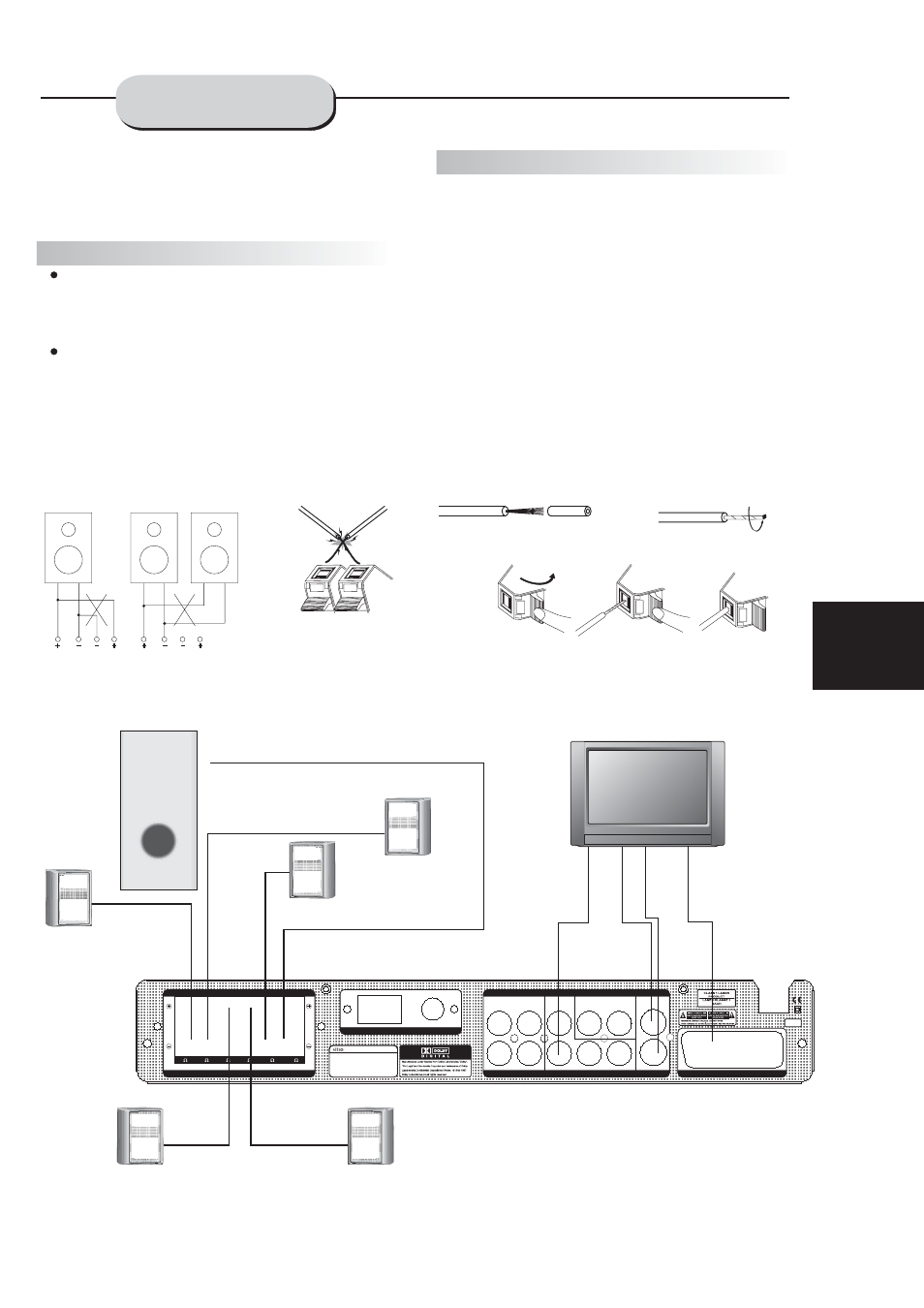

If you want to use only one speaker or listen
individual speakers to the left and right
channel terminals. See the figure on the left
below.
to monophonic music, do not parallel connect
Connecting Speaker Cables
Note:
1.Peel off approximately
of cable
insulation
2.Tighten the wire end (#2 below)
3.Open cable terminal by pressing back on
tab
4.Insert wire end into terminal
5.Release tab; make sure wire is in terminal
securely
To prevent damage to the circuit, care
should be taken to prevent short circuiting from
occurring at the positive and negative poles of
the speaker cord.
1/ 2
"
CONNECTING
SPEAKERS
1
2
13
3
4
5
4
4
4
4
4
8
SPEAKER OUTPUT
SR
SL
FR
FL
CEN
SW
AM
ANTENNA
FM
AUDIO INPUT
AUX 1
AUX 2
VIDEO INPUT
VIDEO 1
VIDEO 2
AUDIO OUTPUT
PRE OUT
SW
COAXIAL
VIDEO OUTPUT
VIDEO
S-VIDEO
SCART IN/OUT
L
R
L
R
L
R
90-240V
50~60Hz
DVD-RECEIVER
MODEL:
POWER SOURCE:
POWER CONSUMPTION:
ITEM NO.:
SERIAL NO.:
HT-153
90-240V 50~60Hz
130W
11036.01
XXXXXXXXXXXXXX
Subwoofer speaker
Surround speaker
Surround speaker
Center speaker
Main speaker
Main speaker
S-video
VIDEO
AUDIO
SCAR
