electrolux installation 19

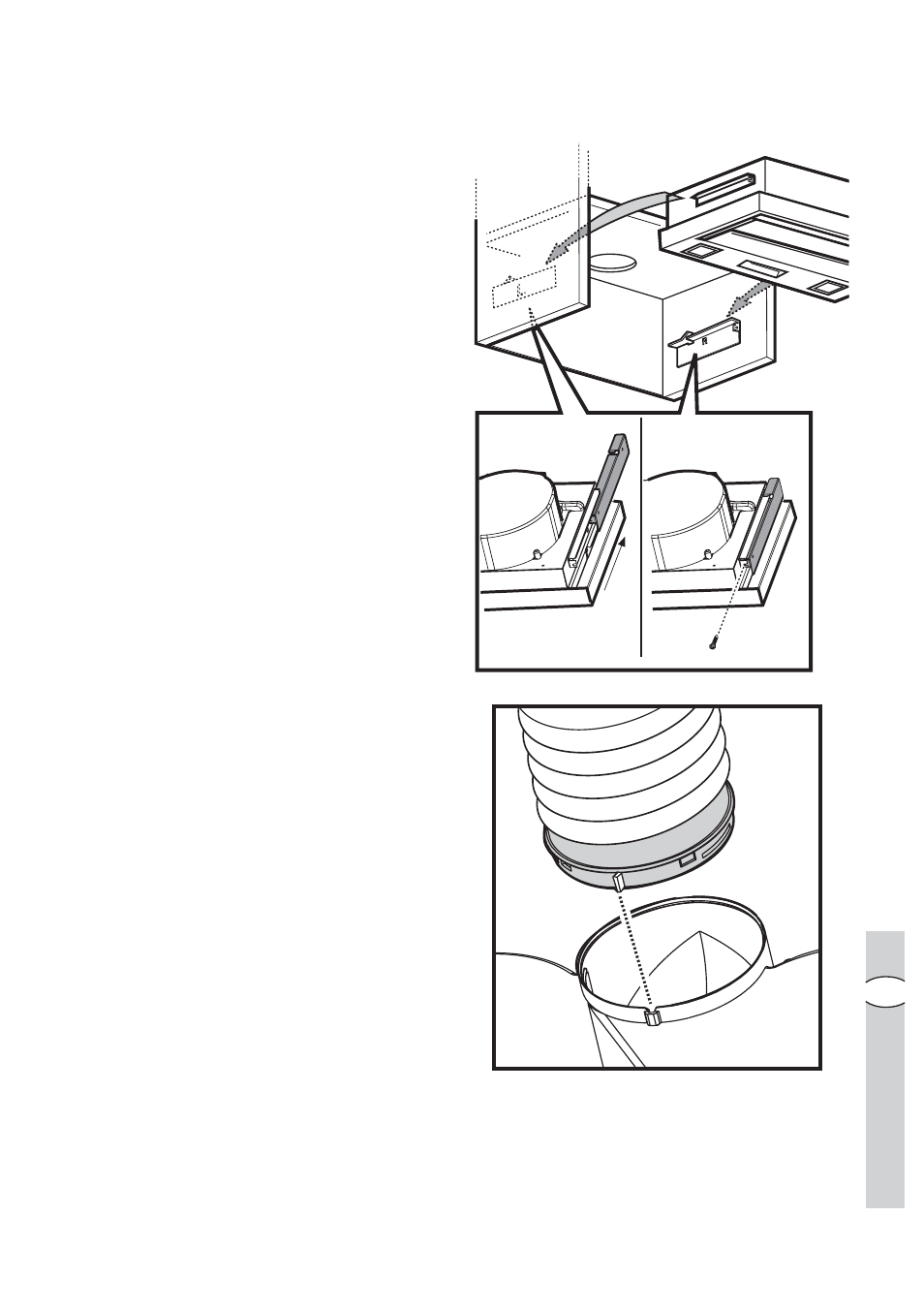

Fitting the hood inside the cabinet
• Position the hood inside the cabinet,

by sliding its brackets over the
brackets fixed to the cabinet until the
stop limit is reached.

• Run the power supply cable through

the special slots in the cabinet.

• Secure the hood, using 2 screws

(one per side) to fix the brackets
together.

• If the hood is not perfectly in line with

the lower edge of the cabinets at the
side, its position can be adjusted by
means of the internal fixing screws
(see chapter "Fixing the brackets to

Fixing the brackets to

the cooker hood

the cooker hood" on the previous
page).

• Fit the connection flange to the

exhaust hose, which should have a
suitable length and diameter for
channelling fumes outside (Ducted
version), or to the top of the cabinet
(Filter version).

• Fix the connection flange to the

exhaust outlet of the hood (snap-
fastening).
When fastened correctly, the
indicator on the flange should be
aligned with the corresponding notch
in the exhaust outlet.

• Complete the connection at the other

end of the exhaust hose.

• Filter version only: Fit the charcoal

filter(s) (see chapter "Maintenance

Maintenance

and Car

and Care - Char

e - Char

e - Charcoal filter

coal filter

coal filter").

• Fit the grease filter(s) (see chapter

"Maintenance and Car

Maintenance and Car

Maintenance and Care - Metal

e - Metal

grease filter

ease filter

ease filter").

• Connect the hood to the electricity

supply.

Ø 4 x 8
