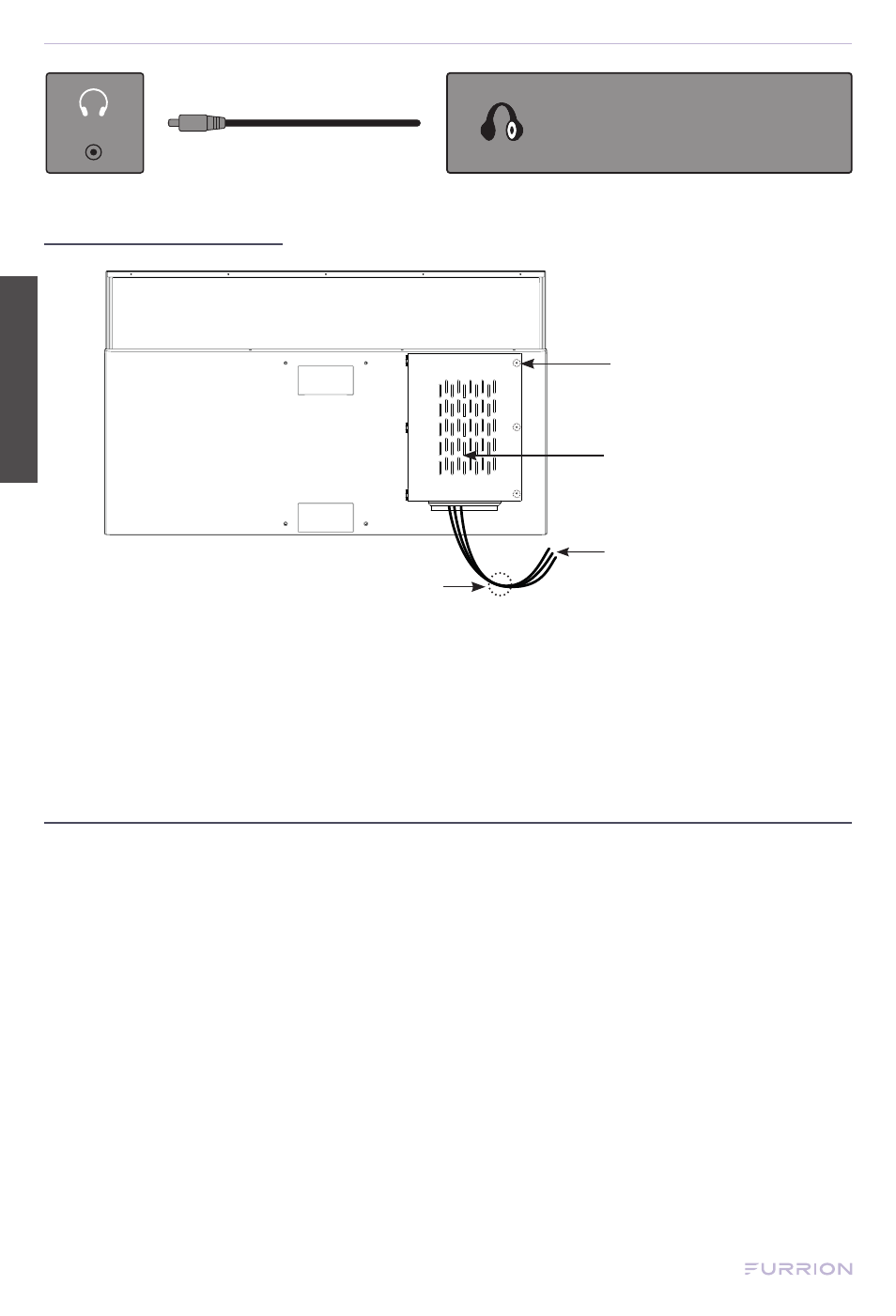

Cable Management
50˝ TV Shown
Cables
Drip Loop
Thumb Screws x 3
Cable Access Door
– After all connections are completed, lead all connecting cables downwards
through the duct at the bottom of the cable access door.
– Leave a drip loop when cables enter the compartment. This will prevent water
from dripping down the cord and possibly entering the door area.
– Close the door and tighten the thumb screws for the best weatherproof effect.
INSTALLATION
Choose a Proper Location for your TV
Important: The TV must be installed a safe distance away from any water
source.
For best viewing we recommend you install it in a shaded environment.
● Avoid installing the TV where the screen is facing direct sunlight. The ideal
location is in one place where the TV is shaded by structures, or under a patio
cover or gazebo.
● If the sun shines directly on the screen for long periods of time, dark areas may
appear on the screen. This is a normal reaction for the LCD panel, and will not
cause damage to the screen. Either turn the screen away from the sun, or shade
the TV, and the dark areas will soon disappear.
NOTE: DO NOT use the TV if ambient air temperature exceeds the operating
temperature limits.
