EDN800

3.4 Video

The settings relating video such as streaming, camera OSD can be configured on
this page.

The "Video" page has 2 tabs of the [Multi-streaming] tab and the [Camera] tab.

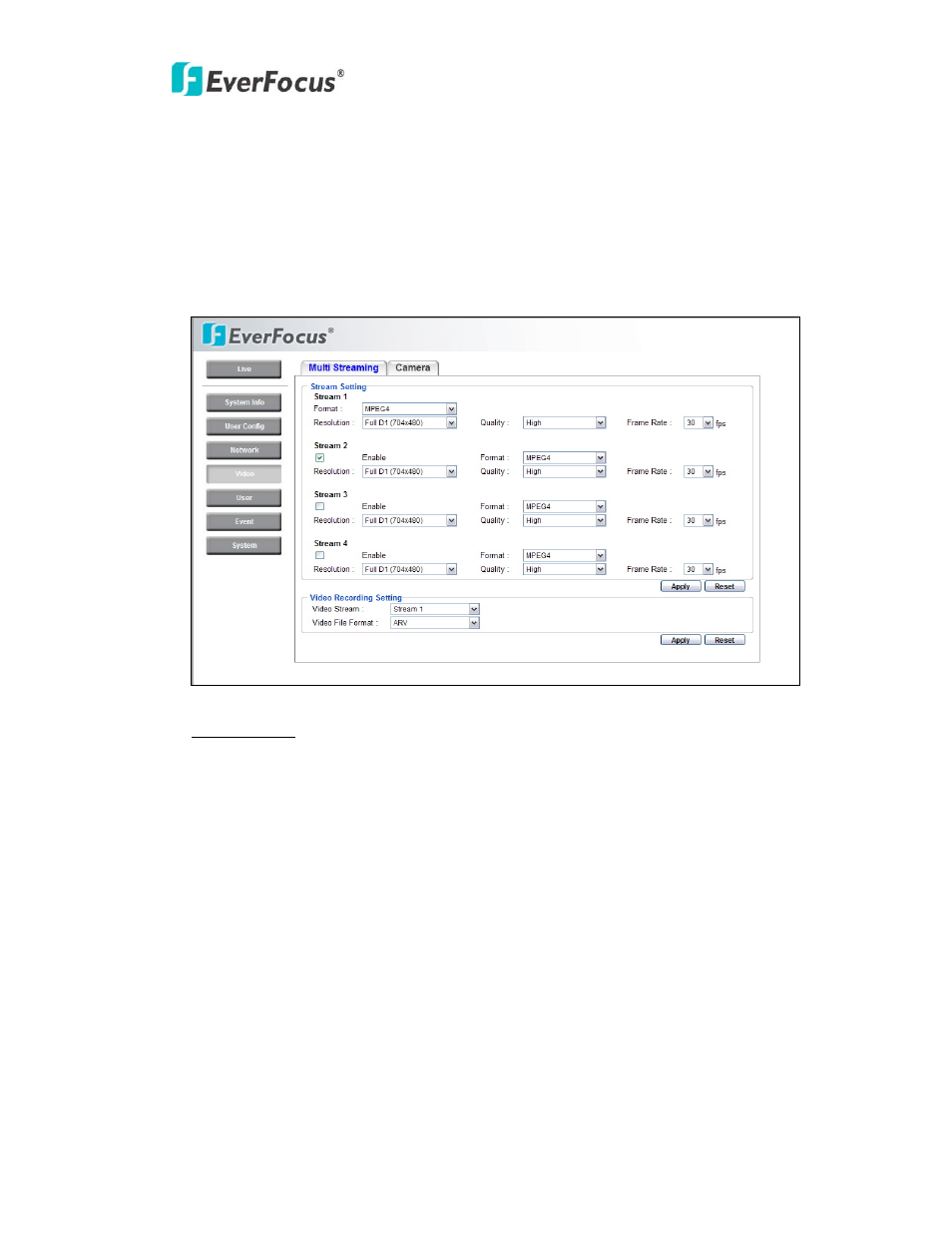

3.4.1 Multi Streaming

Stream Setting

The system can output 4 video streams simultaneously. For each of them, user can

set compression format, resolution, quality and frame rate individually. Stream 1 is
always enabled for live view.

Check “Enable” box to enable other streams.

Format: Select encode format from H.264, MPEG4 and MJPEG..

Resolution: NTSC: 4CIF (704*480) / VGA (640*480) / CIF (352*240) / QVGA

(320*240) / QCIF (176*120)
PAL: 4CIF (704*576) / VGA (640*480) / CIF (352*288) / QVGA (320*240) /
QCIF (176*144)
