electrolux 21
Seal Seal Seal Seal Seal

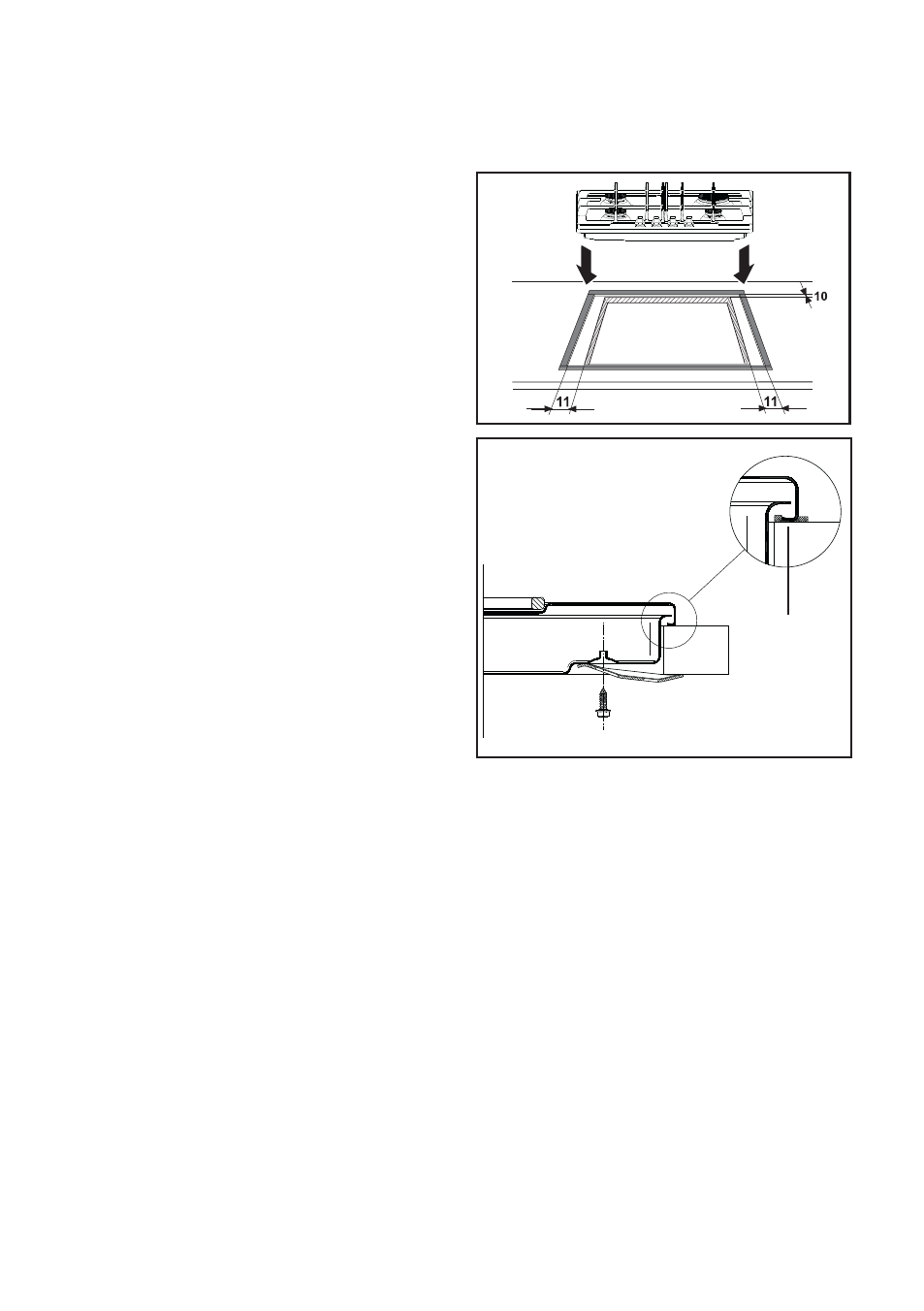

Fitting the Hob into the Worktop
Carry out the building in of the hob
as follows:
1. place the seals supplied with
the hob on the front edge of
the cut out. Then, place them
at 11 mm from the side
edges and at 10 mm from the
rear edge, as shown in the
diagram, taking care that the
seals meet without
overlapping.
2. Place the hob in the cut out,
taking care that it is centred.
3. Fix the hob with the relevant
fixing clamps, supplied with
the injectors kit (see diagram).
When the screws have been
tightened, the excess seal can
be removed.
The edge of the hob forms a double
seal which prevents the ingress of
liquids.
