ELAR EXPAR
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
ARCHITECTURAL
COLORS
• Total of 145 x 10mm L.E.D.s (27 red, 60 green & 58 blue)
• RGB Color Mixing (infinite colors)
PHOTOMETRICS
DMX TRAITS
3 Channel Mode
Channel Value Function
1 0 - 255 Red ( 0% - 00% )
2 0 - 255 Green ( 0% - 100% )
3 0 - 255 Blue ( 0% - 100% )
5 Channel Mode
Channel Value Function
1 0 - 255 Red ( 0% - 00% )
2 0 - 255 Green ( 0% - 100% )
3 0 - 255 Blue ( 0% - 100% )
4 0 - 255 DImming (0 - 100%)
5 0 - 10 Strobing: no function
11 - 255 Strobing: slow to fast
RGB
COLOR MIXING
Product Order Code Description
ELAR EXPAR High output LED RGB outdoor flood
Accessories Order Code Description
ELAR WR Wireless infrared remote
ELAR 3C-1M 3 PIN SIGNELAR EXT. CABLE 1 M
ELAR 3C-5M 3 PIN SIGNELAR EXT. CABLE 5 M
ELAR T-DMX-1 3 PIN DMX FIRST CABLE SIGNELAR EXT. CABLE 1M
ELAR T-DMX-5 3 PIN DMX FIRST CABLE SIGNELAR EXT. CABLE 5M
ELAR EXPAR

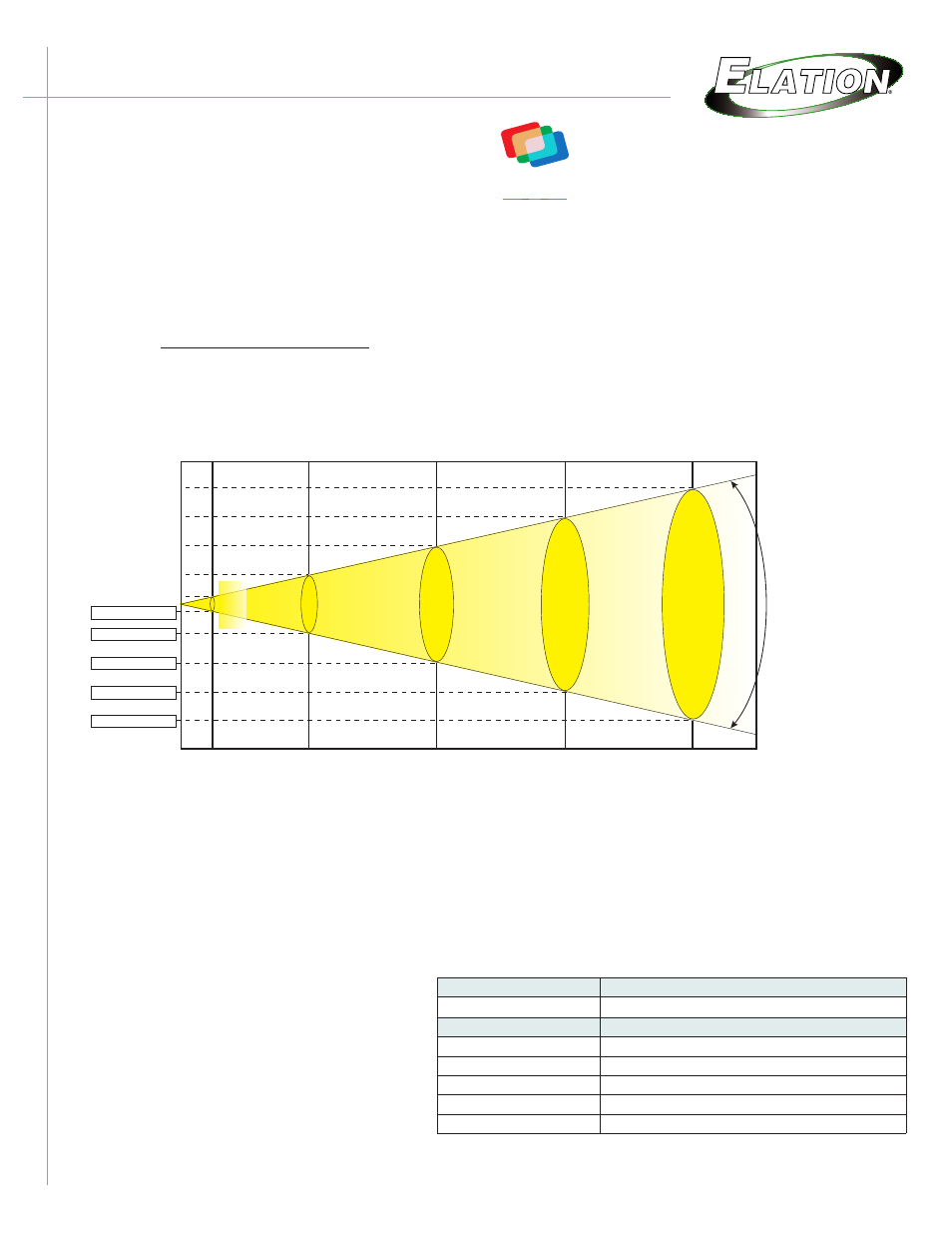

Photometric Beam Angle Data
Standard Beam Angle 40°
LUX x 0.0929 = FC
40°
Beam Angle
0 m
0 ft
R (27)
G (60)
B(58)
RGB (145)
54 FC / 580 LUX
145 FC / 1560 LUX
185 FC / 1988 LUX
383 FC / 4128 LUX
3.4 FC / 37 LUX
8 FC / 83 LUX
11 FC / 121 LUX
22 FC / 241 LUX
1 FC / 12 LUX
2.7 FC / 29 LUX
4 FC / 41 LUX
8 FC / 82 LUX
0.5 FC / 6 LUX
1.5 FC / 16 LUX
2 FC / 24 LUX
4.3 FC / 46 LUX
0.3 FC / 3.5 LUX
0.8 FC / 9 LUX
1.2 FC / 13 LUX
2.4 FC / 25.5 LUX
1 m
3.28 ft
5 m
16.4 ft
15 m
49.5 ft
20 m
66 ft
10 m
32.8 ft
Ø 9.6 m
Ø 31.49 ft Ø 12.8 m Ø 41.99 ft
Beam Diameter
Ø 0.64 m Ø 2.09 ft Ø 3.2 m
Ø 10.49 ft
Ø 6.4 m
Ø 20.99 ft
Ø 6.4m / Ø 20.99ft
Ø 9.6m / Ø 31.49ft
Ø 12.8m / Ø 41.99ft
Ø 0.64m / Ø 2.09ft
Ø 3.2m / Ø 10.49ft
