Page 14
12
Samson AirLine
AH1

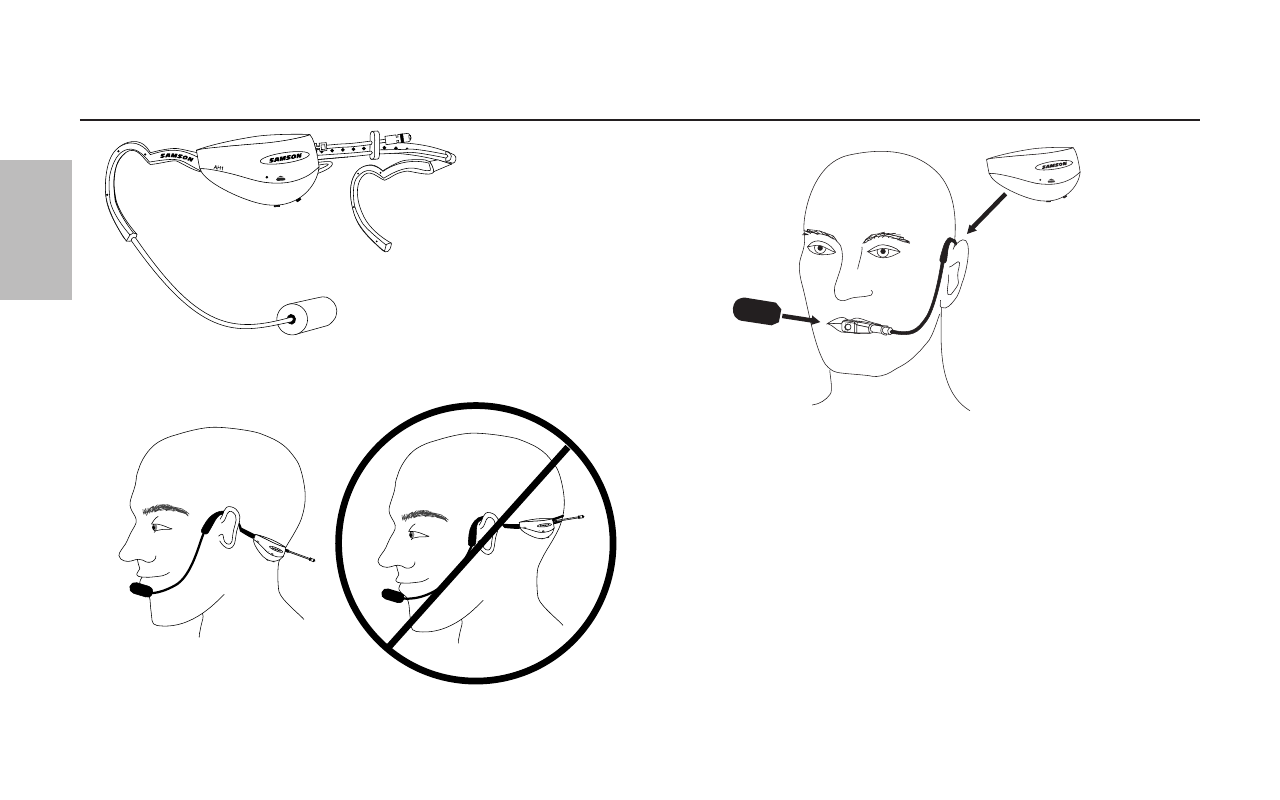

As shown in the illustration above, the correct way to wear your Q Series
Headset is over the ears, as you would wear a pair of eyeglasses. Because
the Q Series Headsets are specially designed to be used up close, be sure
to mount the microphone directly in front of your lips. To avoid feedback
problems, take care not to cover the mic capsule with your hand.
IMPORTANT NOTE: As shown in the illustration on the left, the rear
band of the headset should be positioned down at the base of the
neck, not high up on the back of the head.
AH1 transmitter with Samson Q series Headset Mic for perfor-
mance and fitness applications.
Right way
Wrong way
Guided Tour - AH1 Headset Transmitter
ENGLISH
