Page 10 20172-3-1006
Before you begin: Do not, handle these logs with your bare hands!
Always wear gloves to prevent skin irritation. After handling logs,
wash your hands gently with soap and water.
All Logs
The positioning of the logs is critical to the safe and clean
operation of this heater. Sooting and other problems may result if
the logs are not properly and firmly positioned in the appliance.

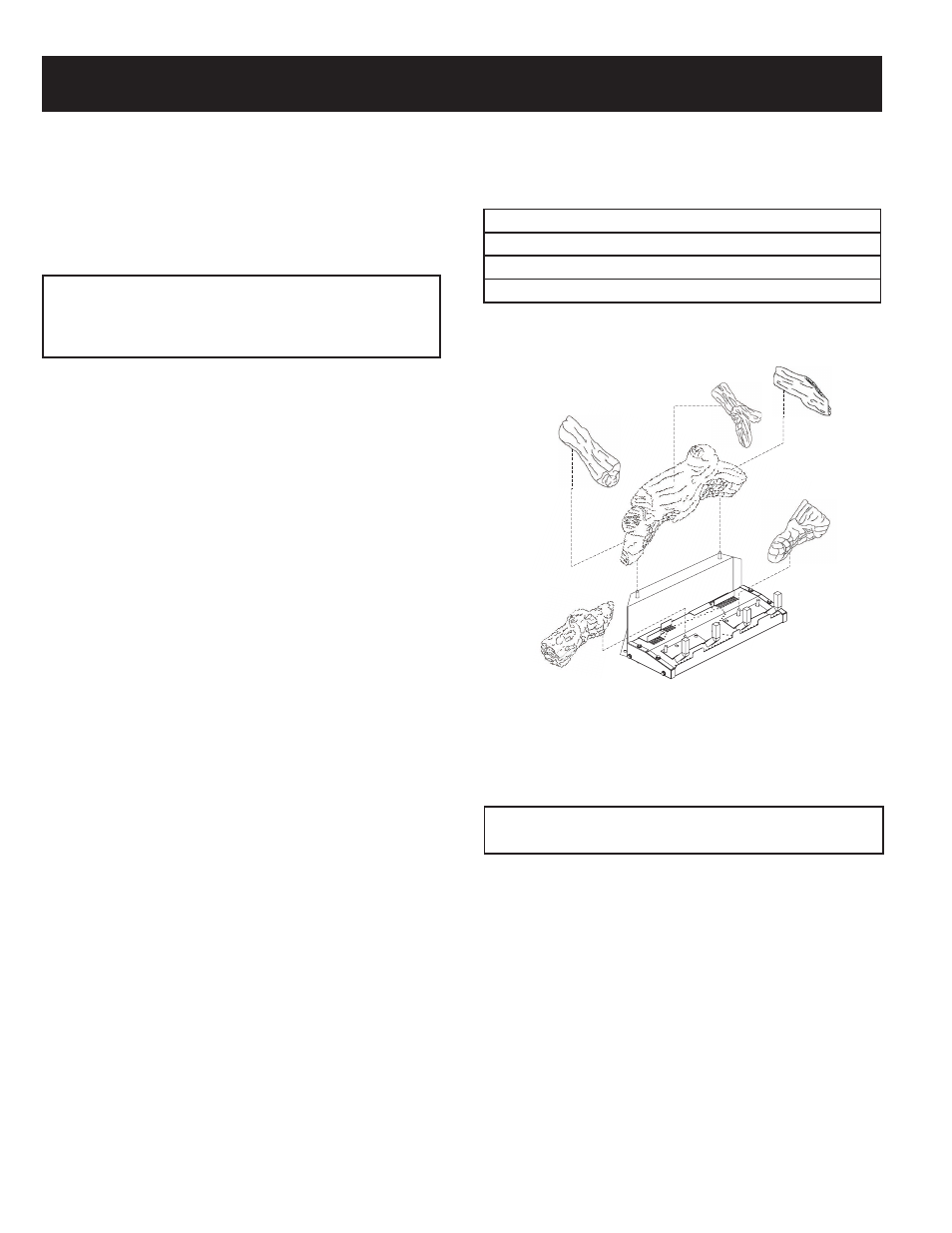

Refer to Figure 1 for the following warning.
Warning: Failure to position the parts in accordance with
this diagram or failure to use only parts specifically approved
with this appliance may result in property damage or personal
injury.
PROPER INSTALLATION SEQUENCE:
LS-(18,24,30)CS
(Figure 1)
1. Place rear (#1) log onto two (2) pins on rear log support.
2. Place left, front (#2) log onto two (2) left, front pins on burner
pan.
3. Place right, front (#3) log onto two (2) right, front pins on
burner pan.
4. Place Y Branch (#4) onto two (2) pins on rear log.
5. Place left, top log (#6) onto two (2) pins on rear log left.
6. Place right, top log (#5) onto two (2) pins on rear log right.
5. Compare the completed log installation with the appropriate
photo from pages 11 through 13. Review previous steps to
make any necessary adjustments.
6. Log placement is completed.
Attention: Do not use Figure 1 to order replacement logs. Refer
to Page 15 Parts List and Parts View to order logs for your
appropriate model number.
Apply loose material (glowing embers) per appropriate Installation
Instructions and Owner's Manual. Replacement of loose material
(glowing embers) must be purchased from Empire Comfort
Systems, Inc. Application of excess loose material (glowing
embers) may adversely affect performance of the heater.
WARNING: All previously applied loose material must be
removed prior to reapplication.
Replacement Loose Material (glowing embers) Part
Number
Note: A single layer of embers is to be used when applying
Platinum Bright Embers (alone or in combination with production
embers) to the burner.
Log Placement
LS-(18,24,30)CS
Figure 1
The following WARNING applies when log set is installed onto
an unvented gas burner assembly.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
1
2
3
4
5
6
LS-18C2S 15999
LS-24C2S 15970
LS-30C2S 15970
Platinum Bright Embers PE-20-1
CHARRED OAK SUPER SIZE LOG PLACEMENT
