Echo RM-210SB - Manual (Page 25)

G
RASS
T
RIMMER
/B
RUSH
C
UTTER
O
PERATOR
'
S
M
ANUAL
25

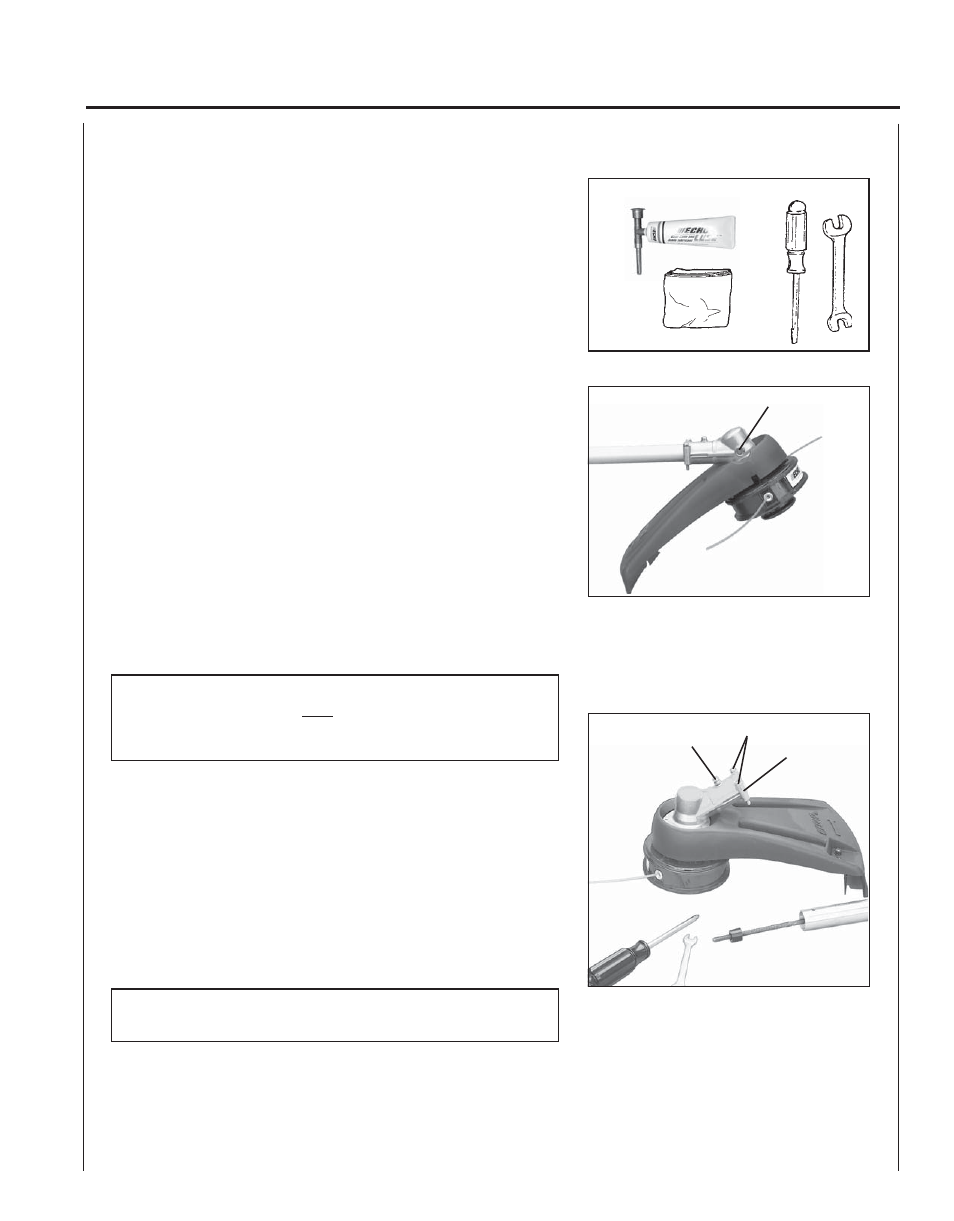

LUBRICATION
Level 1.
Tools Required: 13 mm Open End Wrench, Screwdriver, Clean rag,
Grease gun P/N 91016
Parts Required: ECHO
®
LUBE TM 8 oz. (P/N 91014) or Lithium Base
Grease.
Drive Shaft (Lower)
IMPORTANT
Lower and upper drive shaft must be lubricated with high tempera-
ture automotive grease every 25 hours of operation, otherwise
drive shaft assembly overheating and failure can result.
1. Loosen two (2) screws (B) and remove center locating screw (C).
Pull gear box and shield from drive shaft housing.
2. Pull flexible cable from the drive shaft housing, wipe clean and
re-coat with a thin coating [15 ml (1/2 oz.)] of ECHO
®
LUBE TM .
3. Slide the flexible cable back in the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and shield assembly.
B
C
A
Gear Housing
1. Clean all loose debris from gear box.
2. Remove plug (A) and check level of grease.
3. Add grease if necessary, DO NOT over fill.
D
IMPORTANT
Flat edge of washers (D) must be against drive shaft.
