PLANET IPX-1900 - Manual (Page 6)

12V DC 12V DC Power input outlet
Power Switch “|” power is on, “O” Power is off
Reset
(Rest Button) Push this button until 3 -5 seconds, and IP PBX will be
set to factory default configuration.
RS – 232 Port 9 pin RS232 Serial port, Data rates 57600 bits.
LAN
(Local Area network)
Connect to PC with Ethernet cable. 1 port allows your
PC or Switch/Hub to be connected to the IPBX through
a networking cable with RJ-45 connectors used on
10Base-T and 100Base-TX networks.
WAN
(Wide Area network)
Connect to the network with an Ethernet cable. This
port allows your IPBX to be connected to an Internet
Access device, e.g. router, cable modem, ADSL modem,
through a networking cable with RJ-45 connectors used
on 10Base-T and 100Base-TX networks.
Slot A/B 2 external slots with compliance FXO/FXS/FSL module.
FXS Port
(Modular IPX-19FS)
Connect to Phone with RJ-11 (Black) analog line. FXS
port was connected to your telephone sets, FAX, or
Trunk Line of PBX.
FXO Port
(Modular IPX-19FO)
Connect to PBX or CO line with RJ-11 (Write) analog
line. FXO port was connected to the extension port of a
PBX or directly connected to a PSTN line of carrier
Note: IPX-19SL 2-Port PBX Life Line Module IPX-1900 (1FXO, 1FXS)

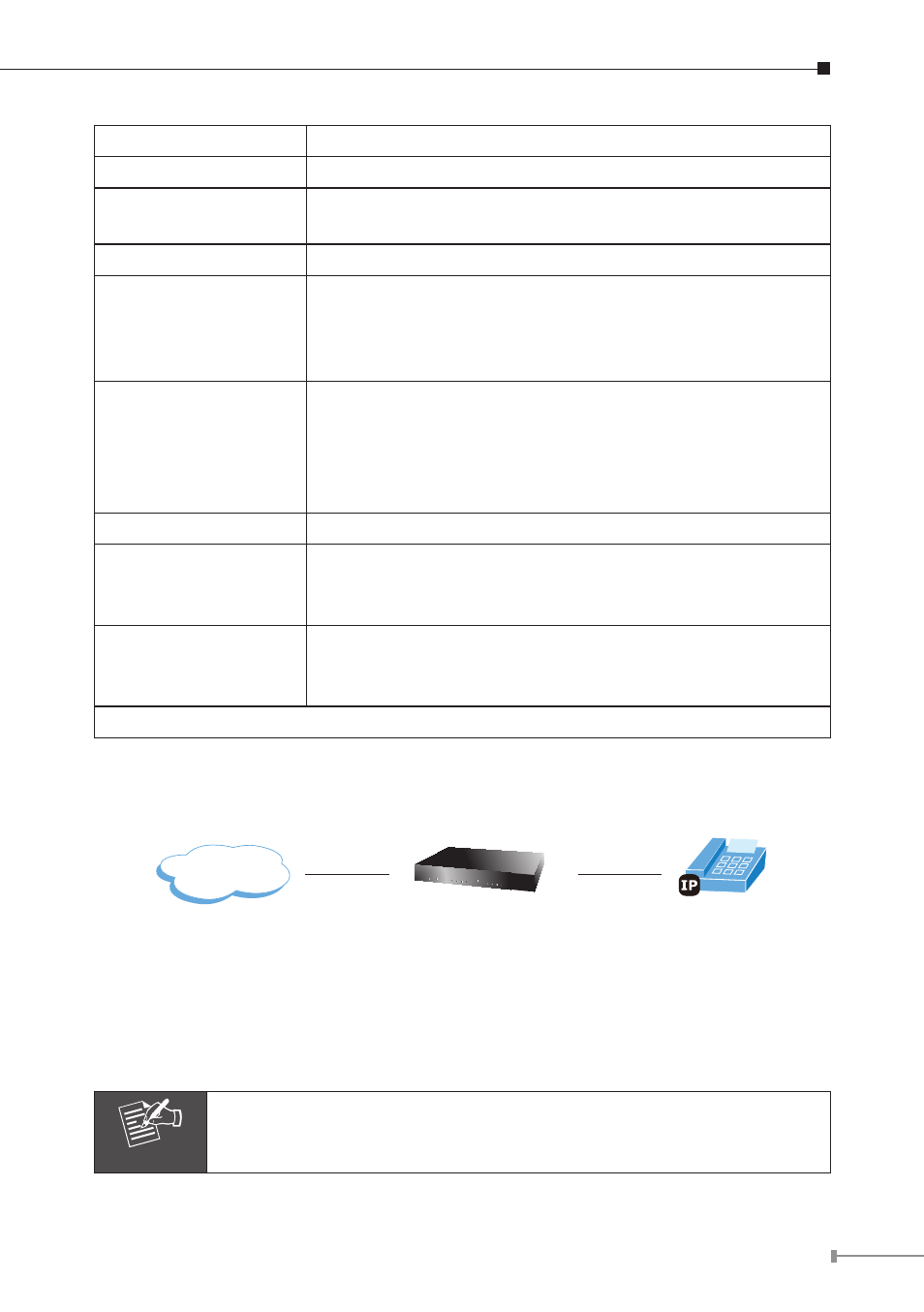

Table 2. Rear Panel description of IP PBX
Internet
Internet IPX-1900 IP Phone
Physical Installation
Step 1: Connecting Power AC Power (12V DC).
Note
Use only the power adapter shipped with the unit to ensure correct
functionality.
