3. Slide the top end of the bar into the top center point location to complete center support bar
installation. This will provide added stability to your frame and added tension to the material.
Installation
1. Locate your desired installation location with a stud finder (recommended) and mark the drill-hole
area of where the screen is to be installed.
2. Drill a hole with the proper bit size according to the wood screws included.
3. Line up the wall brackets with the drilled holes on the installation location and screw them in using
a Philips screwdriver.
Note: Use 2 wall brackets on diagonal sizes below 135”, and use 3 wall brackets on diagonal
sizes 135” and above.
4. Position the fixed frame screen onto the top wall brackets as shown in (fig. 9) and push down at
the center of the bottom frame to secure the installation.
5. The wall brackets allow flexibility by allowing the fixed frame screen to slide to the sides. This
is an important feature as it allows your screen is properly centered.
(7)

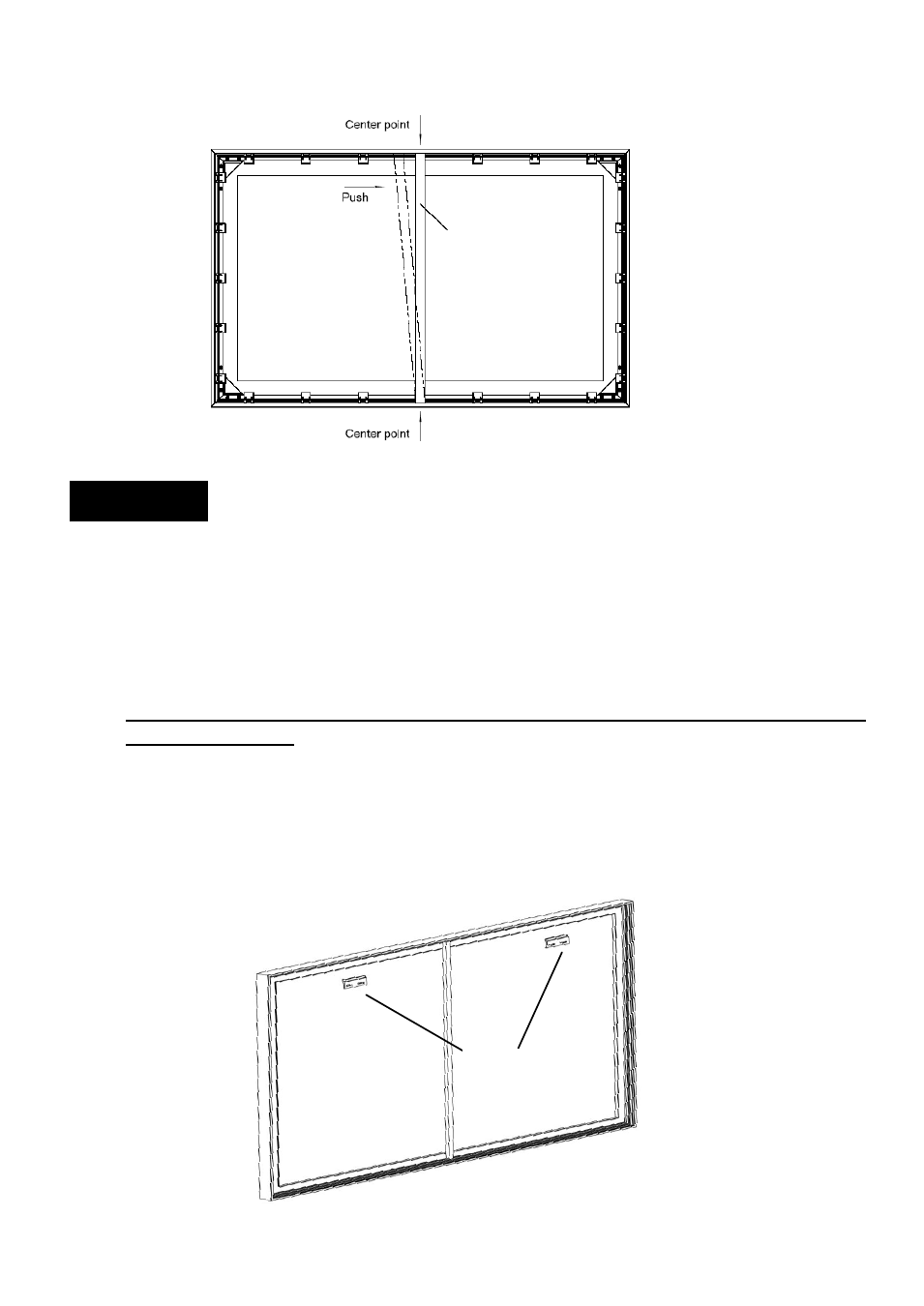

Center Support Bar
(Fig. 8)
(fig. 9)
Wall brackets
2 pcs
