24
PR167
Ha
Hb
8mm

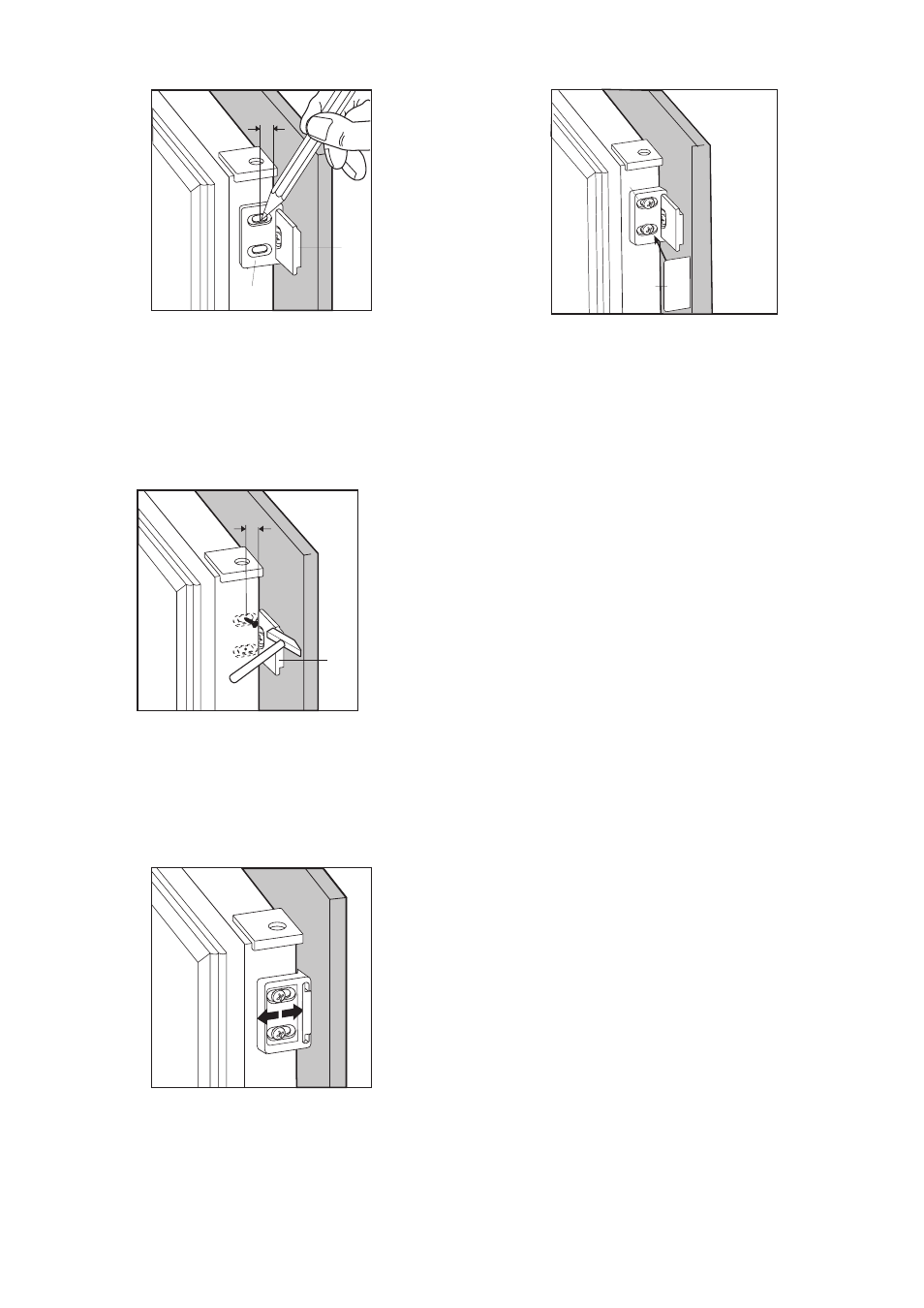

8. Open the appliance door and the furniture door at
90¡. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure.
PR168
Hb
10. Place the small square on the guide again and fix
it with the screws supplied.
Should the lining up of the furniture door be
necessary, use the clearance of slots. At the end
of operations, it is necessary to check if the door
of the furniture closes properly.
PR167
Ha
8mm
K
9. Remove the brackets and mark a distance of
8 mm from the outer edge of the door where the
nail must be fitted (K).
11. Fix cover (Hd) on the small square (Hb) until it
clips into place.
PR167/1
Hd
Hb
