28

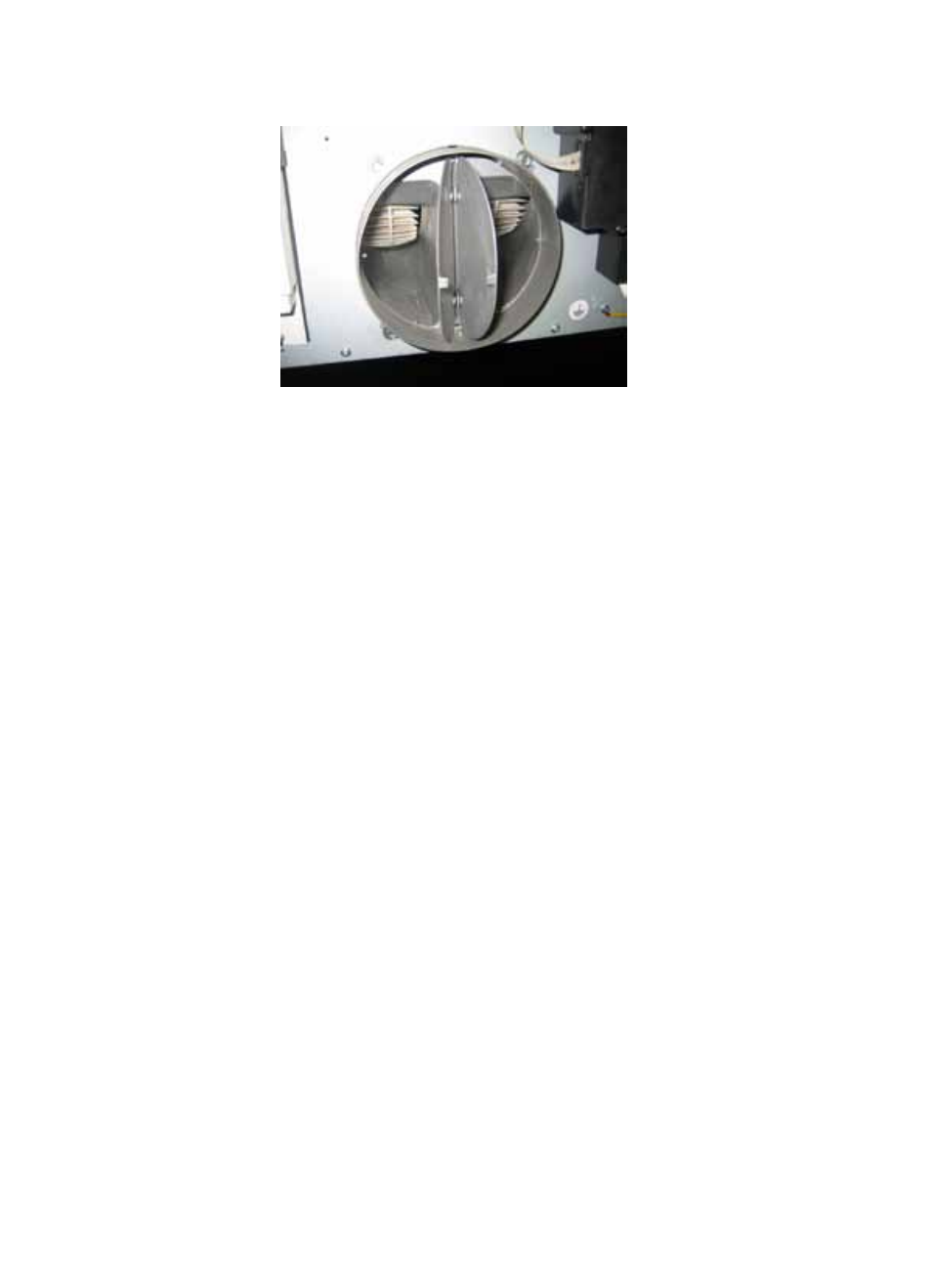

Check valve blockage
Warning: Before connecting the air exhaust hose, make sure that the check valves are free to
turn over freely.
In filtering application that the stop valve doesn’t permit the entrance of wind and exhausted
air.
Filtering version
Filtering version
In the case an exhausting hole is not possible, the hood can be used in filtering version. For
this mode charcol filters are to be fitted inside the hood. Filtered air will be evacuated in the
kitchen trough a duct that conveys the air on a side of the cabinet.
- REMOTE MOTOR INSTALLATION
It is possible to install the motor in a remote position from the cooker hood, but it is necessary
to order the DHK900 - 989580001 kit.
