Empire Comfort Systems CIVF-25-2 - Manual (Page 8)

Page 8 R-3451

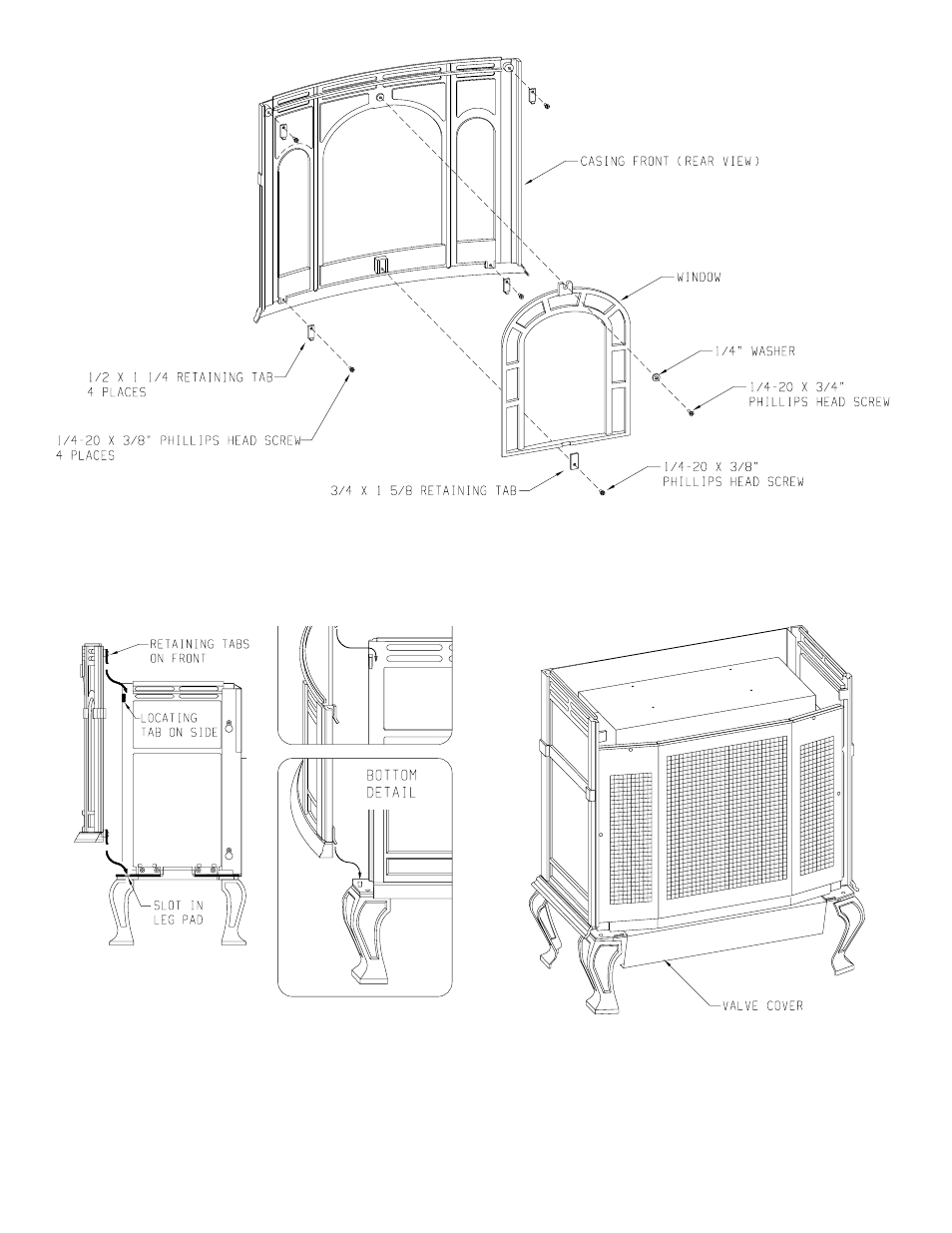

Figure 8
Figure 9
Stone Inlay Replacement of Standard Grille Top
Whenever the standard grille top is replaced with a stone inlay you must
install the top shield and heat shield, which are provided with the stone
inlay.
Installation of Optional Stone Inlay
1. Remove left grille, center grille and right grille from casing top.
2. Remove casing top from outer casing.
Figure 7
