Elektra Beckum Cool 401 User Manual
Page 13
13
11.02
Part 3
Description
6
6
7
8
11
9
12
1
2
3
4
5
10
1
2

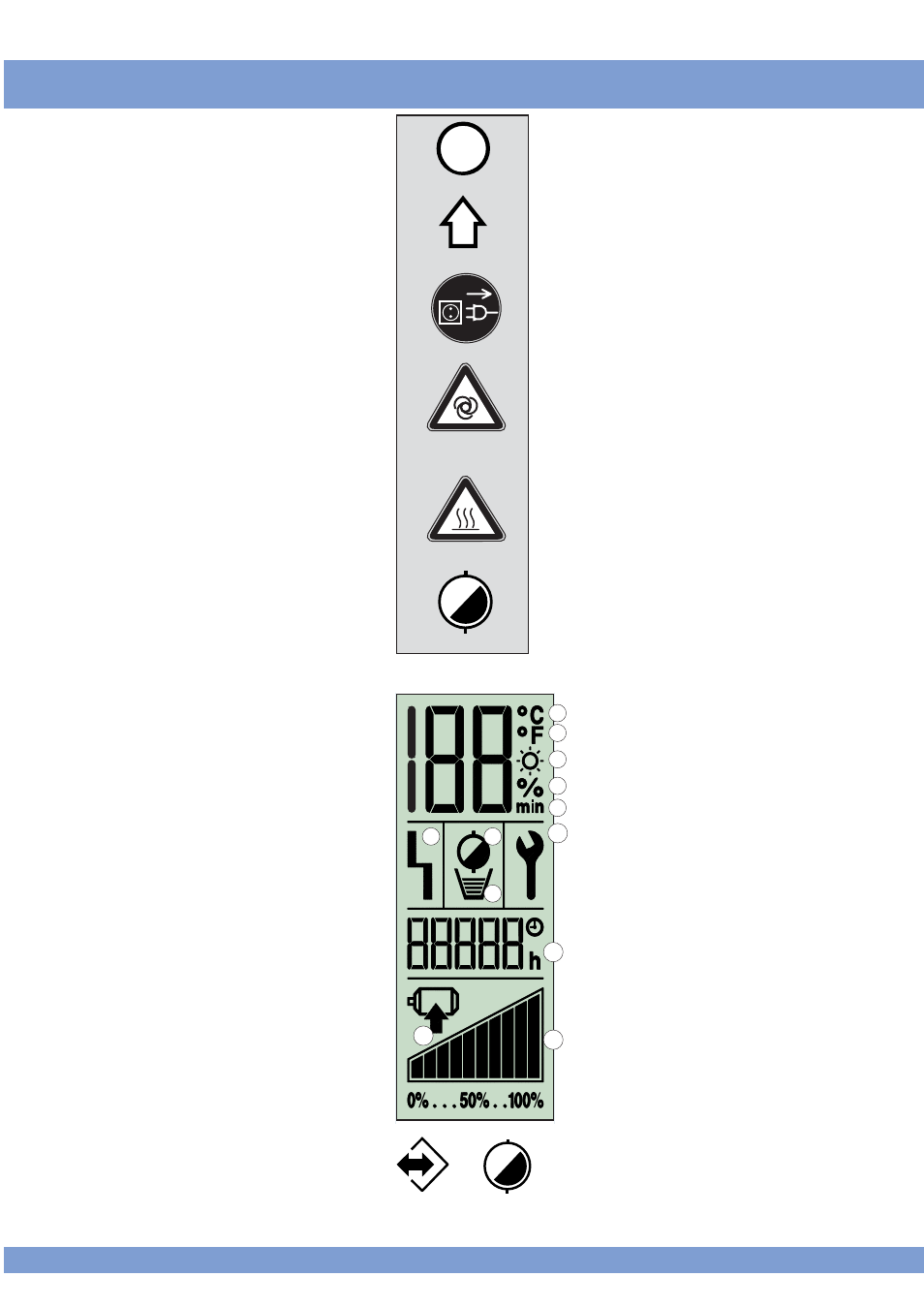

3.3.1
Symbols
Fig. 7: Symbols
general
3.3.2
electronic regulator
symbols
Fig. 8: Symbols
electronic regulator
Fig. 9: electronic regulator
operation
Operation switch “off”.
Compressed air inlet or outlet.
Before executing maintenance
work at the CA-dryer, the unit must
be disconnected from the power
supply.
If the CA-dryer is not disconnected
the risk of injuries is given, due to
free rotating fan wings.
The refrigerant compressor heats
up during operation so that there
is a danger of burns .
Condensate drain
1
Temperature in °C
2
Temperature in °F
3
Normal- or summer opera-
tion
4
Percentage running time of
CA-dryer
5
Time to next condensate
draining
6
Failure indication
7
Condensate drain
8
Condensate tank
9
Maintenance interval ex-
ceeded
10
Counter working hours
11
Operation indication refriger
ant compressor
12
Actual energy consumption
1
Data input key
2
Condensate drain key for
electronic regulated drain
