AND050VL-LED-KIT
Electrical
Symbol Conditions Input/Output Min. Typ. Max. Unit
Vin DC (+V)
Input
12 12 15 V
Iin
DC (+12V)
– TBD – mA
Pin – TBD – W
Input/Output Terminals - CON7
TTL Connector: MOLEX 87758-30 or compatible
Pin No. Symbol Pin No. Symbol Pin No. Symbol Pin No. Symbol Pin No. Symbol
1 CLK 7 R2 13 G1 19 E0 25 GND
2 HS 8 R3 14 G2 20 B1 26 DEN
3 VS 9 R4 15 G3 21 B2 27 VCC
4 GND 10 R5 16 G4 22 B3 28 VCC
5 R0 11 GND 17 G5 23 B4 29 L/R
6 R1 12 G0 18 GND 24 B5 30 U/D
Input/Output Terminals - CON2
Audio In Connector:JST B4B-XH-A
or compatible
Pin No. Symbol Pin No. Symbol
1 GND 3 GND
2 L-IN 4 R-IN
Input/Output Terminals - CON8
Video & S-Video Connector: JST-B5B-PH-K-S or compatible
Pin No. Symbol Pin No. Symbol
1 GND 4 Y
2 Video 5 C
3 GND

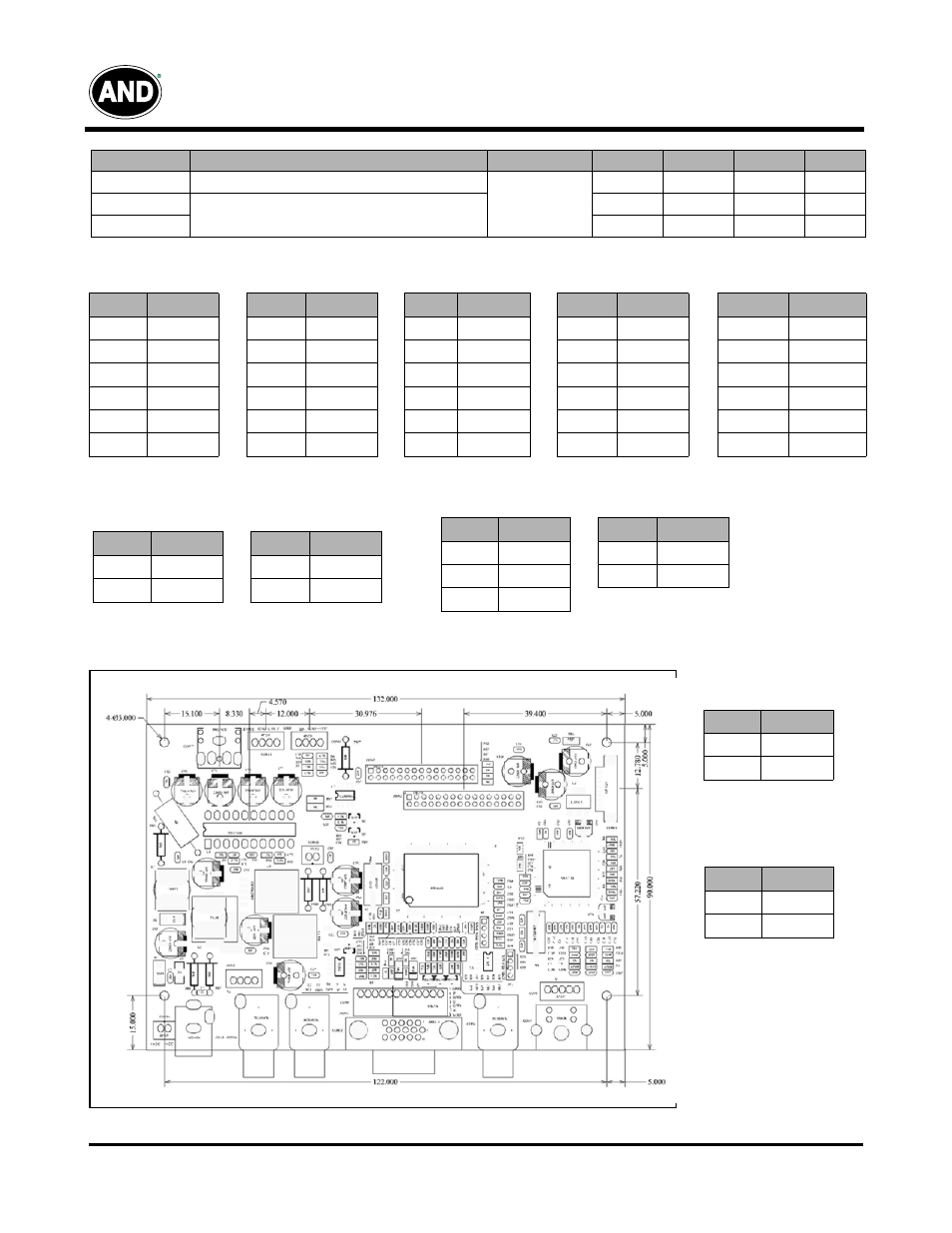

Driver Board Outline Drawing
Input/Output Terminals
- CON13
Audio In Connector
Pin No. Symbol
1 R-IN
2 GND
Input/Output Terminals
- CON10
Audio In Connector
Pin No. Symbol
1 L-IN
2 GND
