22
UA ADAPTER CABINET
The UA adapter cabinet is designed to be used in conjunction with the AH AIR HANDLER to allow a
free standing (vertical discharge) installation. The UA cabinet is shipped completely assembled and ready
for installation.
The return air opening can face either left or right by exchanging the front filter door and rear filter block-
off assemblies.
The AH AIR HANDLER is then placed on the UA adapter cabinet, inlet side down.
The UA cabinet is equipped with a permanent washable air filter.

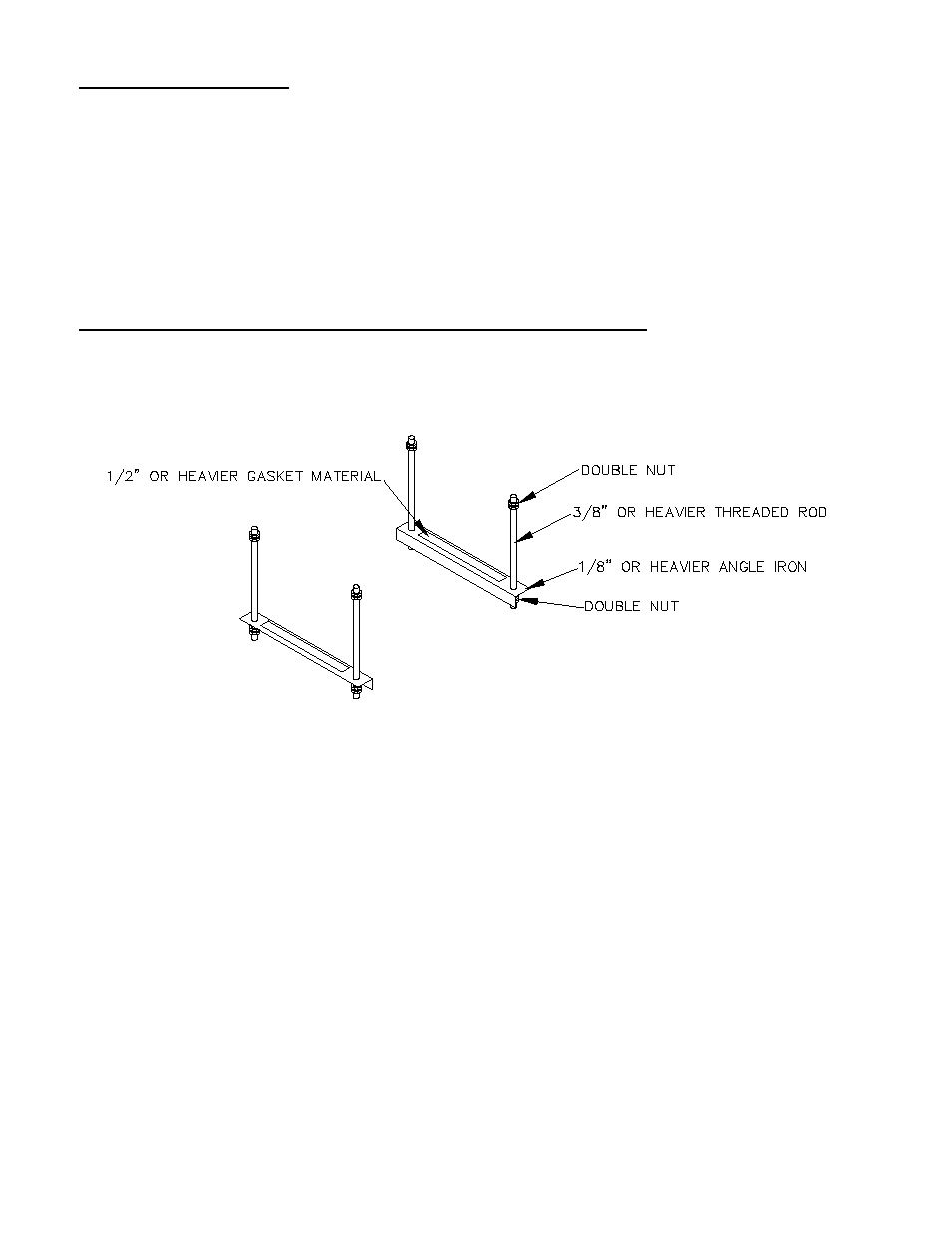

AH AIR HANDLER RECOMMENDED SUSPENSION PROCEDURE
The detail below is the proper and safest way to suspend the AH. These components should be easily
found at your local hardware store.
FIG M
