Thermo Pride Air Handlers ECM Blower 13/14 SEER (AH2) User Manual
Page 10
8
INSTALLATION OF THE HOT WATER COIL:
1. Remove top door of air handler.
2. Slide hot water coil's side hanger brackets into coil channel (retaining channel) in the air handler. See
Figure F.
3. Push coil into unit until the coil is stopped by the back casing.
4. Cut out appropriate holes in insulation, realign top door and secure into place.
5. Make appropriate hydronic connections to inlet (blower side) and outlet (duct side) of coil and braze
into place.
6. Seal connections through panel with duct sealer or equivalent.

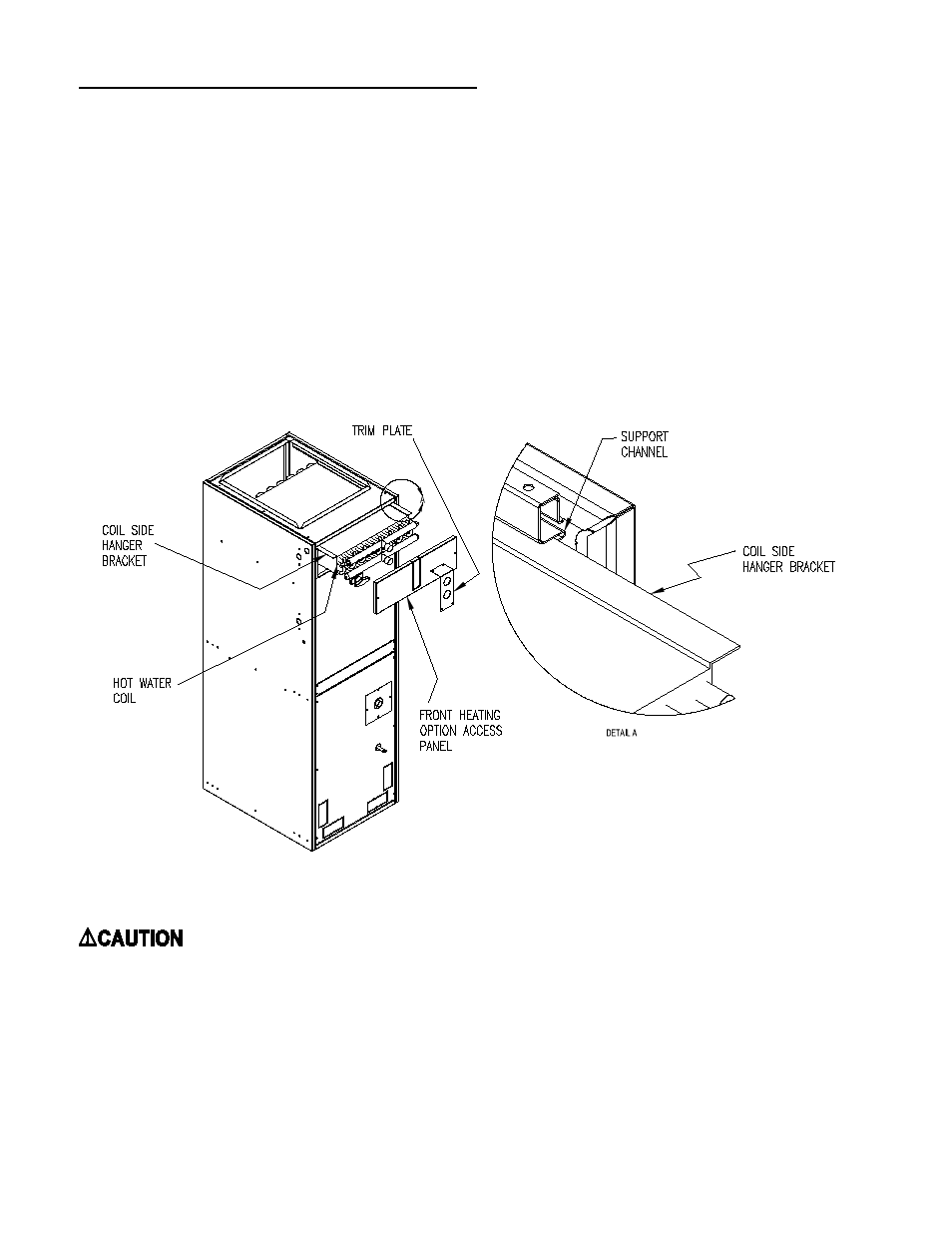

Figure F
: If drilling or screwing into panel or plate is necessary, make certain drill does not penetrate
into any part of evaporator coil or hot water coil. Personal injury and/or property damage may result.
