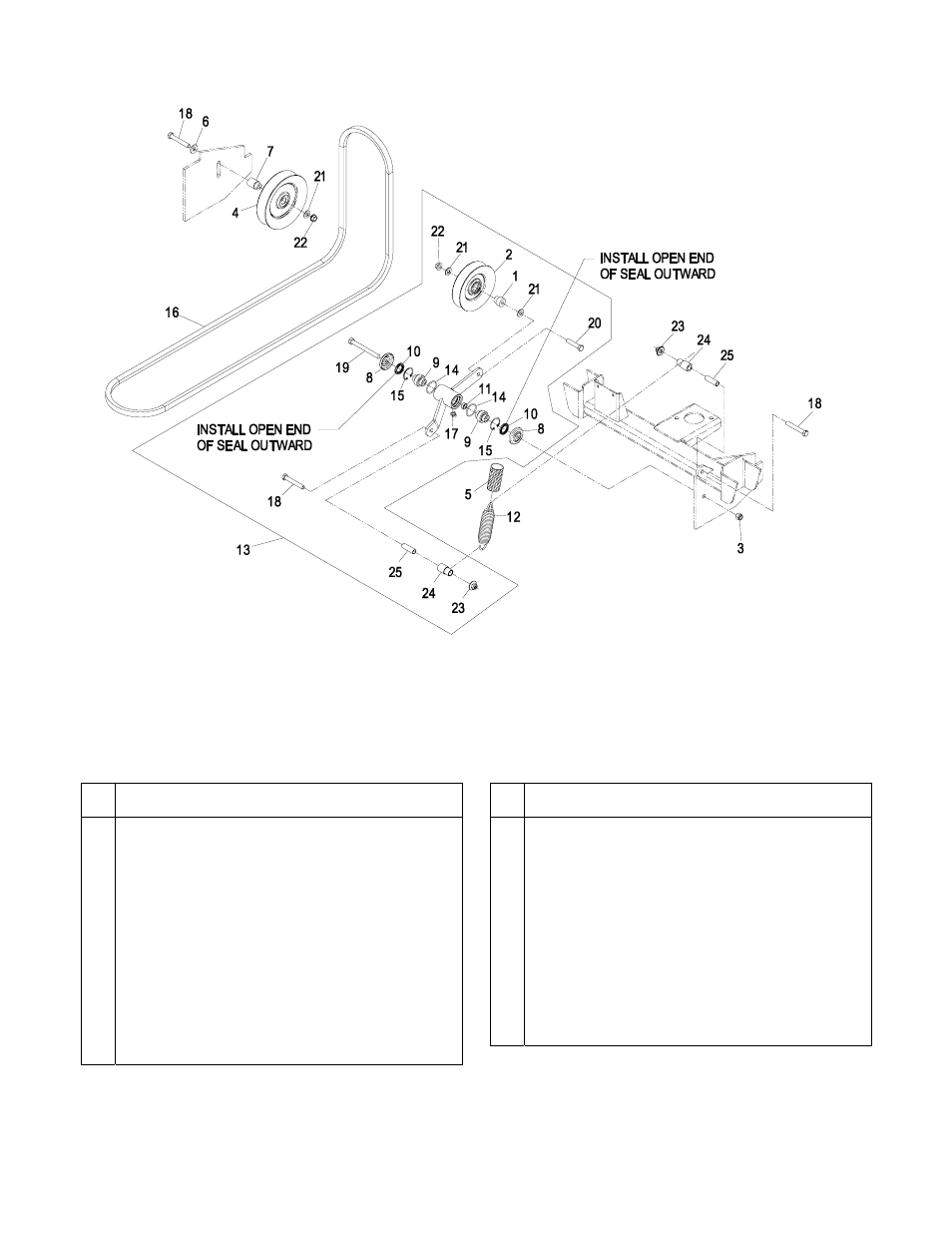

ENGINE DECK GROUP
-17-
Item
Part No.
Description
Qty.
1 1-603496 Bushing, Idler......................................... 1
2 1-603805 Pulley, Idler ............................................ 1
3 3296-39 Nut, Nyloc 3/8-16 ................................... 1
4 1-633166 Pulley, Idler ............................................ 1
5 116-0932 Dampener, Spring.................................. 1
6 98-5975 Washer, Spring Disc 3/8 ........................ 1
7 103-2627 Bushing, Idler......................................... 1
8 103-2916 Guard, Top............................................. 2
9 103-3504 Bearing, Spherical.................................. 2
10 103-3506 Seal, Single Lip...................................... 2
11 103-5677 Spacer ................................................... 1
12 116-0608 Spring .................................................... 1
13 103-9250 Kit, Idler Arm (109-3194-03) W/Brgs. ..... 1
Item
Part No.
Description
Qty.
14 106-7159 O-Ring ................................................... 2
15 32120-10 Ring, Retaining ...................................... 2
16 109-4199 Belt, Mule Drive ..................................... 1
17 302-40 Zerk, 90° 1/4-28..................................... 1
18 323-12 Screw, HH 3/8-16 x 2 1/2....................... 3
19 323-42 Screw, HH 3/8-16 x 3 3/4....................... 1
20 323-9 Screw, HH 3/8-16 x 1 3/4....................... 1
21 3256-24 Washer, 3/8 SAE ................................... 3
22 3290-357 Nut, Whizlock 3/8-16 ............................. 2
23 104-8301 Nut, Nyloc 3/8-16 Flg ............................. 2
24 109-8866 Bushing, Plastic ..................................... 2
25 109-8754 Spacer ................................................... 2
