30" Electric Double Wall Oven Specifications
•
Product Weight – 328 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 8.0 / 6.0 kW
•
Amps @ 240 / 208 Volts = 33.3 / 28.9 Amps
•
Always consult local and /or national electric codes.
•
Minimum 23-1/4" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
Minimum 24" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 400 Lbs.
•
Base must be level and cabinet front must be square with finish-cut
bottom edge.
•
Double Wall Ovens are NOT approved to be used in stackable or
side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Electric Double Wall Oven
E30EW85GSS designer series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway
•
Augusta, GA 30907
•
1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
electroluxicon.ca
E30EW85GSS 01/09
© 2009 Electrolux Home Products, Inc.
Printed in the U.S.A.

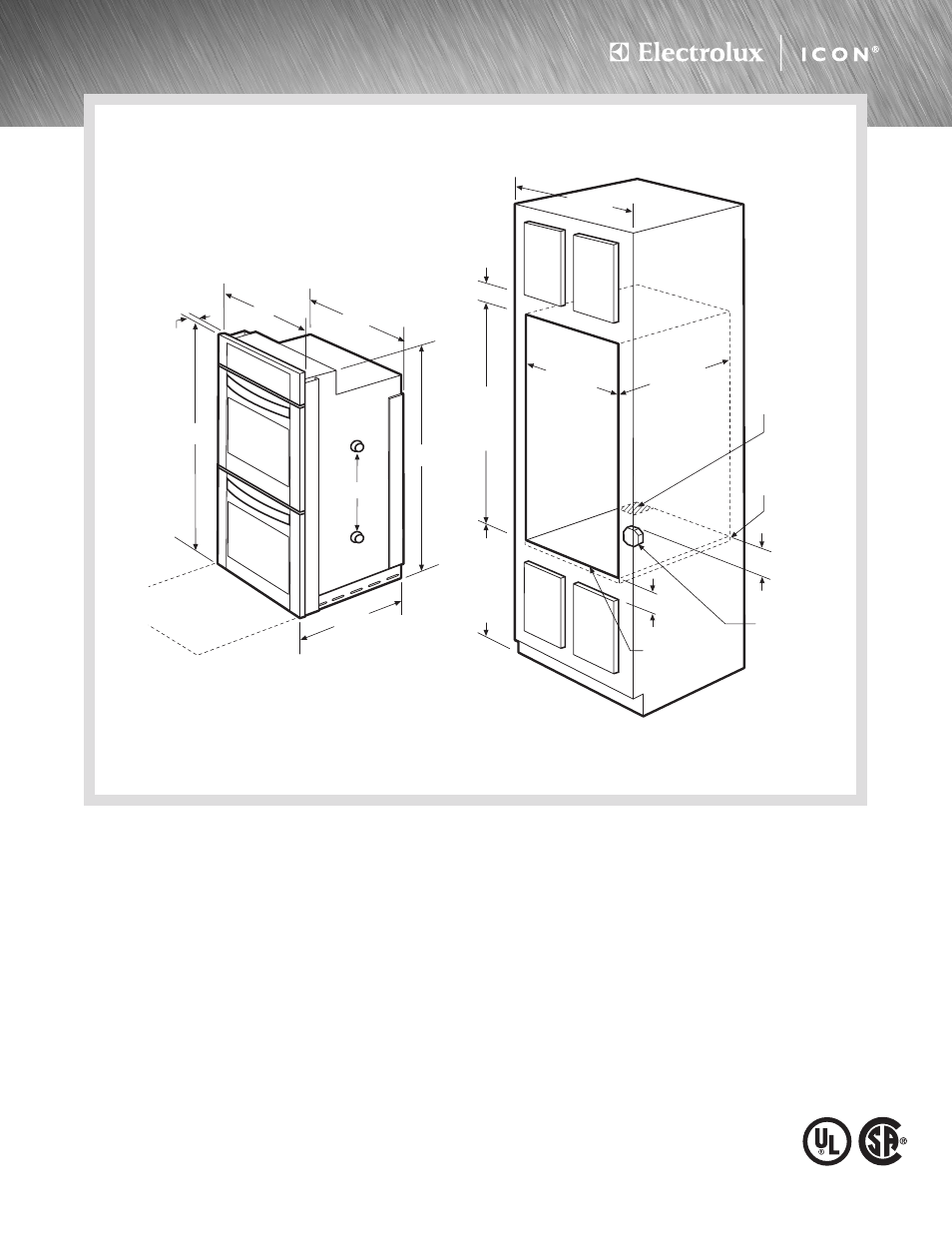

*Critical dimension –
MUST be applied
51
1
/
4
"
28
1
/
4
"
52
9
/
16
"
Spacers
Allow at least
23
1
/
4
" clearance
for door depth
when open
24
5
/
8
"
30"
7
/
8
"
3" max.
Electrical
junction
box location
4" x 4"
opening
to route
armoured
cable
2" min.
28
1
/
2
" min.
29" max.
24" min.*
(critical
dimension)
1
1
/
2
"
min.
11
1
/
2
"
suggested
distance
4
1
/
2
"
min.
required
51
7
/
16
"
min.
52
3
/
16
"
max.
Full base
required
to support
400 lbs.
Bottom cutout
edge must be
finish cut
30" min.
