Power Spot 700 CMY II
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726

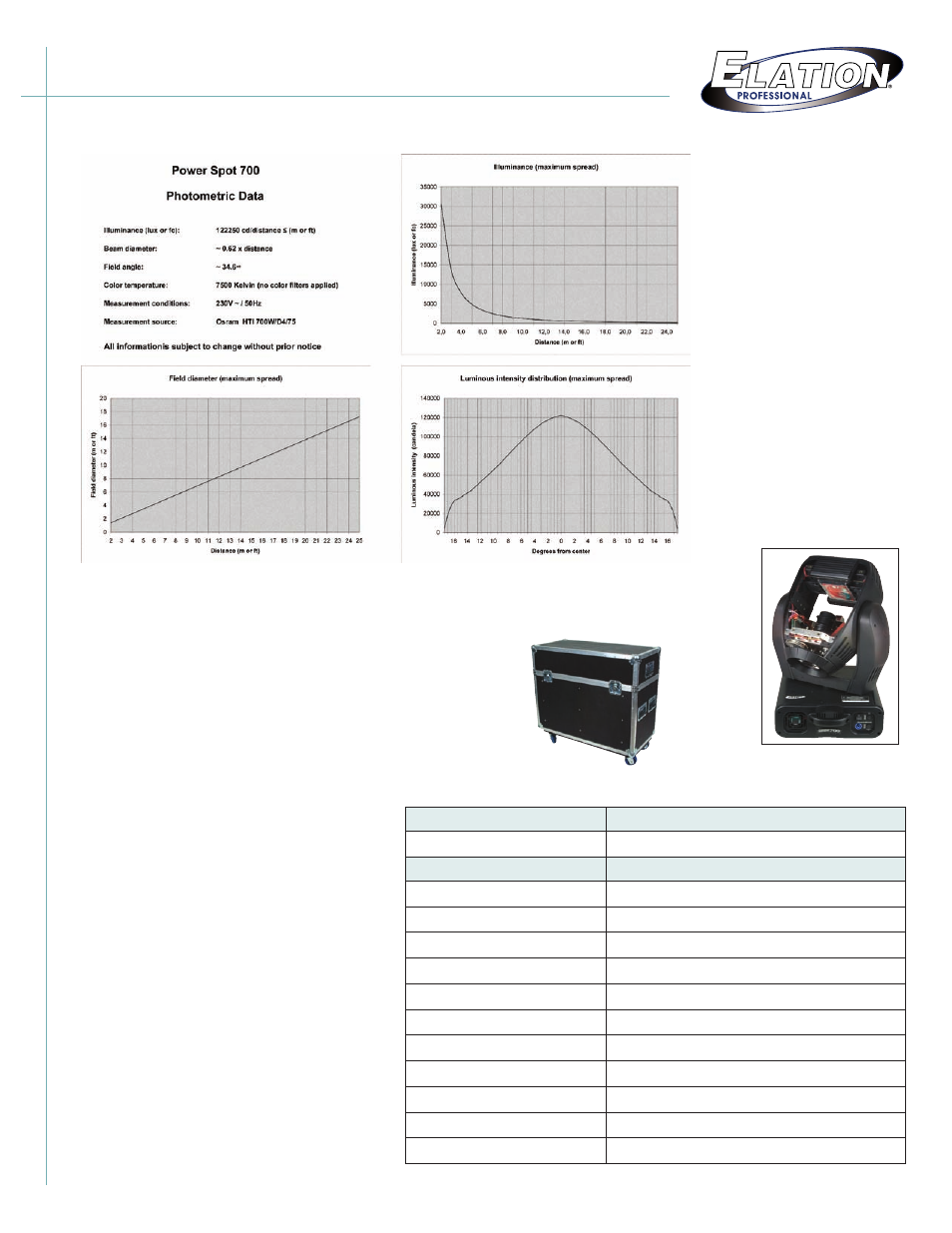

PHOTOMETRICS
DMX TRAITS
Channel 1 - Pan
Channel 2 - Pan fine
Channel 3 - Tilt
Channel 4 - Tilt fine
Channel 5 - Color 1(fast)
Channel 6 - Cyan
Channel 7 - Magenta
Channel 8 - Yellow
Channel 9 - Gobo 1 (indexed)
Channel 10 - Gobo 1 (position/rotation)
Channel 11 - Gobo 2 (fast)
Channel 12 - Shutter
Channel 13 - Dimmer
Channel 14 - Focus
Channel 15 - Zoom
Channel 16 - Frost
Channel 17 - Prism
Channel 18 - Iris
Channel 19 - CTO
Channel 20 - Effect wheel swing
Channel 21 - Effect wheel (position/rotation)
Channel 22 - Special
Channel 23 - Movement
Channel 24 - Speed Pan/Tilt
Product Order Code Description
POWER SPOT 700CMY II 700W moving head black
Accessories Order Code Description
25-022-1094 Optional animation wheel (leaves)
25-022-1096 Optional animation wheel (bricks)
25-022-1098 Optional animation wheel (stars)
25-022-1095 Optional animation wheel (fans)
ZB-MSR700/SA/DE Philips Gold 700W lamp double ended
23-001-1202 Hanging Bracket
PRO CLAMP 500Kg 2” wrap around aluming clamp
TRIGGER CLAMP 500Kg 2” aluminum J clamp
DRC 700 Dual road case
DRC 700PRO Dual road case pro
SRC 700 Single Road case
Allows easy access to key
components
MODULAR DESIGN
DRC 700
Road Case for
2 x Power Spot 700
(Sold separately)
