INSTALLATION
4 Video Splitter DVI Installation and Operations Manual
Installation
Installing the Video Splitter DVI is a very simple and straight forward process.
It is recommended that all equipment be powered off to start.
Connect your DVI or VGA video source (PC, Set-Top Box, DVD Player, etc)
to the DVI-IN connector (DVI-I Female) on the rear panel. If you are using a
VGA video source, a VGA to DVI adapter must be used.
Next connect your DVI video monitor cables to the DVI-I connectors on the
rear panel labeled Output x.
Finally, connect the power adapter to the VideoSplitter DVI unit, turn on all the
monitors and boot the computer last. You should see the boot-up sequence
on all monitors.

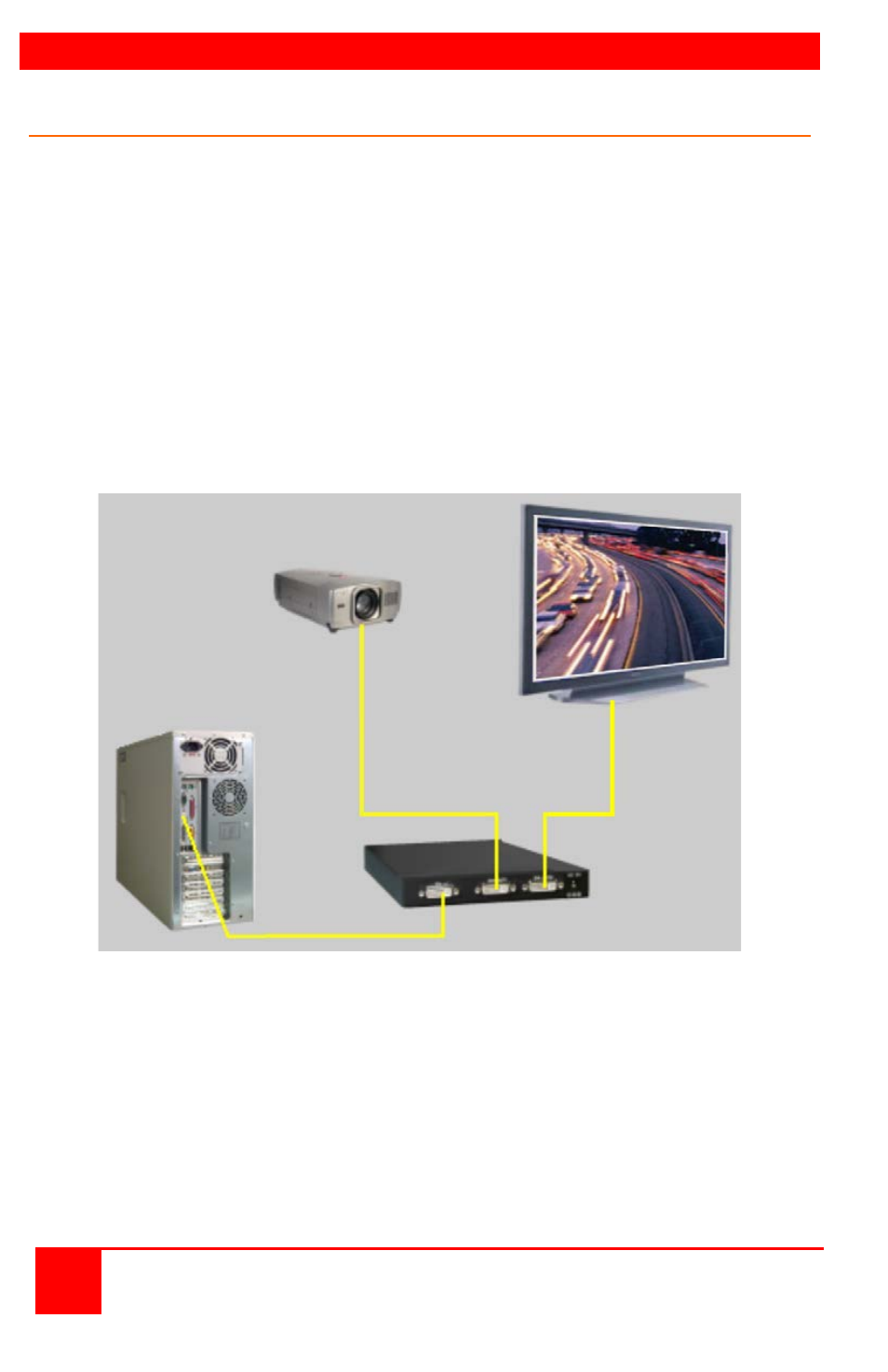

Figure 2. Basic Installation
Projector
DVI Monitor
