HOW TO MAINTAIN
NOTE: Turn off the power switch and unplug the electrical cord to service cleaning nozzles.
C. Cleaning the Carpet Shampooer/Extractor’s Suction Cover
1. Remove the screws from each side
of the suction cover.
2. Lift the suction cover off and clean
the area of dirt and lint.
3. Replace the suction cover by sliding
the tabs on top of the suction cover
into the top slots on the hood. Make
sure the suction cover gasket is in
place on the unit before replacing
cover.
4. Align one of the screw holes in the
suction cover, hood and base then
secure with screw. Also complete
this step for second screw hole.
D. Cleaning the Carpet
Shampooer/Extractor’s
Plunger, Boot Seal and Filter
1. Remove the clean water solution tank.
2. Remove the Plunger, Boot Seal and Filter
Assembly by lifting up the Boot Seal. This will
pull out the Plunger, Boot Seal and Filter
Assembly (see Figure 1).
3. Remove the Reservoir Filter and clean it by
removing any debris and rinsing with water.
4. Reinsert the Filter on the Plunger stem and
place the Assembly directly into the reservoir.
Install this assembly into the reservoir by
pressing down on the top of the plastic plunger.
Do not press down on the rubber boot seal.
IMPORTANT! Make sure the plunger stem
is placed into the hole in the
bottom of the reservoir for a
secure fit (see Figure 2).
5. Replace the Clean Water Solution Tank back
onto the carpet shampooer/extractor unit.

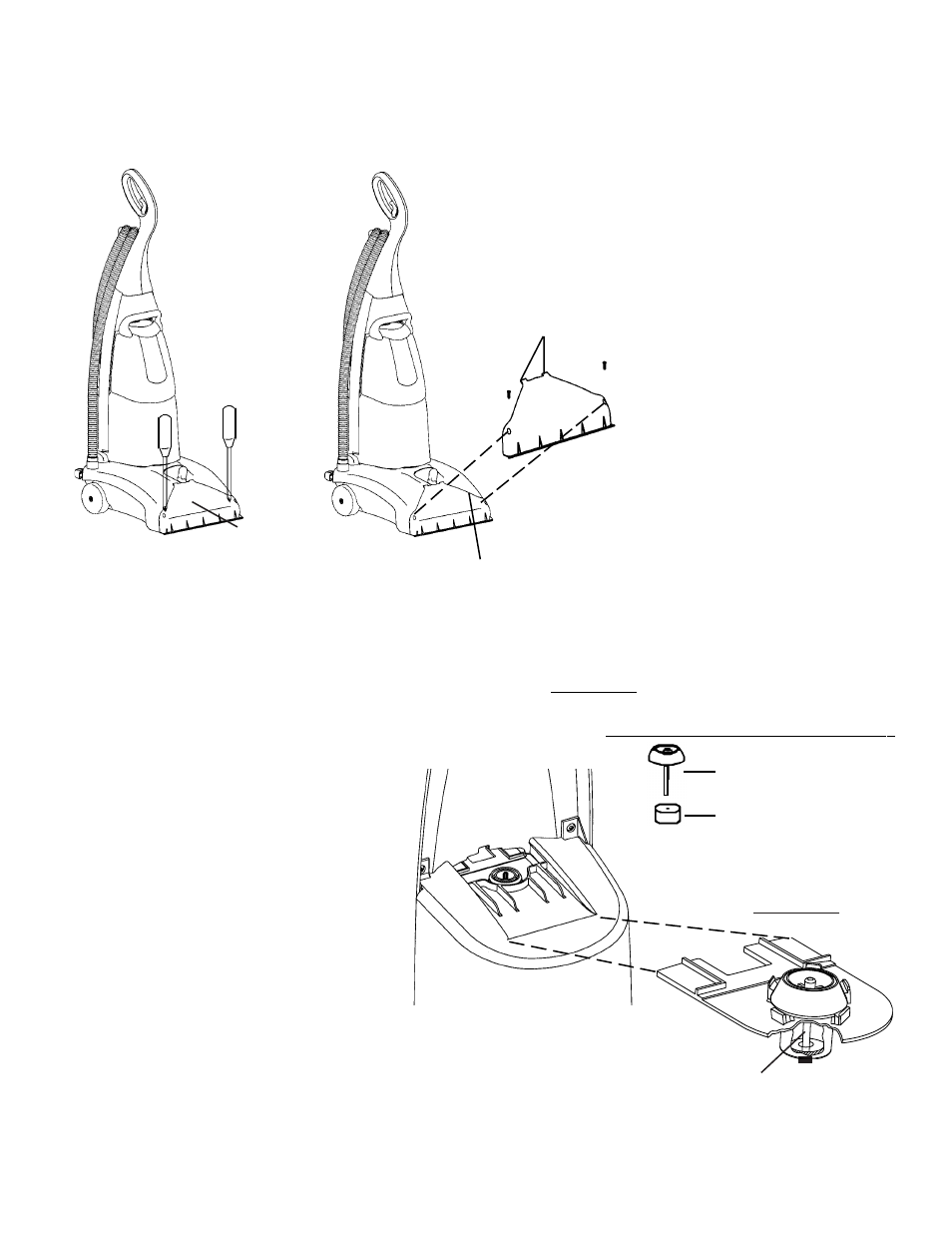

Suction
Cover
Boot Seal
Plunger Stem Assembly
Reservoir Filter
Correct installation
of assembly
FIGURE 1
FIGURE 2
Plunger, Boot Seal and Filter Assembly
Tabs
Suction Cover Gasket
(around rim of suction
cover area on unit)
