PD8 Series Explosion-Proof Instrument Supplemental Manual

30

MOUNTING DIMENSIONS

All units: inches (mm)

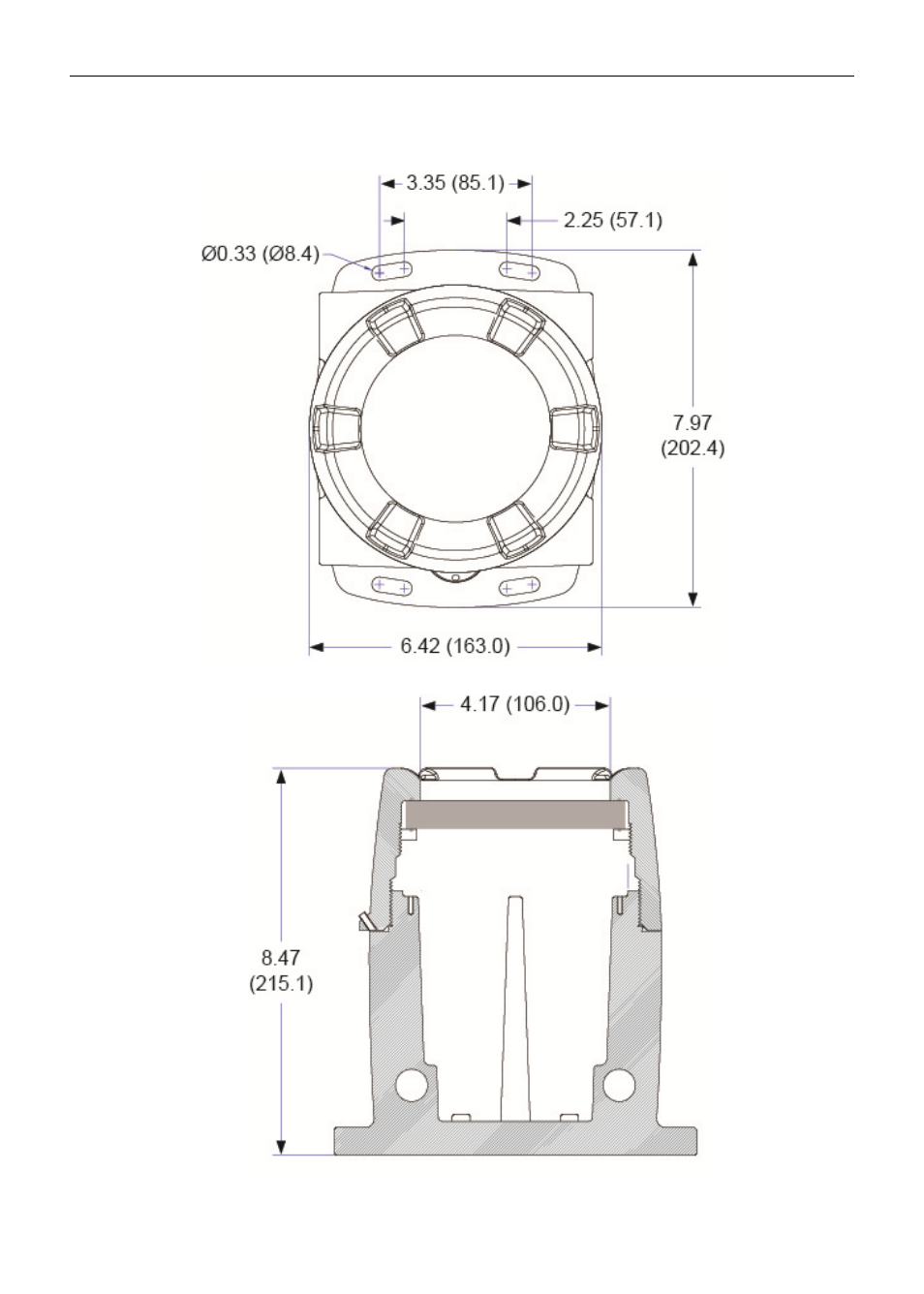

Figure 12: Enclosure Dimensions – Front View

Figure 13: Enclosure Dimensions – Side Cross Section View
